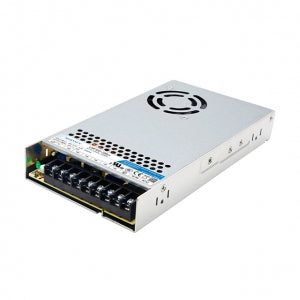

Mornsun LMF320-23B48 AC/DC 320W Enclosed Switching Power Supply

Mornsun LMF320-23B48 AC/DC 320W Enclosed Switching Power Supply

The LMF320-23B48 is a 48V, 321.6W enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 85-305VAC or 120-430VDC, accepts AC or DC input (dual-use of same terminal), an operating temperature range of -30℃ to +70℃, built-in active PFC function, high I/O isolation test voltage of up to 4000VAC, output short circuit, over-current, over-voltage, and over-temperature protection, LED indicator for power on, built-in DC fan, and emissions that meet CISPR32/EN55032 CLASSB.

The LMF320-23B48 is a versatile and reliable power supply that can be used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

check out : Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF320-23B48 AC/DC 320W Enclosed Switching Power Supply

Specifications
