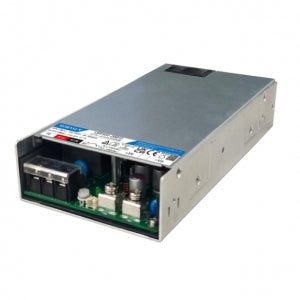

Mornsun LMF500-20B24 AC/DC 500W Enclosed Switching Power Supply

Mornsun LMF500-20B24 AC/DC 500W Enclosed Switching Power Supply

The LMF500-20B24 is a 500W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-264VAC, a DC output voltage of 24VDC, and a DC output current of 20.9A. The power supply is also equipped with a power factor correction (PFC) function, which helps to improve the power efficiency of the device.

The LMF500-20B24 is a cost-effective and reliable power supply that is suitable for a wide range of applications, including industrial, LED, streetlight control, electricity, security, telecommunications, and smart home.

Features:

• Universal AC input voltage of 80-264VAC
• DC output voltage of 24VDC
• DC output current of 20.9A
• Power factor correction (PFC) function
• High efficiency
• Low no-load power consumption
• High reliability
• Double or reinforced insulation
• Excellent EMC performance
• Meets IEC/EN/UL62368, IEC/EN60601, EN60335, GB4943, EN61558 standards

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF500-20B24 AC/DC 500W Enclosed Switching Power Supply

Specifications
