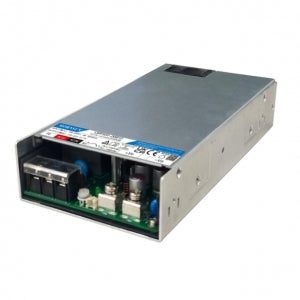

Mornsun LMF500-20B36 AC/DC 500W Enclosed Switching Power Supply

Mornsun LMF500-20B36 AC/DC 500W Enclosed Switching Power Supply

The LMF500-20B36 is a 500W enclosed AC/DC switching power supply from Mornsun. It features a universal input voltage of 80-264VAC or 110-370VDC, and can be used with either AC or DC input. The power supply has a high efficiency of up to 93%, and is equipped with active PFC to help reduce power consumption and improve power factor. The LMF500-20B36 also features a wide operating ambient temperature range of -30 to +70 degrees Celsius, and is protected against short circuit, overcurrent, overvoltage, and overtemperature.

Features

• Universal input voltage of 80-264VAC or 110-370VDC
• Accepts AC or DC input (dual-use of the same terminal)
• High efficiency of up to 93%
• Active PFC to help reduce power consumption and improve power factor
• Wide operating ambient temperature range of -30 to +70 degrees Celsius
• Protected against short circuit, overcurrent, overvoltage, and overtemperature

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LMF500-20B36 AC/DC 500W Enclosed Switching Power Supply

Specifications
