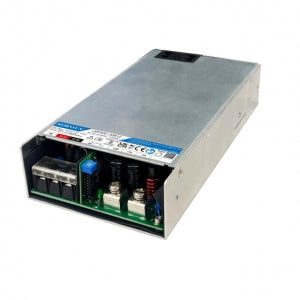

Mornsun LMF600-20B15 AC/DC 600W Enclosed Switching Power Supply

Mornsun LMF600-20B15 AC/DC 600W Enclosed Switching Power Supply

The LMF600-20B15 is a 600 watt, 15 volt, 40 amp enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 80 to 277 VAC or 110 to 390 VDC, high efficiency up to 92%, low no load power consumption, high reliability, double or reinforced insulation, and excellent EMC performance. It meets IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards.

Features:

• Universal AC input voltage of 80 to 277 VAC or 110 to 390 VDC
• Output voltage of 15 volts
• Output current of 40 amps
• High efficiency up to 92%
• Low no load power consumption
• High reliability

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF600-20B15 AC/DC 600W Enclosed Switching Power Supply

Specifications
