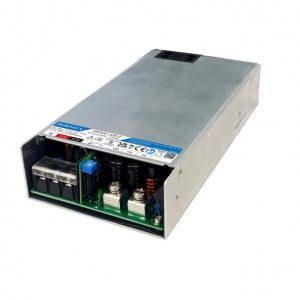

Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply

Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply

The LMF600-20B48 is a 600W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-277VAC or 110-390VDC, and a single output voltage of 48VDC at 12.6A. The power supply is also equipped with a number of features to improve its performance and reliability, including:

• High efficiency (up to 95%)
• Low no-load power consumption
• Double or reinforced insulation
• Excellent EMC performance
• Compliance with IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards

The LMF600-20B48 is a versatile power supply that can be used in a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply

Specifications
