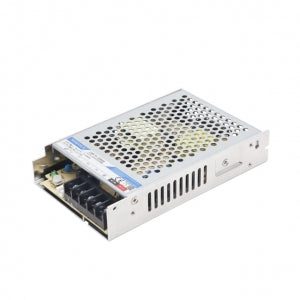

Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply

Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply

The LMF75-23B12 is a 72W AC/DC converter-enclosed SMPS power supply from Mornsun. It has a universal input voltage of 85-305VAC or 120-430VDC, and can output a regulated 12V DC at up to 6A current. The efficiency is up to 87%, and the isolation voltage is 4000VAC.

The LMF75-23B12 is a versatile power supply that can be used in a variety of applications, such as industrial control, medical equipment, and LED lighting. It is also compliant with safety standards such as CE, FCC, and RoHS.

check out : Mornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply

Specifications
