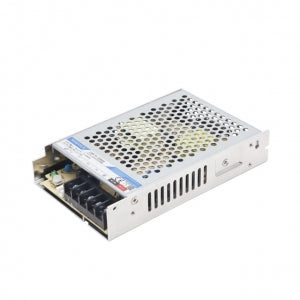

Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply

Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply

The LMF75-23B15 is a 75W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage of 85-305VAC or DC input voltage of 120-430VDC, built-in active PFC function, high efficiency, and high reliability. It also has output short circuit, over-current, over-voltage, and over-temperature protection. The LMF75-23B15 is designed to meet IEC/EN/UL62368, EN60335, GB4943 standards and is widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.

Features:

• Universal AC input voltage of 85-305VAC or DC input voltage of 120-430VDC
• Built-in active PFC function
• High efficiency (up to 87%)
• High reliability
• Output short circuit, over-current, over-voltage, and over-temperature protection
• Designed to meet IEC/EN/UL62368, EN60335, GB4943 standards
• Widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.

check out : Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply

Specifications
