Description

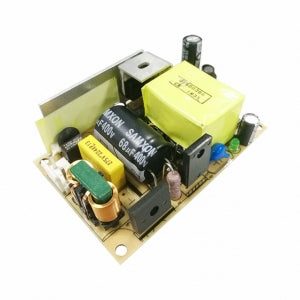

Mornsun LO45-10B48 AC/DC Converter
The LO45-10B48 is a compact, high-efficiency AC/DC converter that provides a regulated output voltage of 48V at a maximum current of 940mA. It has a universal input voltage range of 85-264VAC or 100-370VDC, making it suitable for use in a wide variety of applications. The LO45-10B48 also features short circuit, over-current, and over-voltage protection, as well as low ripple and noise. It is certified to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368 standards.
Features:
- Compact size
- High efficiency
- Universal input voltage range
- Regulated output voltage
- Short circuit, over-current, and over-voltage protection
- Low ripple and noise
- IEC/EN61000-4 and CISPR32/EN55032 certified
- UL/EN/IEC62368 compliant
Package Includes:
1 x Mornsun LO45-10B48 AC/DC Converter
Specifications:
| Output power | 45W |
| Output voltage | 48V |
| Output current | 940mA |
| Input voltage range | 85-264VAC or 100-370VDC |
| Input frequency | 47-63Hz |
| Input current | 115VAC: 1200mA, 230VAC: 700mA |
| Output voltage accuracy | ±2% |
