Description

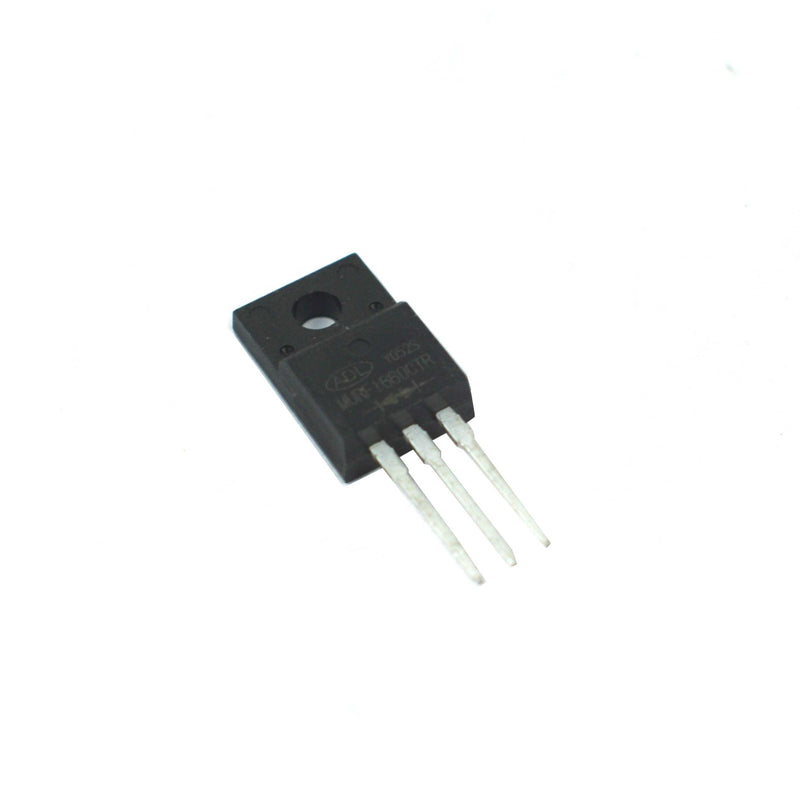

MURF1660CTR is a switch mode power rectifier. It is often used in switching power supplies, inverters, and as free wheeling diode. Its Through-hole(THD) active component. It is often used in switching power supplies, inverters, and as free wheeling diode. It has three terminals.
Features
- Ultrafast 60 Nanosecond recovery time
- 150°C operating Junction temperature
- High-temperature glass passivated junction
- Electrically isolated. No isolation hardware required
- Low leakage
Specifications
| Model | MURF1660CTR |
| Brand | ADL |
| Mounting Type | Through Hole |
| Peak Repetitive Reverse Voltage (VRRM) | 600V |
| Peak Repetitive Forward Current (IFM) | 16A |
| Non-Repetitive Peak Surge Current (IFSM) | 100A |
| Operating Junction and Storage temperature | -65~150°C |
| Package | TO-220FP |
| Packaging | Tube |
| Country of Origin | China |
