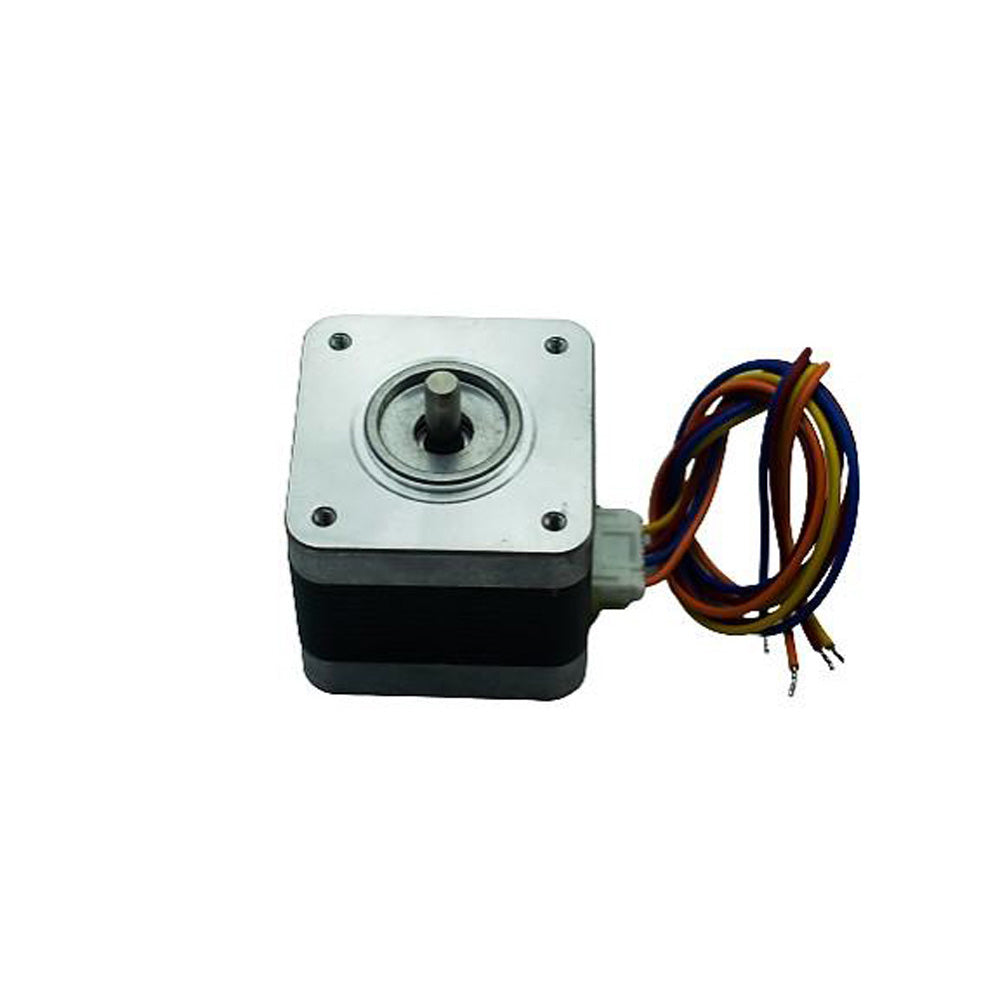

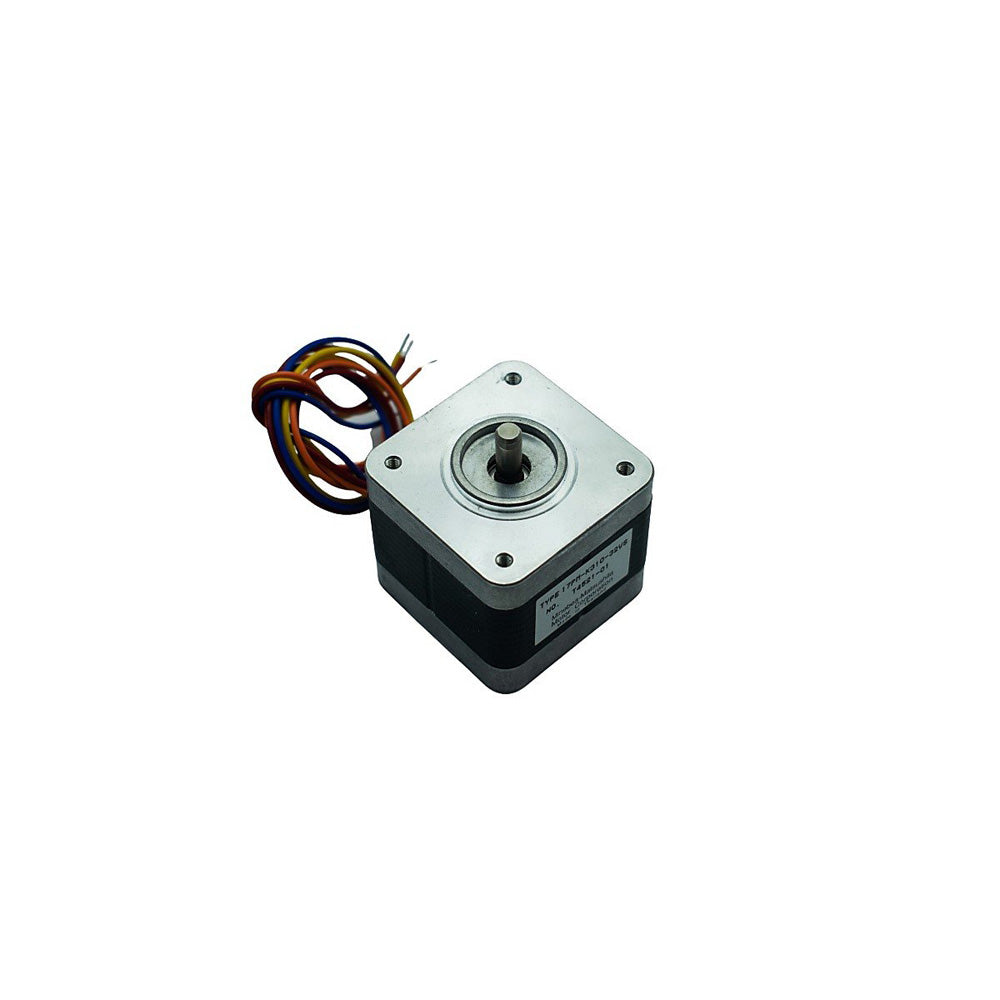

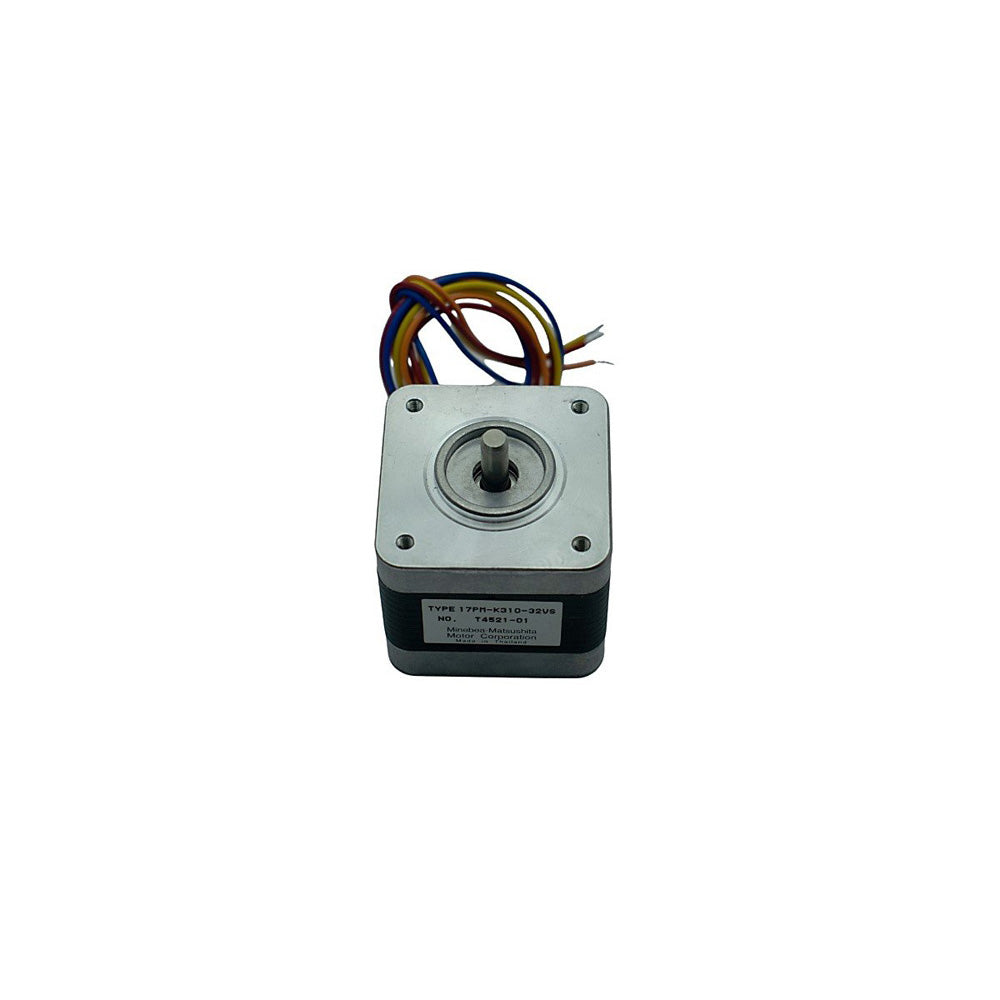

Nema 17 4 Kg-cm Bipolar Stepper Motor 10 mm Shaft for CNC Robotics DIY Projects 3D Printer

Save 19%
Sold By: HatchnHackSKU: C20-03

Price:
Sale price₹ 299.00 Regular price₹ 368.00

Tax included Shipping calculated at checkout

Out of stock

Description

NEMA17 4Kgcm Stepper Motor for high torque applications. Ideal Motor for ATM machines, 3D printers, Peristaltic pumps and job positioning and rotating applications. Single side JST Connectors are provided with the motor.

Features:

  • Torque: 4 kg-cm
  • Current/Phase: 1.5A
  • Operating Voltage (VDC): 12 ~ 24 VDC
  • Step Angle: 1. 8 deg/step
  • Shaft Type: Round
  • Shaft Diameter: 5mm
  • Shaft Length: 10mm
Specifications
Torque  4 kg-cm
Step Angle 1. 8 deg/step
Current/Phase 1.5A
Rated Voltage 12-24 VDC
Number of Phase 2
Shaft Type Round
Shaft Diameter 5mm
Shaft Length 10mm
Motor Body Dimension (LxWxH) 42x42x36 (mm)
Country of Origin China
