Description

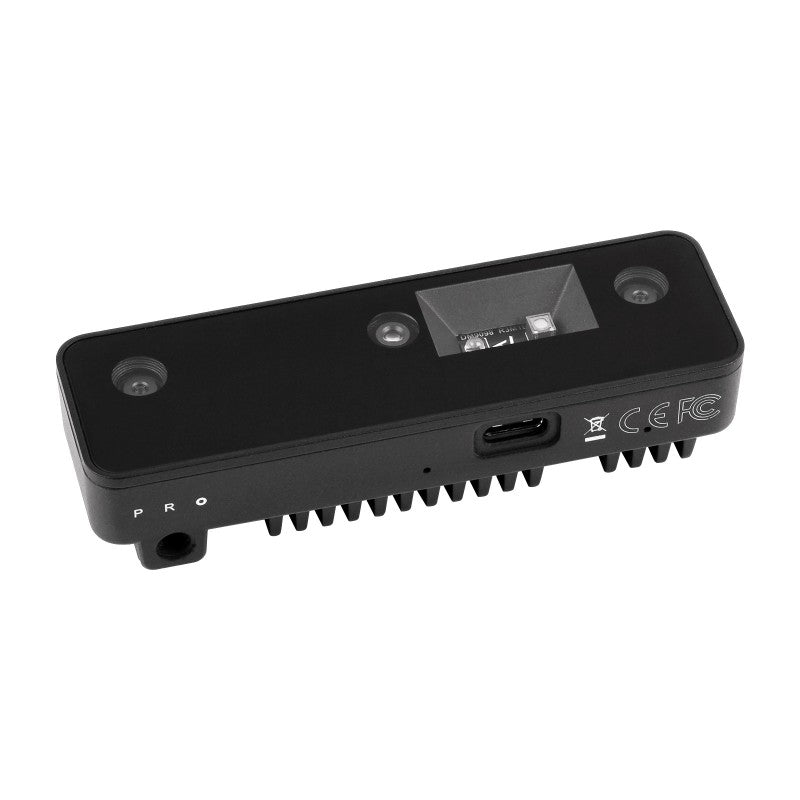

OAK-D-Pro OpenCV AI Machine Vision Kit
Depth Measuring / Image Recognition & Location / Safety & Security Monitoring
Intelligent Driving / Robotics / Object Tracking
OAK is an embedded, high-performance, 3D AI+CV platform consisting of an open-source hardware, firmware, software ecosystem that provides complete and ready-to-use embedded 3D AI + hardware-accelerated computer vision.
The OAK-D-Pro is an upgraded version of the OAK-D with structured light ranging, featuring an IR laser dot projector (active depth vision) and IR illumination LED (for "night vision"). It's also smaller, lighter and more accurate than the OAK-D.
Embedded with the high-performance Myriad X VPU, It adopts active binocular vision technology and structured light, which improves the positioning accuracy to the sub-millimeter level and meets the needs of close-range high-precision positioning and identification, such as Automatic Welding Robots, positioning, identification and calibration of surface defects of parts, etc., which can enhance the perception of the robot .
Specifications
| DEPTH MEASURING RANGE | 0.2 ~ 35 m |
|---|---|
| DEPTH CAMERA | global shutter 120fps |
| RGB CAMERA | 12MP 60fps |
| MAX FRAMERATE | 60fps (RGB), 120fps (Depth) |
| AI CHIP | Intel Myriad X 4TOPS computing performance |
| VIDEO PLUG FLOW | 4K 30 fps H.265 plug flow |
| CONNECTOR | USB3.0 Type-c |
| EXPANSION INTERFACES | GPIO, SPI, UART |
| NN PLATFORM SUPPORT | all platforms |
| POWER CONSUMPTION | 2W ~ 5.5W |
| DEVELOPMENT LANGUAGE | Python, C++ |
| ECLOSURE | aluminum enclosure |
| WEIGHT | 61g |
Powerful Computing Performance
The OAK Provides Up To 4TOPS Computing Performance
10 Times Of OpenMV, 40 Times Of Raspberry Pi 4B
HD Camera
Stereo Vision
Perceive the real 3D world and give robots a pair of eyes
Computer Vision
Real-time data processing on the chip, low performance requirements on the host
Edge Detection |
Feature Tracking |
Artificial Intelligence
Run neural network models directly on the device and support your own models to OAK
Object Detection |
Semantic Segmentation |
OCR |
Attitude detection |
Infrared Night Vision
Achieve indoor and outdoor work around the clock
Better Compatibility
Supports almost all common platforms, programming languages, and neural network frameworks
(The OpenCV AI Kit Official plans to support Java and in progress)
Small body, Big Power
The core chip with 4 TOPS computing performance has built-in functions such as depth measurement, neural network inference acceleration, and OpenCV image processing acceleration. The development environment can be installed with one click, and it features open-source hardware similar to Raspberry Pi, massive application cases and free industrial-grade neural network pre-training models, so you can quickly design your own products.
Lightly Loaded CPU |
Easy to Develop |
Open Source Ecology |
Outline dimensions
Resources
WIKI: www.waveshare.com/wiki/OAK-D-Pro
Package Contains:
Weight: 0.212 kg
OAK-D-Pro x1
