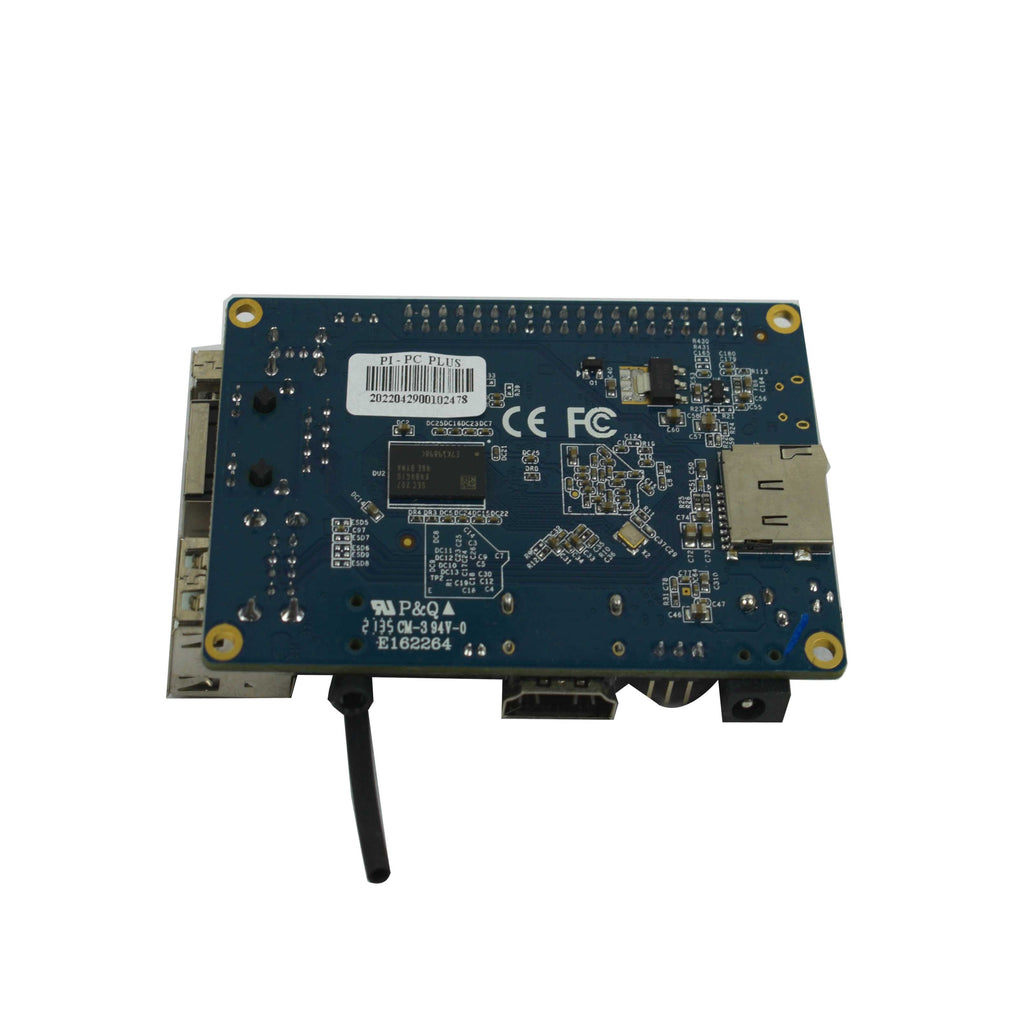

Orange Pi PC Plus V1.1

Save 15%
Sold By: HatchnHackSKU: G15-23

Price:
Sale price₹ 3,921.00 Regular price₹ 4,614.00

Tax included Shipping calculated at checkout

Out of stock

Description

Orange Pi PC Plus is a single-board computer that is open-source. It supports Android 4.4, Ubuntu, and Debian Image. It has 1GB DDR3 SDRAM and the All Winner H3 SoC.
Because Orange Pi Pc Plus is open source, you can use it to build a small computer, a wireless server for your website and IoT applications, an Android monitor, music and video players, and pretty much anything else.
Orange Pi PC Plus is designed for anyone who wants to start creating with technology rather than simply consuming it. It's a simple, enjoyable, and useful tool that you can use to begin taking control of your surroundings.

Features

  • Orange Pi PC PLUS adopts Allwinner quad-core A7 high-performance processor Allwinner H3, integrates Ethernet, DC power input, video/audio output and other interfaces, and supports HDMI, AVOUT video output and other functions.
  • Orange Pi PC Plus RAM 1G with 8GB Emmc Flash, Mini Open-Source Single Board, Support 100M Ethernet Port/Wifi/Camera/HDMI/IR/MIC
  • Orange Pi PC Plus open source development board references quite rich interfaces, including HDMI, Ethernet, USB-Host, USB-OTG, DVP camera, etc. And it integrates an on-board network, on-board storage, LED indicator, and our development board is compatible with Raspberry Pi GPIO port, has a unique debugging serial port, etc.
  • Memory (SDRAM): 1GB DDR3 (shared with GPU). Onboard Storage: TF card (Max. 32GB) / MMC card slot, 8GB EMMC Flash
  • Three USB 2.0 HOST, one USB 2.0 OTG, 40 Pins Header, Camera Interface, HDMI, MIC, IR Receiver
  • Orange Pi Single Board Computers can build a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, or Scratch. Pretty much anything else, because Orange Pi is open source.
  • Notice before order: By default, we won't responsible for the customs clearance fee charged by your local.
Specifications

CPU

H3 Quad-core Cortex A7 H.265/HEVC 4K

GPU

·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 32GB) / MMC card slot

8GB EMMC Flash

Onboard Network

10/100 Ethernet RJ45

Video Input

A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input

MIC

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Integrated CVBS

Supports simultaneous output of HDMI and CVBS

Audio Output

3.5 mm Jack and HDMI

Power Source

DC input, USB OTG input don't supply power

USB 2.0 Ports

Three USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power button

Low-level peripherals

40 Pins Header



GPIO(1x3) pin

UART, ground.

LED

Power led & Status led

Key

IR input,POWER

Supported OS

Android Lubuntu, Debian Image

Dimension

85x55mm

Weight

70g

Country of Origin China
