Description

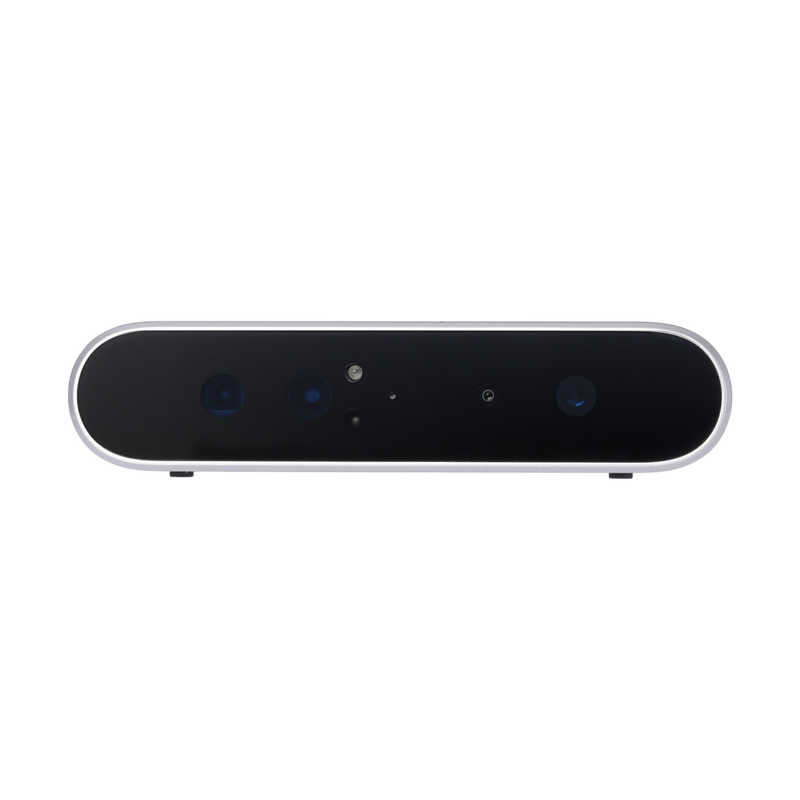

The upgraded Astra 2 3D camera, released in 2023, is the successor to the widely used Astra series products. The camera is based on structured light technology and has been upgraded with the latest Orbbec’s custom ASIC for high quality depth processing, IMU and multi-camera sync. The Orbbec SDK makes it easy to setup and deliver extremely accurate and reliable data for in-door operation.
- High quality depth data output from 0.6m to 8m
- Up to 30 fps at 1600X1200 depth resolution
- Up to 30 fps at 1920X1080 depth resolution
- Multi-camera synchronization supported
- IMU supported
Technical Specs
Product Name
|
Astra 2
|
|---|---|
Depth Range
|
0.6m – 8m
|
Depth FOV
|
58.2°H x 45.2°V
|
Depth Resolution/FPS
|
Up to 1600 x 1200 @30fps
|
RGB FOV
|
74.7°H x 46.2°V
|
RGB Resolution/FPS
|
Up to 1920 x 1080 @30fps |
| IMU | Supported |
Dimensions (W*H*D)
|
144.5mm x 45.3mm x 38.6mm
|
Temperature
|
0 – 35°C；10%-95%RH (non-condensing)
|
Power Input
|
USB 3.0 Type-C
|
Power Consumption
|
Average < 3 W
|
Data Output
|
Point Cloud，Depth Map, IR & RGB
|
SDK
|
Orbbec SDK
|
Weight
|
241g
|
