Description

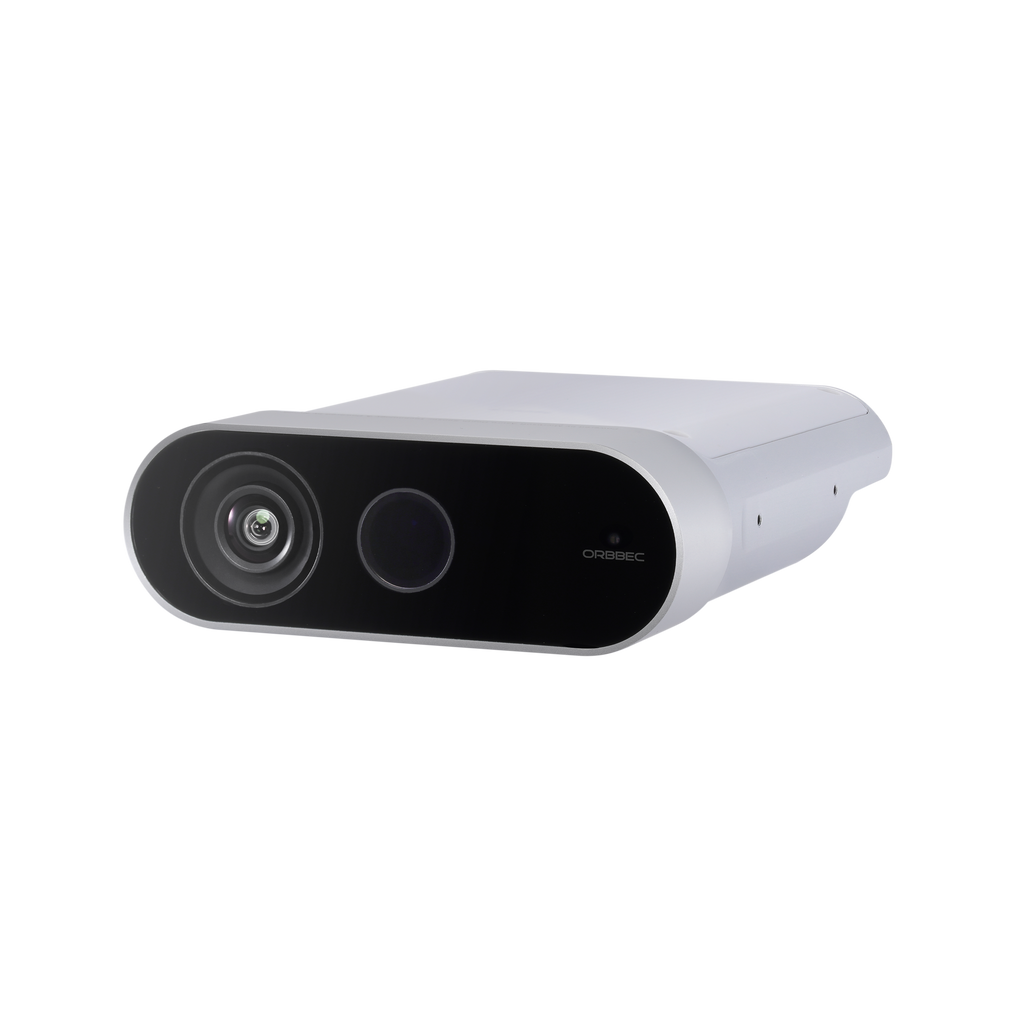

Femto Mega is a programmable multi-mode Depth and RGB camera with real-time streaming of processed images over Ethernet or USB connections. The camera uses Microsoft’s industry proven ToF technology and the NVIDIA® Jetson™ platform to deliver a software-defined Depth and RGB vision platform for computer vision and AI developers.
Performance
- High resolution sensor provides detailed scene understanding.
- Wide Field of View covers large area.
- Various operating modes for different applications.
Programmability
- In-camera processing of advanced depth vision algorithms.
- Integrated NVIDIA Jetson Nano™ system-on-module for AI processing can remove need for dedicated compute.
- Orbbec SDK enables easy setup and has a rich set of APIs for integration with various applications.
This device can serve as a direct replacement of Microsoft Azure Kinect
Features
- 1 Mega Pixel ToF sensor
- 4K RGB
- IMU: 6DoF
- Processor: NVIDIA Jetson Nano™
- Data interfaces: Ethernet, USB-C 3.1
- Power: PoE/USB-C/DC
- Trigger/Sync Control
- OS: Windows or Linux
- Operating temperature: 10℃ ~ 25℃
Technical Specs
| Product Name | Femto Mega |
|---|---|
| VID/PID | 0x2BC5/0x0669 |
| Technology | iTOF |
| Shutter Type | IR: Global Shutter, Color: Rolling Shutter |
| Wavelength | 850nm |
| Data Connection | Type C USB 3.0 Gigabit Ethernet 8 Pin-Connector*1 *1 for multi-device sync |
| Network Protocol | RTSP, RTP |
| Power Mode | DC / PoE / Type C |
| Power Input | DC 12V 2A POE+/802.3at (24W) Type-C 5V 3A |
| Operating Mode |
DC Power + Type-C Data *2 Color mode supports H.264 and H.265 format |
| Power Consumption |
Average*: |
|
Peak*: |
|
| Operating Environment |
10℃ - 25℃,8%RH - 90 %RH |
| Anti-flicker |
50Hz & 60Hz |
| IMU |
6 DoF |
| Mirror Mode |
Supported, Non-mirror is default |
| Operating Environments |
Indoor, Semi-outdoor |
| Dimensions |
145 mm × 115 mm × 40 mm ± 2mm |
| Weight |
560g ± 3g |
| Certifications |
ROHS, Reach, WEEE, CP65, EMC, FCC, IC, UKCA, Class 1 Laser |
