Description

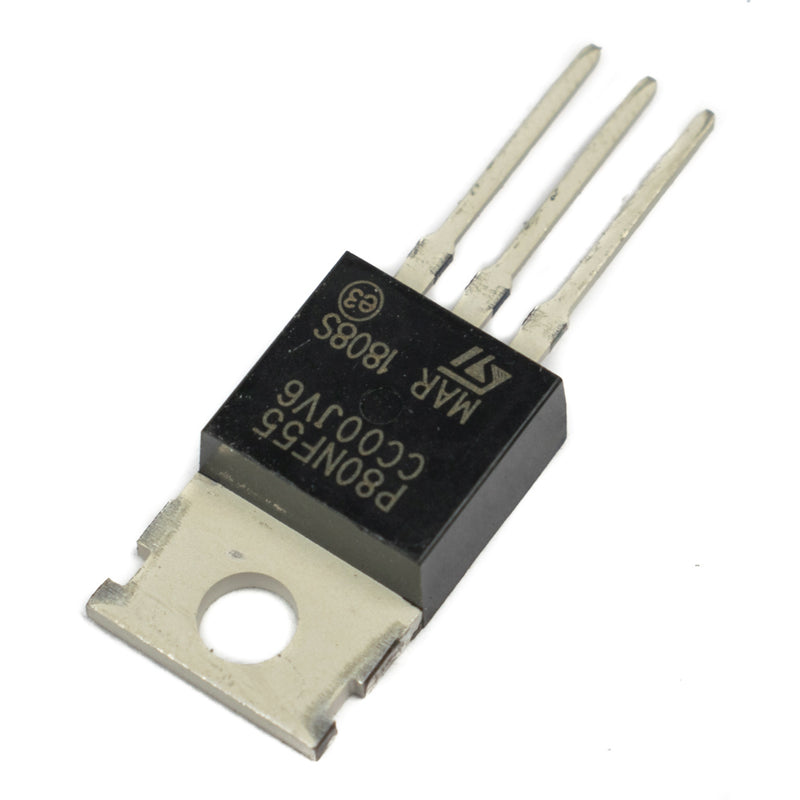

P80NF55 power MOSFETs were created utilising STMicroelectronics' proprietary STripFET technology, which is especially engineered to decrease input capacitance and gate charge. As a result, the devices are suited for usage as the main switch in sophisticated high-efficiency isolated DCDC converters for telecom and computer applications, as well as applications with low gate charge driving requirements.
Features:
- Its 100% avalanche tested
- Low input capacitance and gate charge
-
Low gate input resistance
Specifications
| Part Number | P80NF55 |
| Package | TO-220 |
| Polarity | N Channel |
| Drain-Source Breakdown Voltage | 55V |
| Continuous Drain Current | 80A |
| Gate-Source Voltage | 20V |
| Power Dissipation | 300W |
| Gate Charge | 155nC |
| Country of Origin | China |
