Description
MIP2K4, MIP2Kx series is a high-performance IPD designed for 15W battery chargers and featuring built-in frequency jitter function at PWM control. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads, while also conserving power during standby.
Features
- Built-in jitter function
- Built-in charge protection circuit
- Built-in overheating, load shorting and overvoltage protection circuits
Applications
- Chargers (for DSC, etc.), AC adapter
Specifications

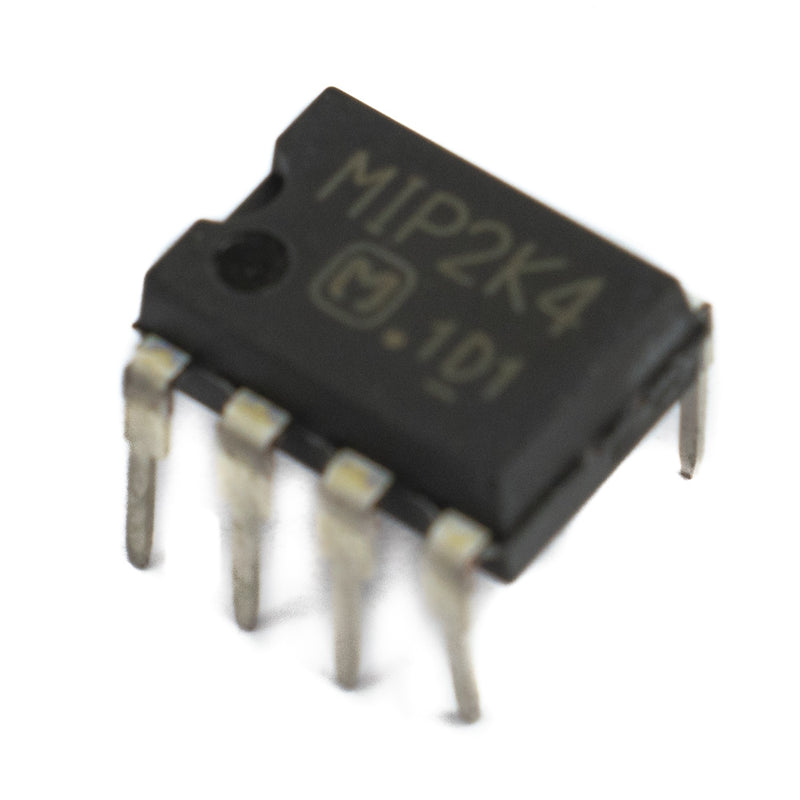

| Model | MIP2K4 | |
| Brand | PANASONIC | |
| Output | Up to 10W | |
| VDSS | 700V | |
| ILIMIT | 0.70A | |
| R(DS)ON | 7ohm |
|
| fosc | 100kHz | |
|
∆f
|
5.5kHz
|
|
|
fM
|
260Hz | |
| Analog IC - Other Type | BATTERY CHARGE CONTROLLER | |
| Control Technique |
|
|
| Number of Functions | 1 | |
|
7 |
|

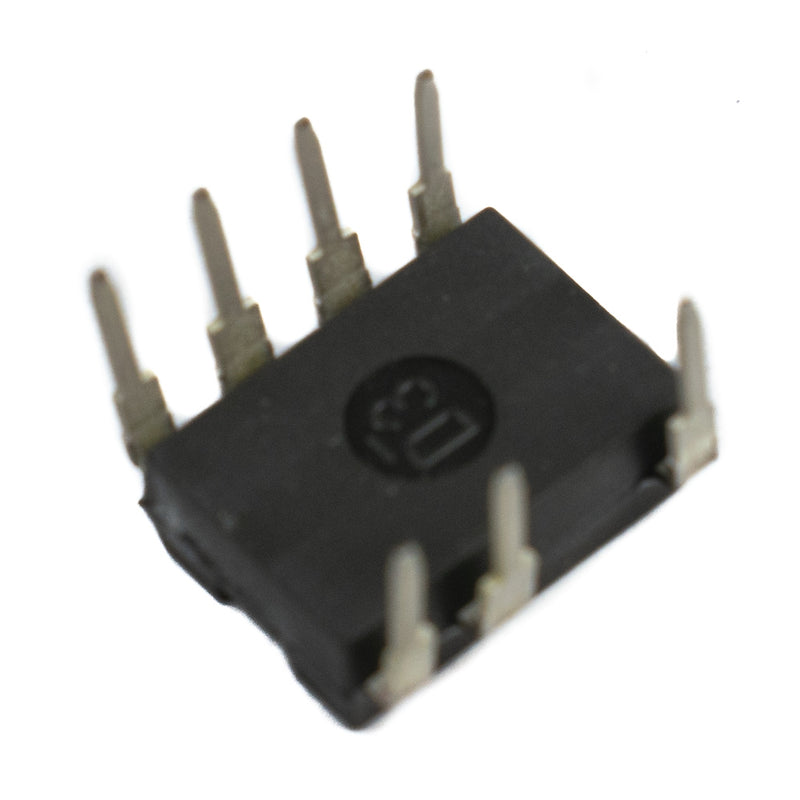

| Package | DIP | |
| Mounting | Through Hole | |
| Country of Origin | China |
