Description

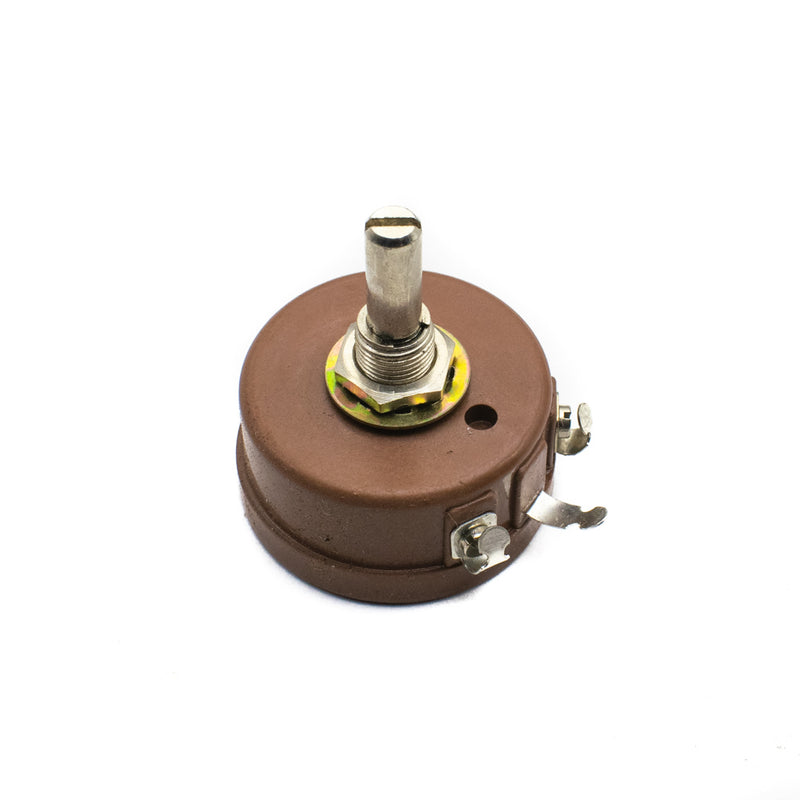

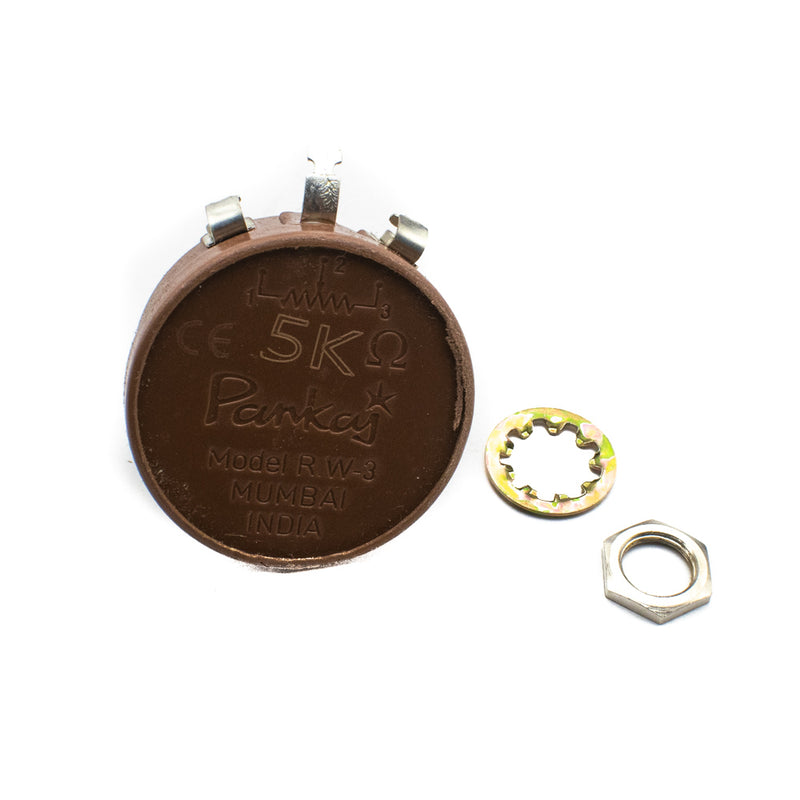

Model RW-3 is Wire Wound Servo Potentiometers with the spindle on two ball bearings from PANKAJ, best suited for Dancer application due to low Torque and longer life. It is used in temperature controllers, process control equipment, control panels, amplifier speakers.
Features
- Brass Nickel Plated Bush & Spindle
- Tin-Plated Terminals
- High-Grade Engineering Moulded Plastic Housing
- Anti Rotating Mounting Plate
- Semi Log Resistance Curve
- Various Shaft Lengths and Designs
Specifications
| Model | RW-3 |
| Resistance | 5K ohm |
| Shaft Diameter | 6.3mm |
| Shaft Length | 15mm |
| Diameter | 43.2mm |
| Height | 28mm |
| Angle of rotation | 360° |
| Power Rating | 1 Watt |
| Country of Origin | China |
