Description

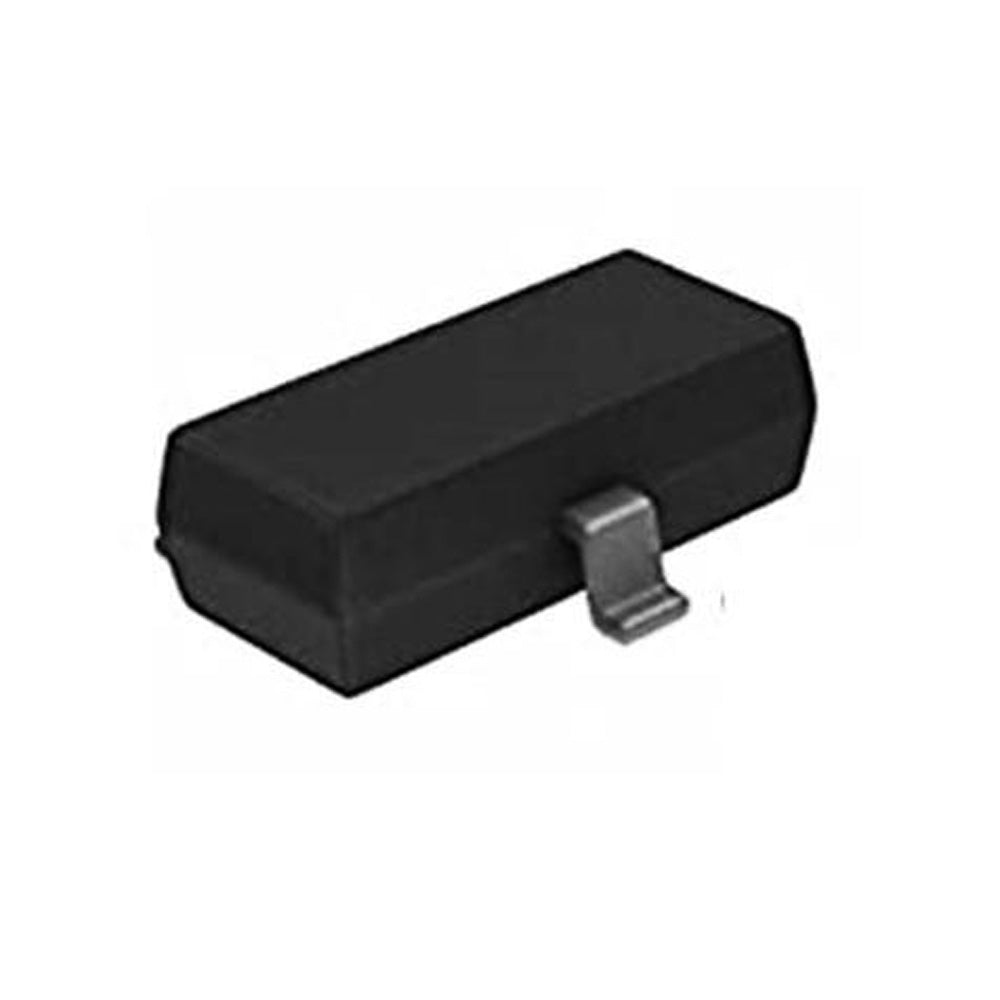

PMBT2222A is an NPN switching transistor in a small SOT23 (TO-236AB) Surface-mounted Device (SMD) plastic package. Generally used for switching and linear amplification.
Features
- High current (max. 600 mA)
- Low voltage (max. 40 V)
- AEC-Q101 qualified
Specifications
| Part Number | PMBT2222A |
| Manufacturer | Nexperia |
| Package / Case | SOT-23-3 |
| Collector- Base Voltage VCBO | 75 V |
| Collector-Emitter Voltage VCEO Max | 40 V |
| Collector-Emitter Saturation Voltage | 1 V |
| Configuration | Single |
| Emitter- Base Voltage VEBO | 6 V |
| Gain Bandwidth Product fT | 300 MHz |
| Maximum DC Collector Current | 600 mA |
| Maximum Operating Temperature | + 150 C |
| Minimum Operating Temperature | - 65 C |
| Mounting Style | SMD/SMT |
| Packaging | Reel |
| Pd - Power Dissipation | 250 mW |
| Product Type | BJTs - Bipolar Transistors |
| Technology | Si |
| Transistor Polarity | NPN |
| Country of Origin | China |
