Proton 3V 1W Warm 2835 SMD LED (Pack of 4000)

This is a high-quality SMD LED. These LEDs consume very low power and emit much intense bright light, many times more than a 5mm LED, and generally produce a wide angle of light disbursement which can be narrowed through the use of external lenses.

SMD LEDs are substantially smaller than lead frame type components, they can be used on smaller boards, with higher packing density, less storage area, and smaller equipment. Just like the other LED’s SMD LED has two pins, an anode and a cathode for powering the LED.

Pin Configuration

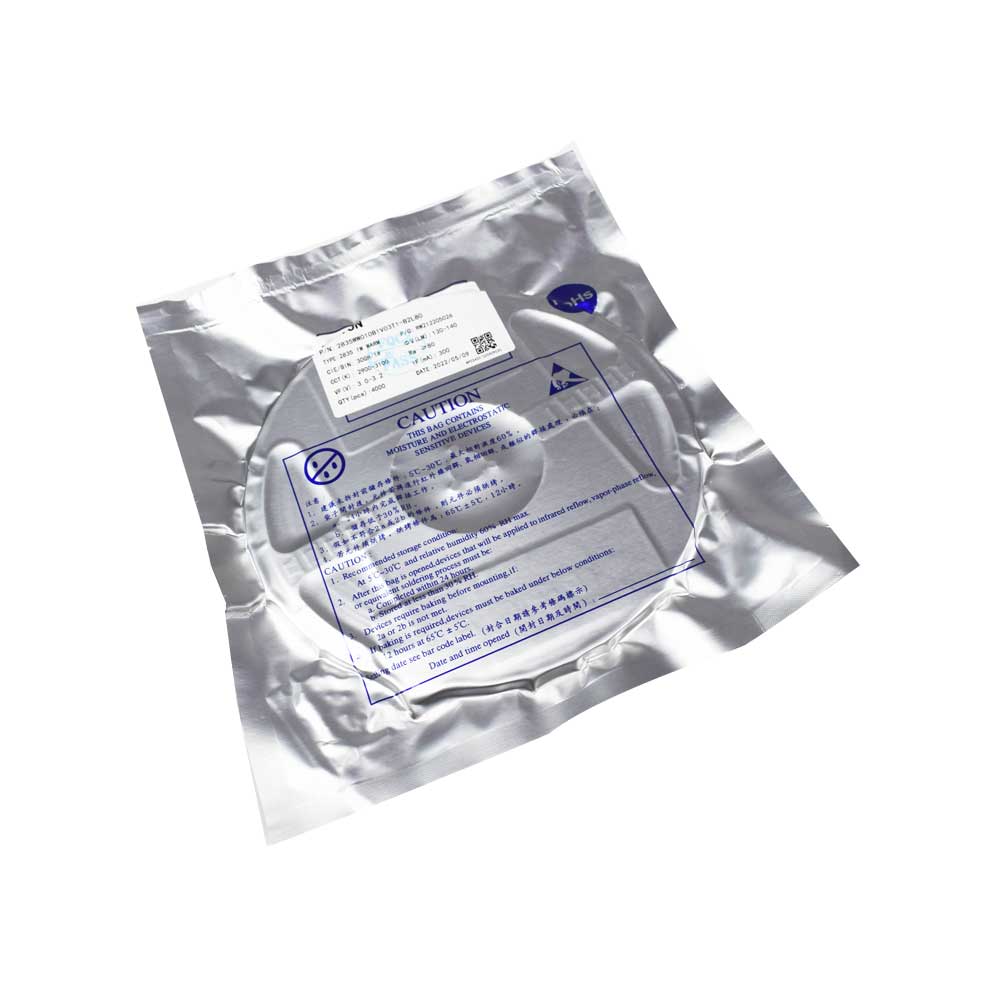

Caution

• Recommended Storage Condition:

           At 5°C ~30°C and Relative humidity of 60% RH max.

• After this bag is opened, devices that will be applied to infrared reflow, vapour-phase reflow, or equivalent soldering process must be:

          a. Completed within 24 hours.

          b. Stored at less than 30% RH.

• Devices require baking before mounting, if:

          2a or 2b is not met.

• If baking is required, devices must be baked under the below conditions:

          12 hours at 65°C ±5°C.

Specifications
