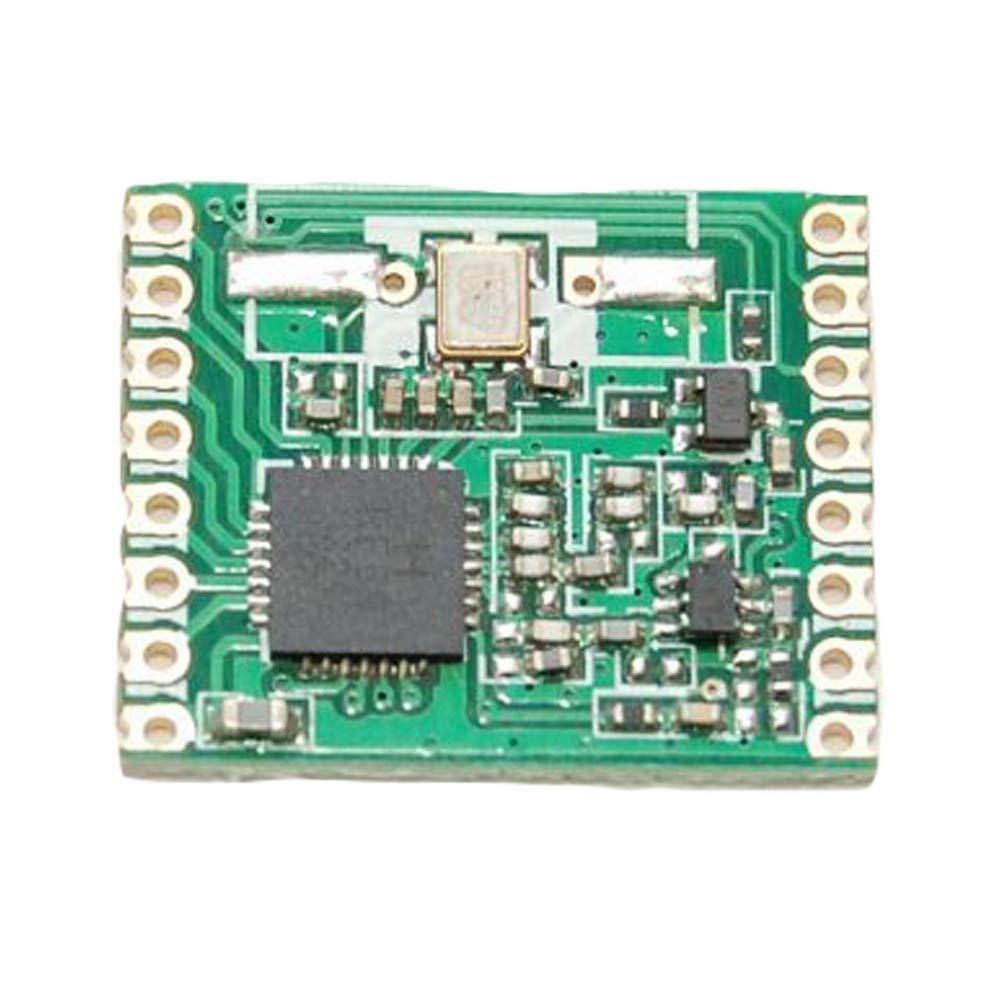

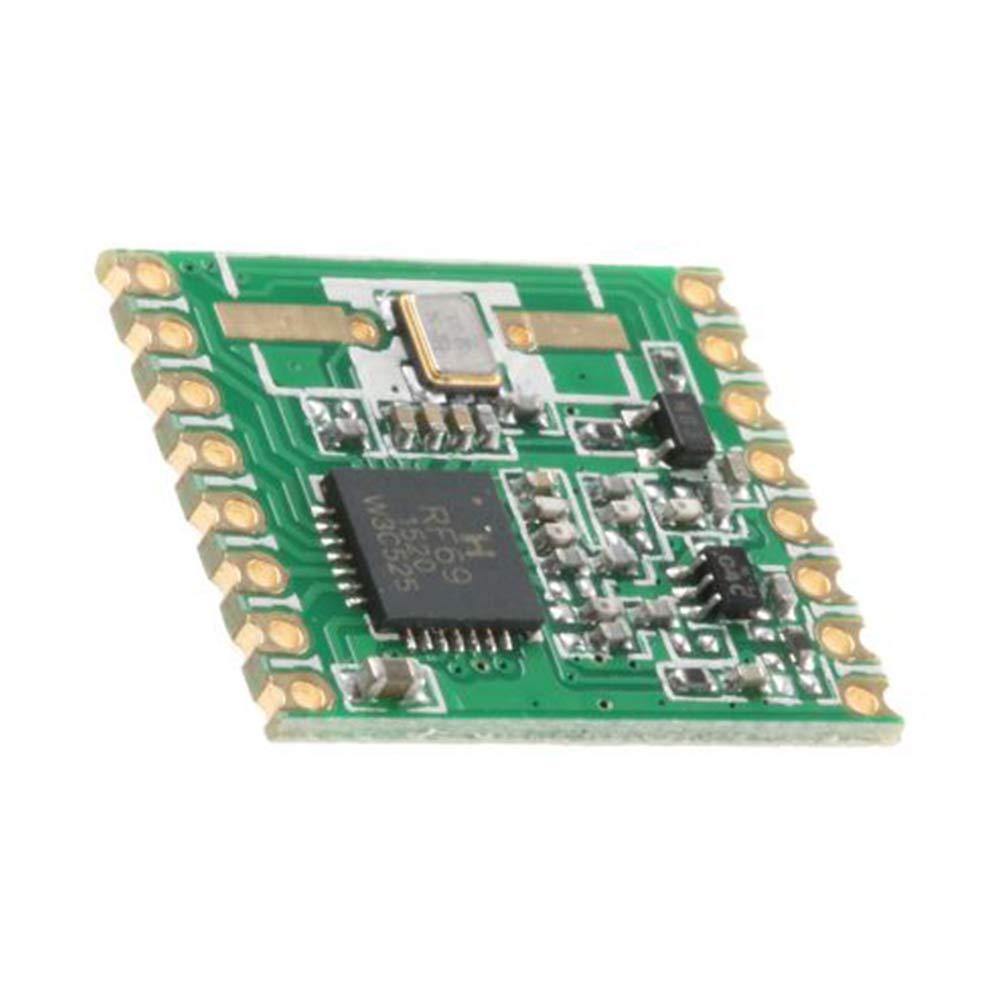

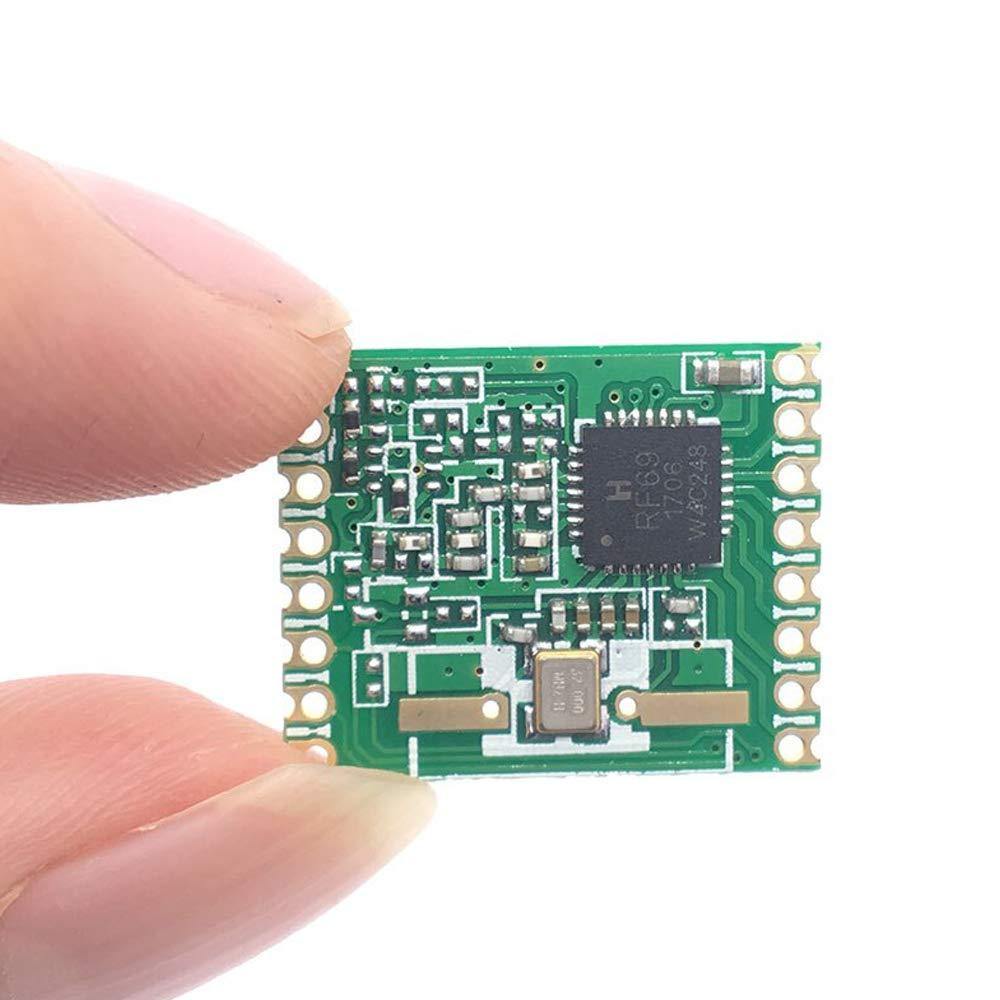

RFM69 FSK Transceiver Module

RFM69 FSK Transceiver Module

The RFM69 series wireless communication module is intended for global free application at the 434 MHz ISM band. It is a low-power, high-bandwidth module with low cost, stability, and product consistency, capable of transmitting data packets up to 300Kbps. The module has broad applications, including daily life activities that require wireless connection, industrial control, access control, attendance, surveillance, and security industries.

The RFM69HCW variant of the module communicates with a host microcontroller using an SPI and supports up to 256 networks with 255 nodes per network. It features AES encryption for data privacy and can transmit data packets of up to 66 bytes long.

The RFM69HCW operates at 915MHz frequency and can transmit up to 100mW at 300kbps. These values can be adjusted to match specific application requirements, with an option to maximize range by increasing transmit power and reducing data rate or reducing both for short-range sensor networks with low battery consumption.

The module can cover a considerable distance at full power, reaching over 500 meters in open air or transmitting from space to the ground using more complex antennas and modulation schemes. The RFM69 series has various models with different characteristics such as MCU, power amplifier, data interface, and packaging methods. These models can communicate with each other, meeting FCC/CE standards and satisfying clients' authentication needs.

Features

• Transceiver module capable of operation over a wide frequency range, including the 315, 433, 868, and 915MHz license-free ISM frequency bands
• Programmable RF communication parameters
• Operates using FSK, GFSK, MSK, GMSK, and OOK modulations
• Built-in bit synchronizer performing clock recovery, incoming sync word recognition, and automatic RF sense with ultra-fast AFC
• Packet engine with CRC-16, AES-128, and a 66-byte FIFO
• Optimized for low power consumption while offering high RF output power and channelized operation
• Can communicate over several hundred meters given adequate antenna

Applications

• Medical device and remote control

• Logistics tracking. warehouse inspection. electronic tags

• Consumer wireless applications

• Low power telemetry

• Wireless sensor network applications

Package Includes:

• 1 x RFM69 FSK Transceiver Module

Specifications:
