Description

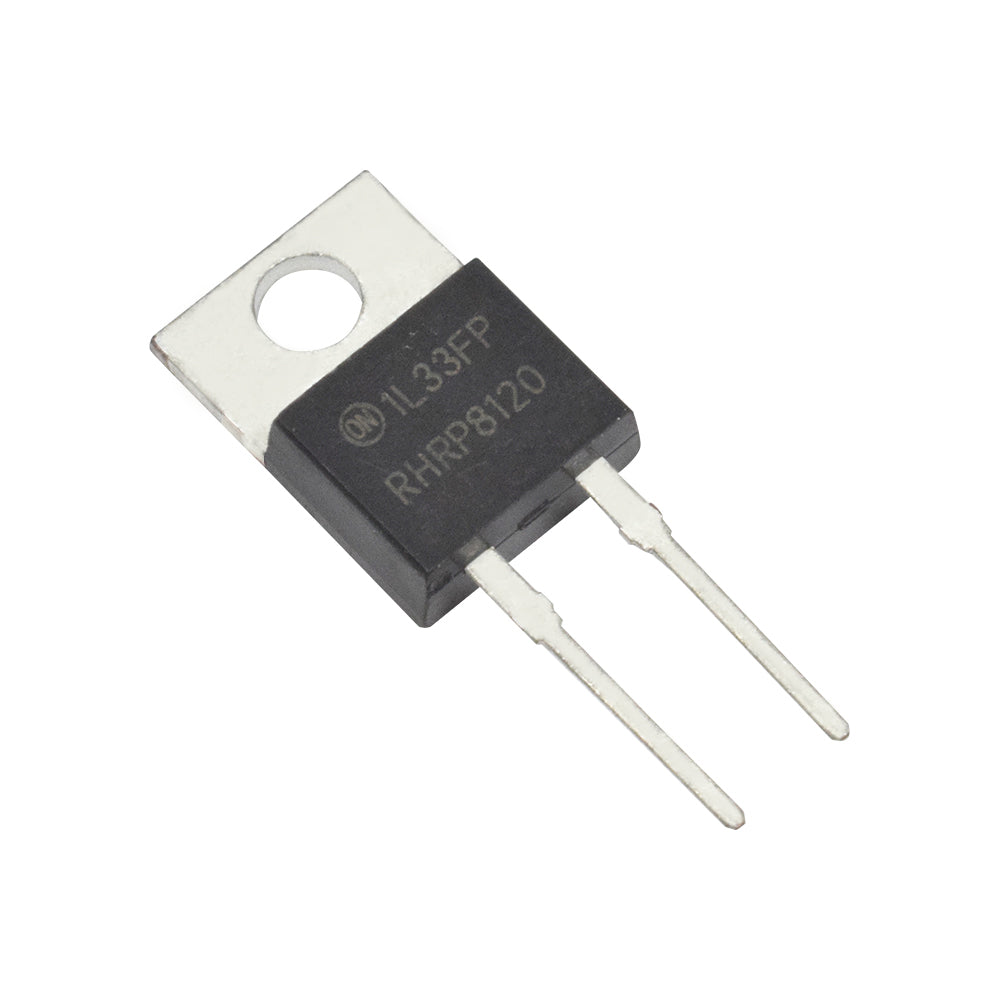

A hyper-fast diode with soft recovery properties is the RHRP8120. It is silicon nitride passivated, an ion-implanted diode that has half recovery time compared to the ultrafast diode. Planar epitaxial construction. These components are designed to be used in various switching power supplies and other power-switching applications, such as freewheeling/clamping diodes and diodes. Many power switching circuits' minimal stored charge and hyper-fast soft recovery reduce ringing and electrical noise.
lowering switching transistor power loss. Its package name is JEDEC TO-220AC.
Features
-
Hyper fast Recovery 70 ns
-
1200 V Reverse Voltage and High Reliability
-
It's maximum forward voltage is 3.2 V
-
Avalanche Energy Rated
-
Its mostly used in power-switching applications
Specification
| Model | ERHRP8120 |
| Type | Hyper fast diode |
| Maximum operating voltage | 1200V |
| Maximum forward voltage | 3.2V |
| Brand | ON SEMI |
| Package | TO-220AC-2L |
| Maximum power dissipation | 75W |
| Operating and Storage Temperature Range | -65°C TO 175°C |
| Country of Origin | China |
