Description

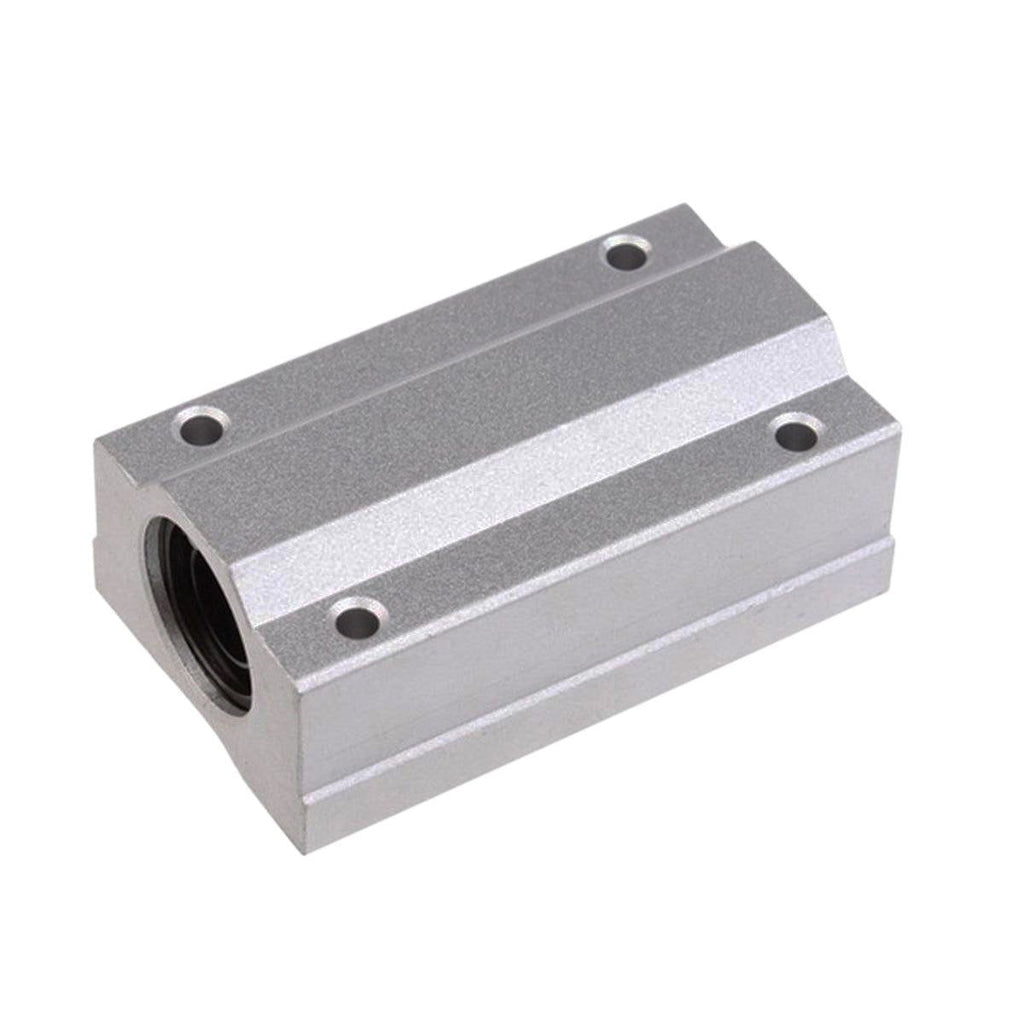

SC8UU Linear Bearing (8 mm)
The 8mm SC8UU linear bearing unit is equipped with an aluminium-based housing that features four mounting holes. The linear bearing platform is generally used for super-fast movement robots or CNC or 3D printers. The SC8UU 8mm linear bearing unit is a great system to replace damaged ball bearings to improve efficiency and save energy. In order to get started with the SC8UU linear bearing unit, you need two 8mm supports and a precision-ground 8mm rod. The 8mm SC8UU linear bearing is economical and easy to maintain and replace.
Features:
- Inner Diameter: 8mm
- Length: 58mm
- Material: Aluminum housing with integrated ball bearings
- Mounting: Equipped with mounting holes for easy installation
- Smooth Motion: Provides smooth linear motion
- Low Friction: Reduces friction and enhances durability
- Noise Reduction: Operates with low noise
- High Rigidity: Ensures stability and precision
- Long Life: Designed for long-lasting performance
- Economical: Cost-effective and easy to maintain
Applications:
- Construction machinery
- CNC 3D Printers
- Automotive components
- Home appliances
- Industrial
- High-speed electric motors, pumps, and machinery.
Package Includes:
- 1 x SC8UU Linear Bearing (8 mm)

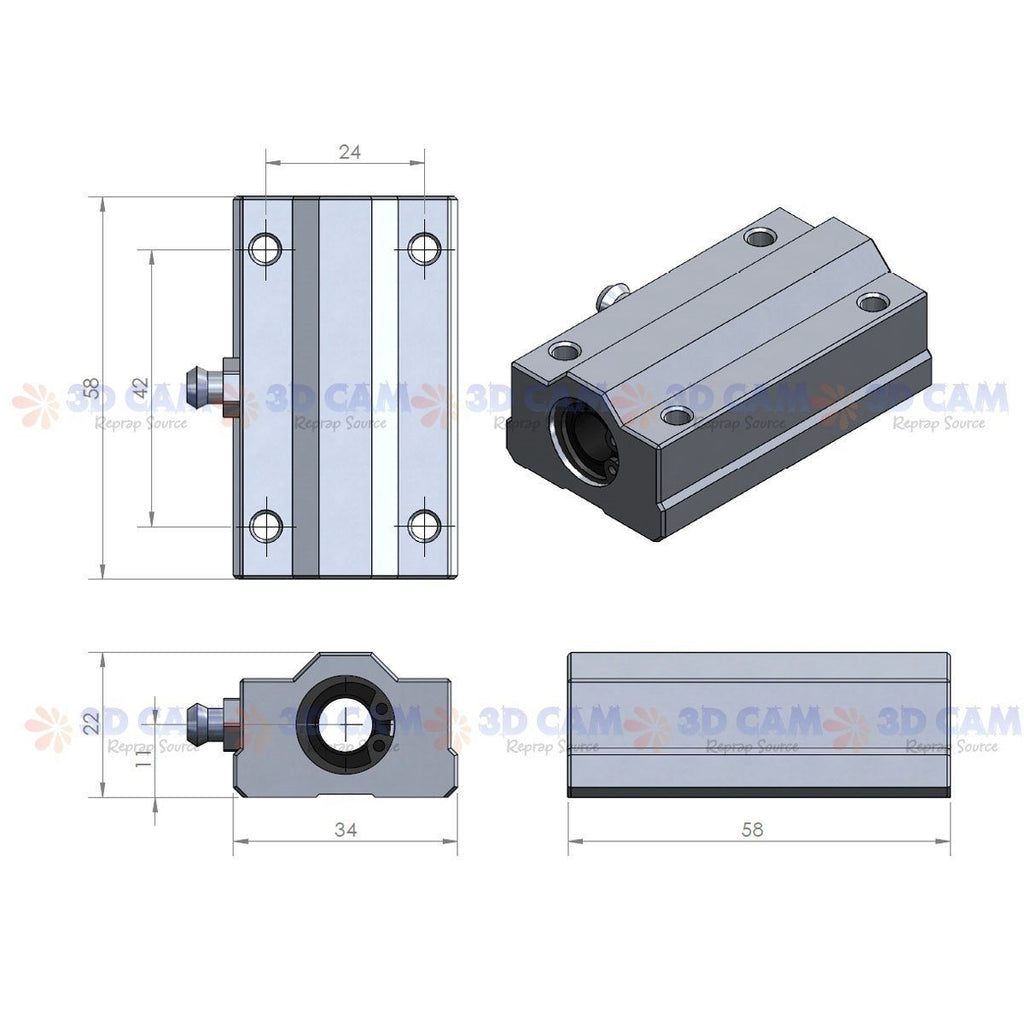

Specifications:
| Model | SC8UU |
| Inner Diameter | 8mm |
| Platform Size | 34mm x 30mmx22mm |
| Material | Steel, Aluminium |
| Holes | 4 Mounting Holes |
