Description

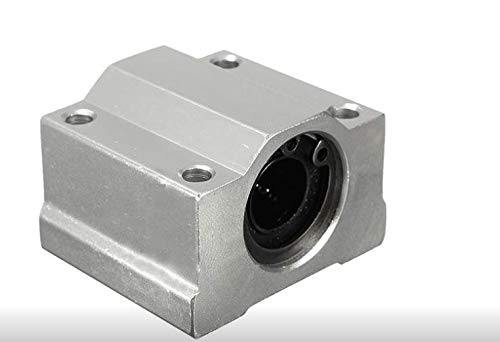

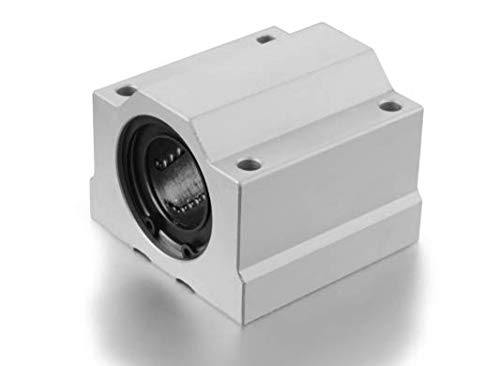

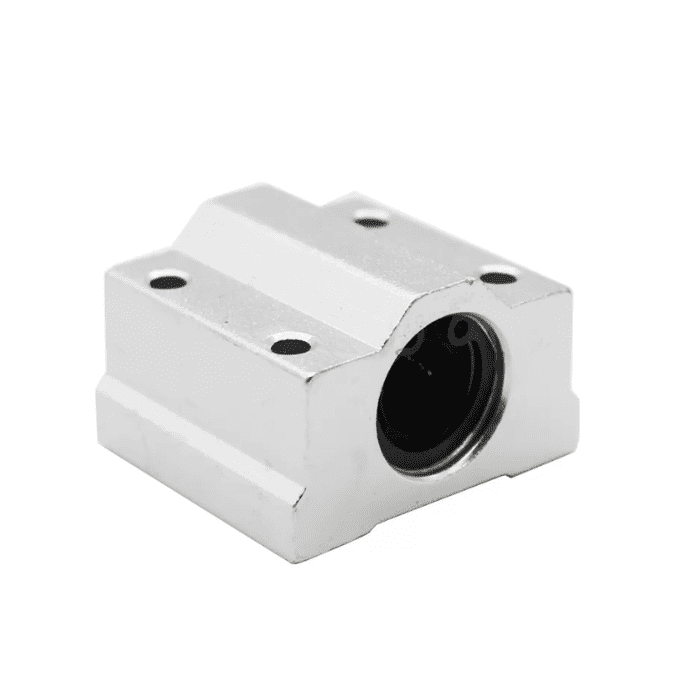

SC8UU Linear Bearing (8 mm)
The 8mm SC8UU linear bearing unit is equipped with an aluminium based housing that features four mounting holes. The linear bearing platform is generally used for super-fast movement robot or CNC or 3D printers. The SC8UU linear bearing unit is a great system to replace damaged ball bearings to improve efficiency and save energy. In order to get started with the SC8UU linear bearing unit, you need two 8mm supports and a precision-ground 8mm rod.
Applications:
- Construction machinery
- CNC 3D Printers
- Automotive components
- Home appliances
- Industrial
- High-speed electric motors, pumps, and machinery.
Package Includes:
- 1 x SC8UU Linear Bearing (8 mm)
Specifications:
| Model | SC8UU |
| Inner Diameter | 8mm |
| Platform Size | 34mm x 30mm |
| Material | Aluminium |
| Holes | 4 Mounting Holes |
| Dimensions (mm) | 25 x 18 x 30 (L x B x H) |
| Weight (gm) | 40 |
