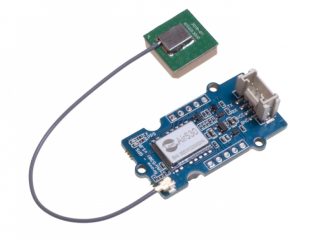

Confused about your GPS not working well in urban or outsides under only one or a few satellite module? Then you should not miss our new SeeedStudio Grove GPS (Air530). It’s a high-performance, highly integrated multi-mode satellite positioning and navigation module. It supports GPS / Beidou / Glonass / Galileo / QZSS / SBAS, which makes it suitable for GNSS positioning applications such as car navigation, smart wear, and drone.
Pinout
Applications :
- GPS tracker
- GPS navigation
- Distance measurement
- Car navigation
- Drone
Cautions :
- The input power supply voltage of Grove power supply interface, should not exceed 5.6V, otherwise, it may damage the device.
- The voltage of the selected button battery should not exceed 3V, or it will probably damage the device.
Useful link:
Features:
- Positioning error within 10 meters
- Multi-mode satellite positioning & navigation and support more than 6 satellites at the same time
- The position still quickly and accurately under the condition of bad signal
- Low power consumption at only 31uA
- Compatible hard/soft interface for other modules
- Adopt the integrated design of RF baseband, which integrates DC/DC, LDO, LNA, RF front-end, baseband processing, 32-bit RISC based chip, RAM, FLASH storage, RTC and power management functions
- Cost-effective
- Compact size for easy deployment
Package Includes:
1 x Grove- GPS (Air530)
1 x Grove cable
