Description

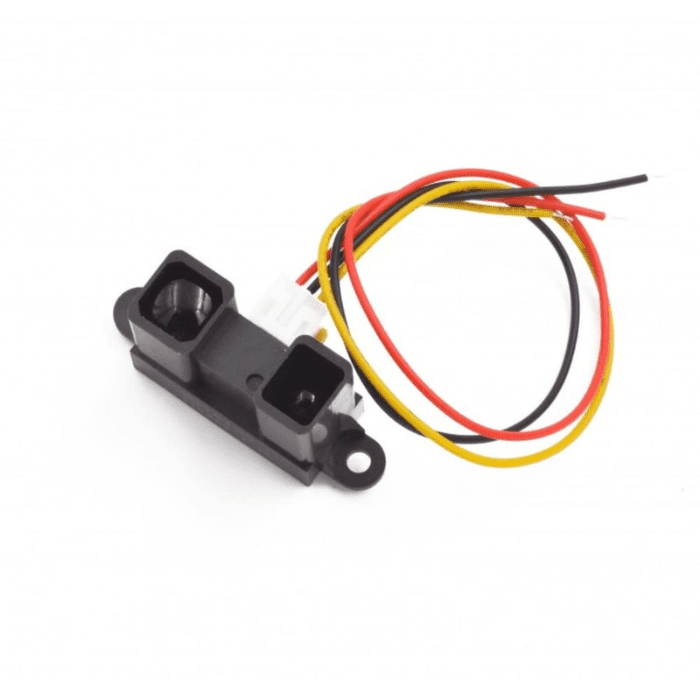

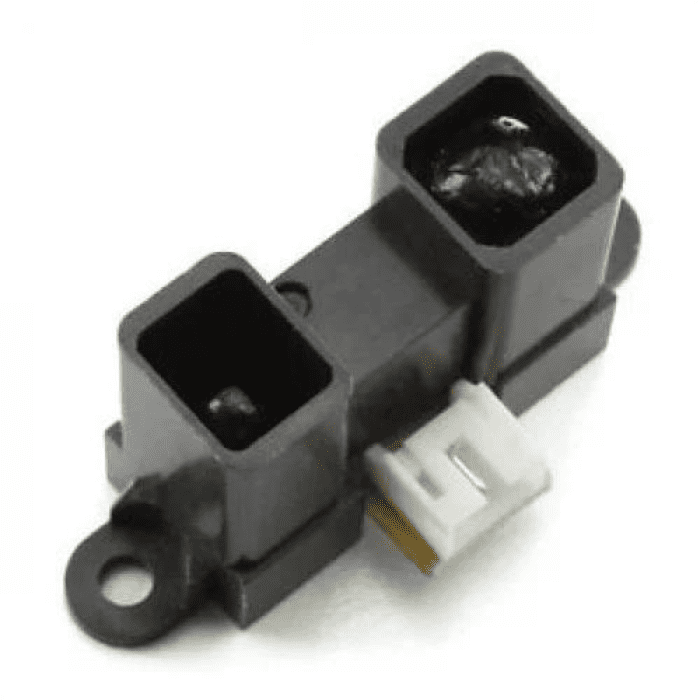

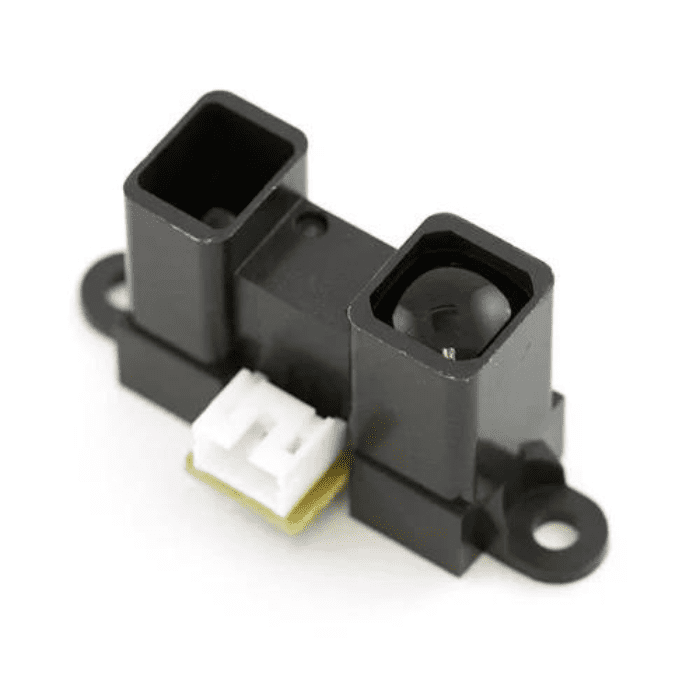

Sharp GP2Y0A02 F 23 Digital Distance Measuring Sensor
The Sharp GP2Y0A02 F 23 Digital Distance Measuring Sensor is a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives.
Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 20 cm to 150 cm (8″ to 60″). The sensor comes with a standard JST.
Applications:
- Obstacle Avoider Robot
- Maze solver
- Home Automation
- IoT Projects
Package Includes:
-

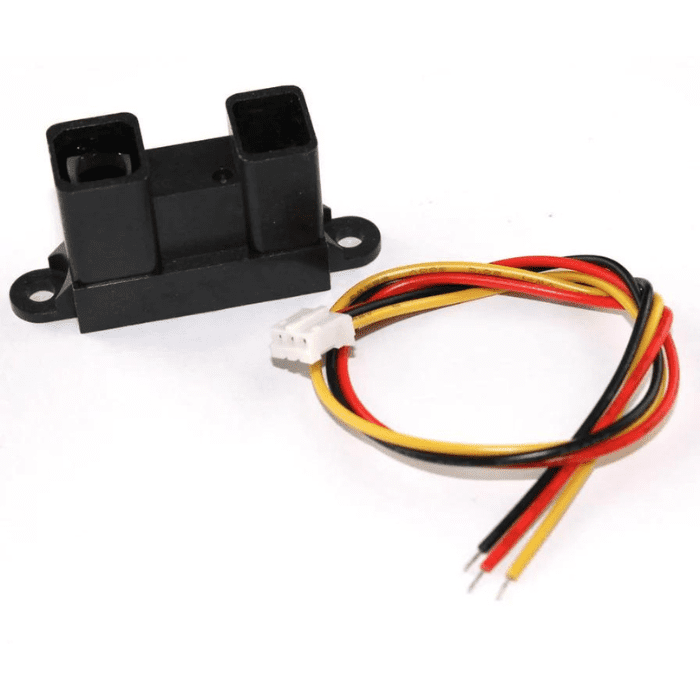

1 x Sharp GP2Y0A02 F 23 Digital Distance Measuring Sensor.
-
1 x Connecting Cable.
Specifications:
| Distance Measuring Range | 20 to 150 cm |
| Current | 33 mA |
| Voltage | 4.5 to 5.5 V |
| Dimensions | 29.5 x 13 x 21.6 mm |
| Weight | 5g |
