Description

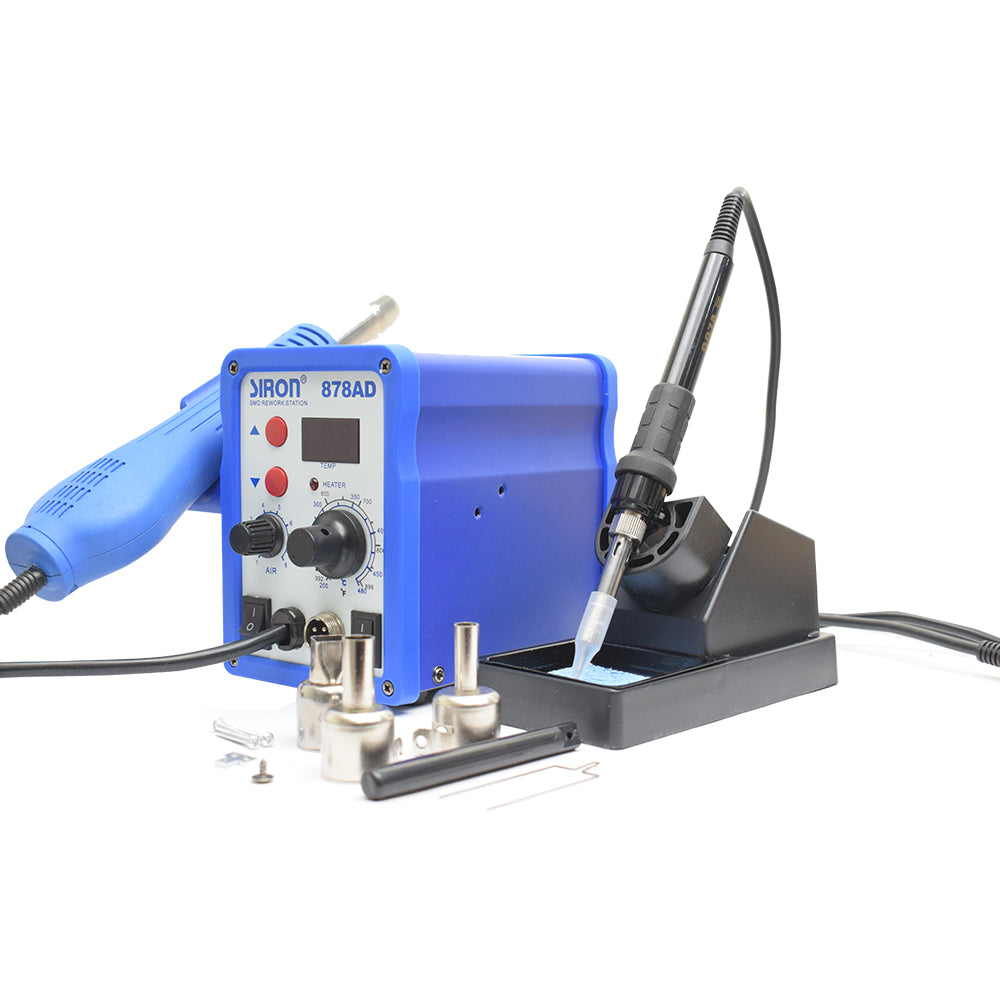

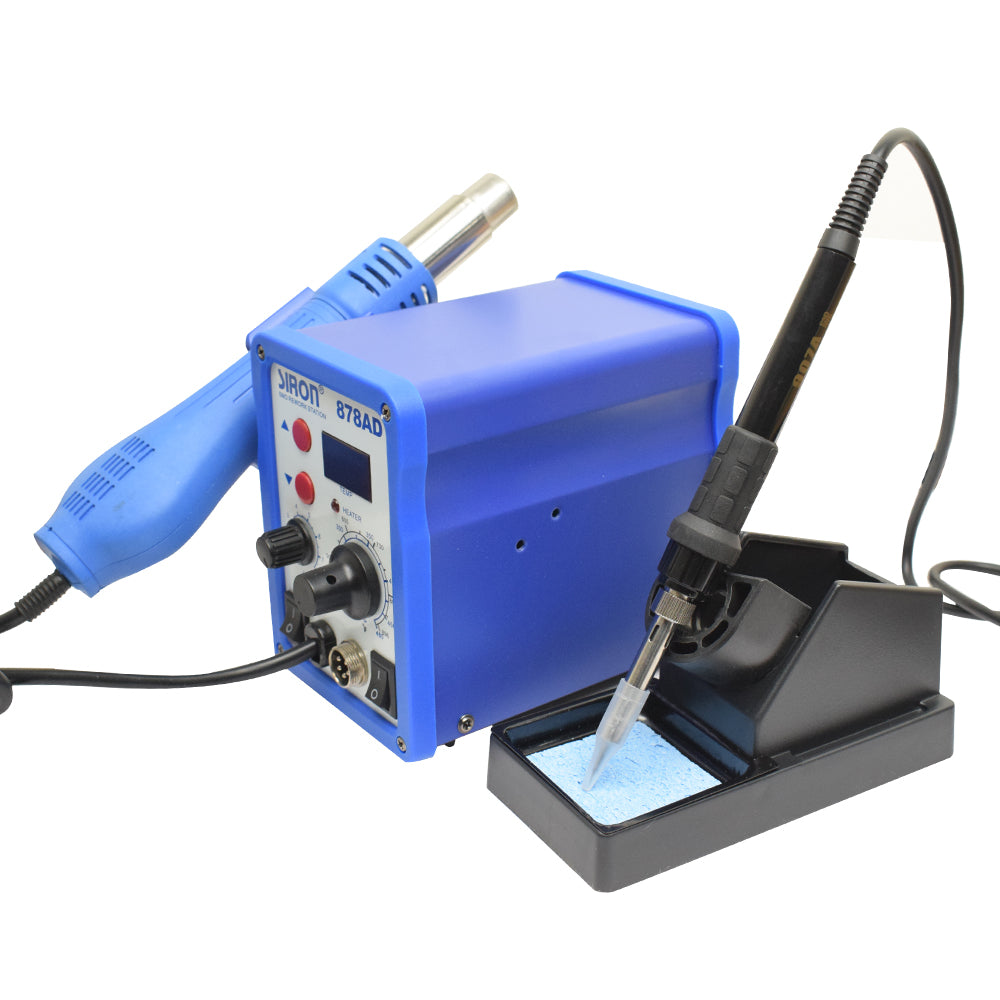

This Siron 878AD 2 in 1 SMD Rework Station, Its used in rework stage and hardware debugging application or SMD components mounting applications Etc. This is suitable for soldering and de-soldering operations on a board range of components. Eg- SOIC, CH-IP, QFP, PLCC, BGA, SMD and More. The unit is especially suited for de-soldering operations on-in-line Sockets. This can be use in for heat shrinking, drying, paint removal, defrosting, Pre-heating, glue, soldering and more.
Features:
- It has an indicator for real-time temperature tracking and compensation.
- It has control panel
- It has a hot air rework station which is used to mount and de-solder the SMD components.

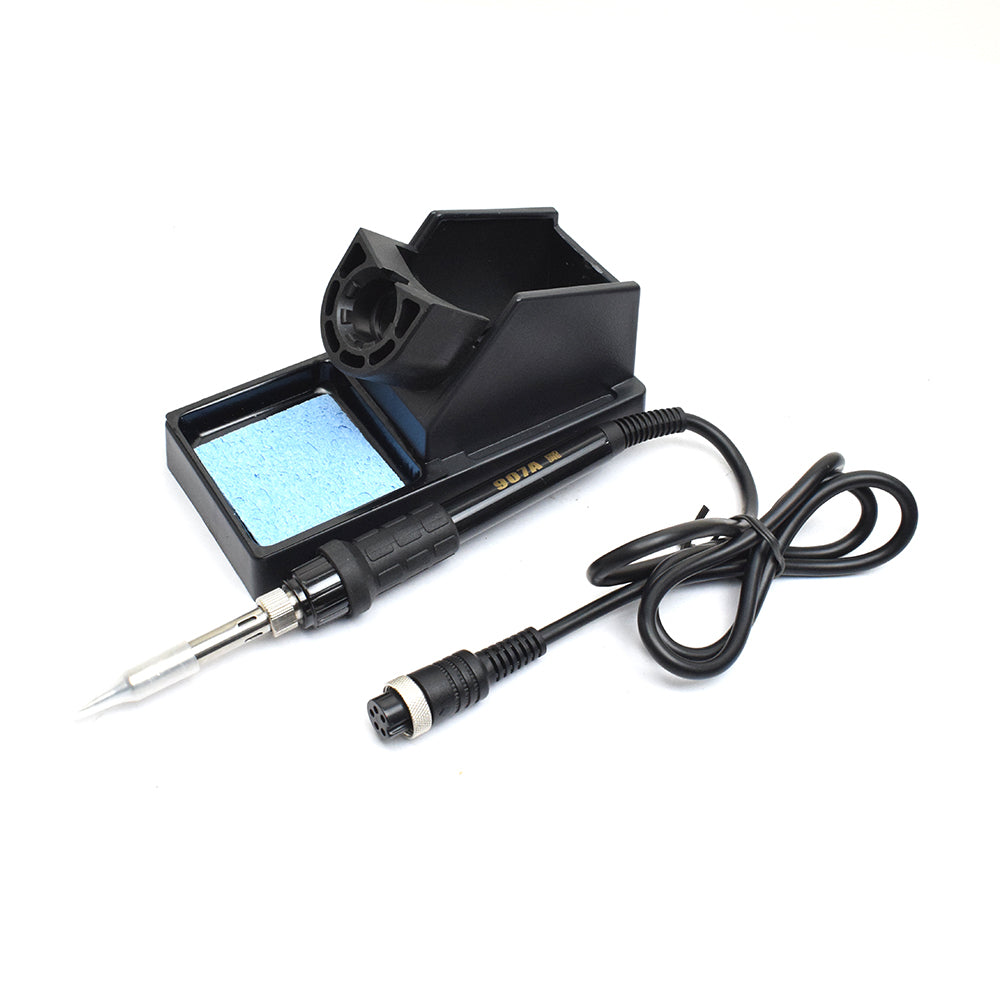

- Soldering Station is used to mount the through hole components.
Specification
| Model | 878AD 2 in 1 Rework Station |
| Type | Rework and soldering Station |
| Brand | Siron |
| Main Unit Dimension | L148xW99xH140mm +-5mm |
| Operating Ambient Temperature | 0-40 Degree Centigrade |
Hot Air Gun
| Air Delivery | Brushless Blower with Smooth air Delivery |
| Air Volume | 120L/min |
| Temperature Range | 100-480 Degree Centigrade |
| Display | LED Nixie Tube |
| Soldering Station | |
| Temperature Range | 200-480 Degree Centigrade |
| Display | LED |
| Soldering | <2 Ohm |
| Country of Origin | China |
