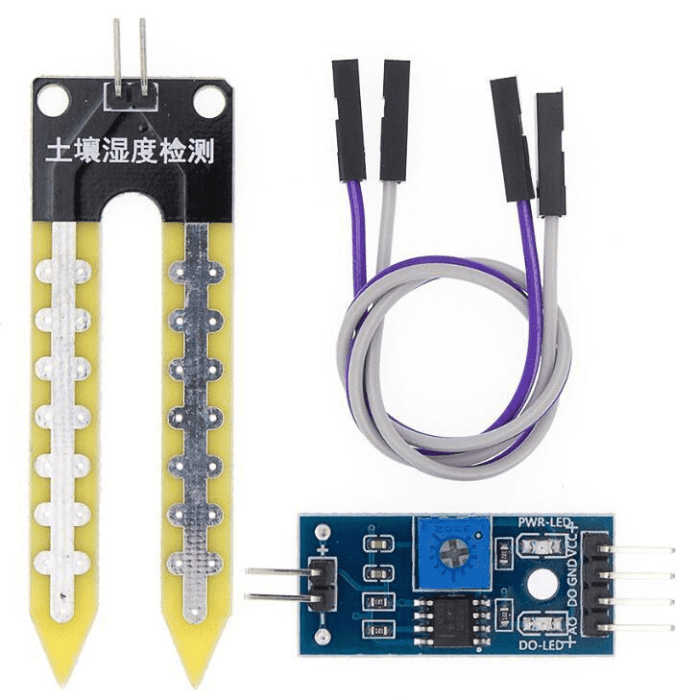

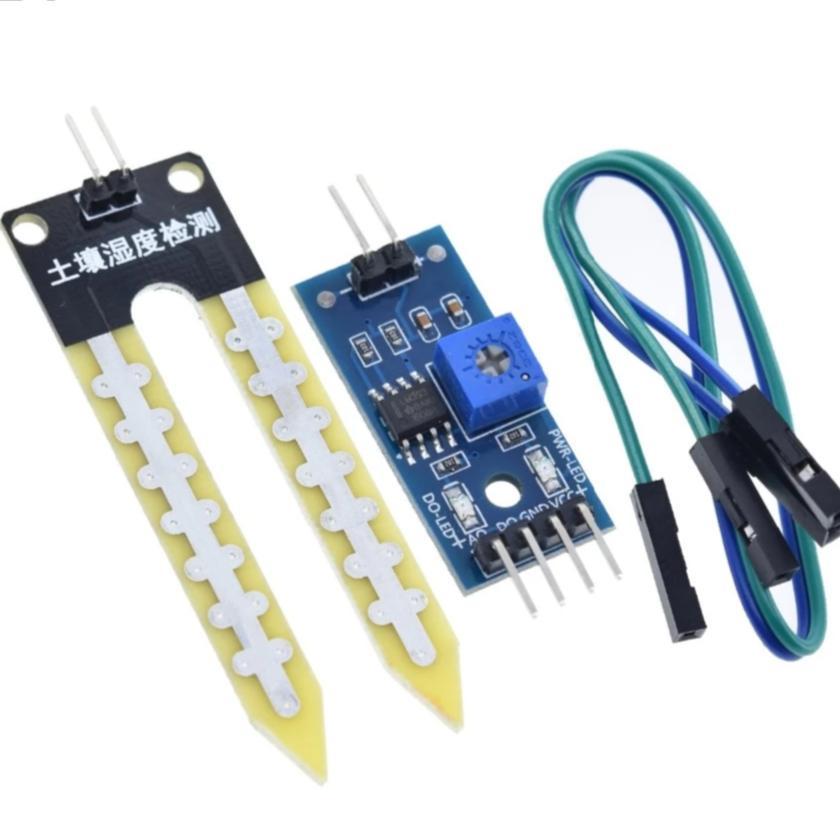

Soil Moisture Sensor Module
This is a Soil Moisture Sensor or Soil Humidity Sensor. With this module, you can tell when your plants need watering by how moist the soil is in your pot, garden, or yard.
Use it in a home automated watering system, hook it up to IoT, or just use it to find out when your plant needs a little care. Installing this sensor and its PCB will have you on your way to growing a green thumb!

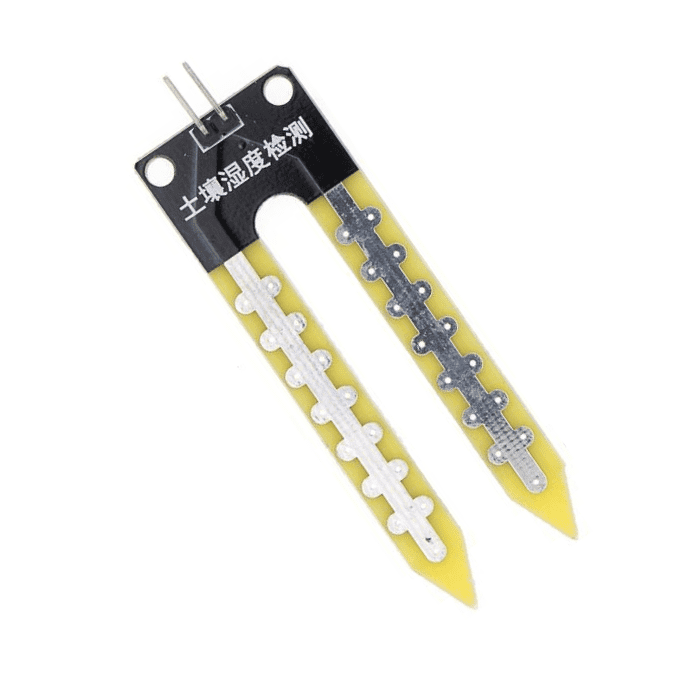

This soil moisture sensor consists of two probes which are used to measure the volumetric content of water. The two probes allow the current to pass through the soil and then it gets the resistance value to measure the moisture value.
Applications:
- DIY Agriculture Projects.
- DIY Plant Watering System.
- Agriculture
- Horticulture
- Ecological Environmental Protection
- Water Resource Management
- Research and Education
Also check the Automatic Plant Watering System Kit includes components such as a relay module, mini water pump, plastic battery storage case holder, jumper wires, vinyl tubing, and a soil moisture detector module.
Features:
- Operating voltage: 3.3V to 5V
- Dual output mode for accuracy
- Easy installation with bolt-hole
- Power (red) and digital output (green) indicators
- LM393 comparator chip for stability
- Digital output (D0) for moisture detection
- Uses two probes to measure soil water content

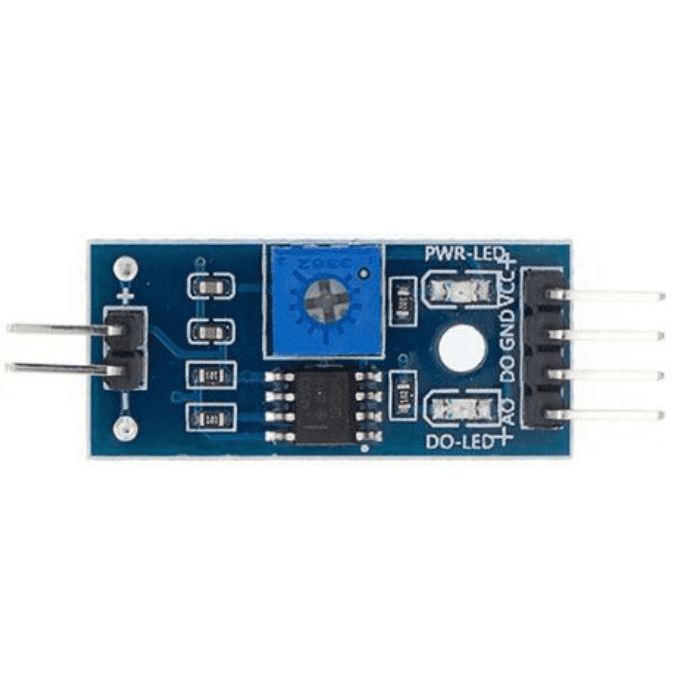

Soil Moisture Sensor pinout
Package Includes:
- 1 x Soil Moisture Sensor Kit
Specifications:
| Sensor Type | Soil Moisture Sensor |
| Operating Voltage (VDC | 3.3 ~ 5 |
| PCB Dimension | 3cm x 1.5cm |
| Soil Probe Dimension | 6cm x 3cm |
| Cable Length (CM) | 20 |
| Weight | 50 grams |
Build your Automatic Plant Watering System with Arduino:
To download the code Click Here
