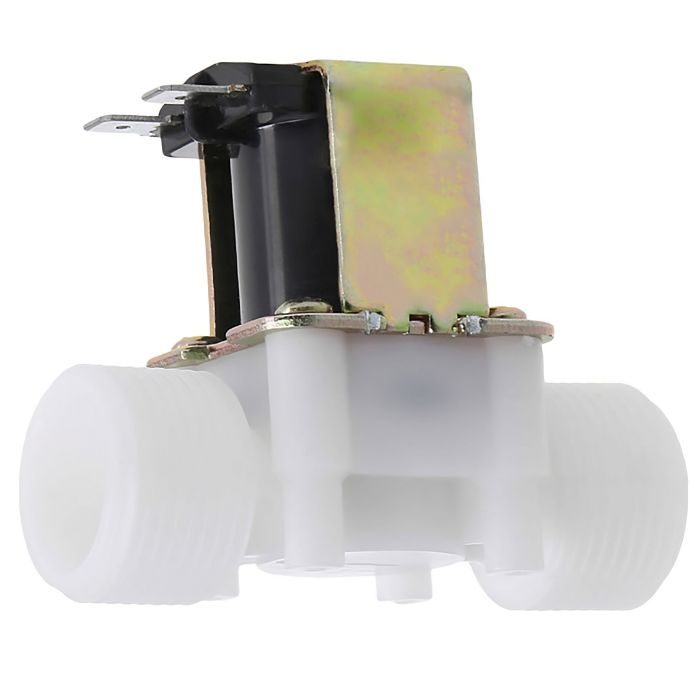

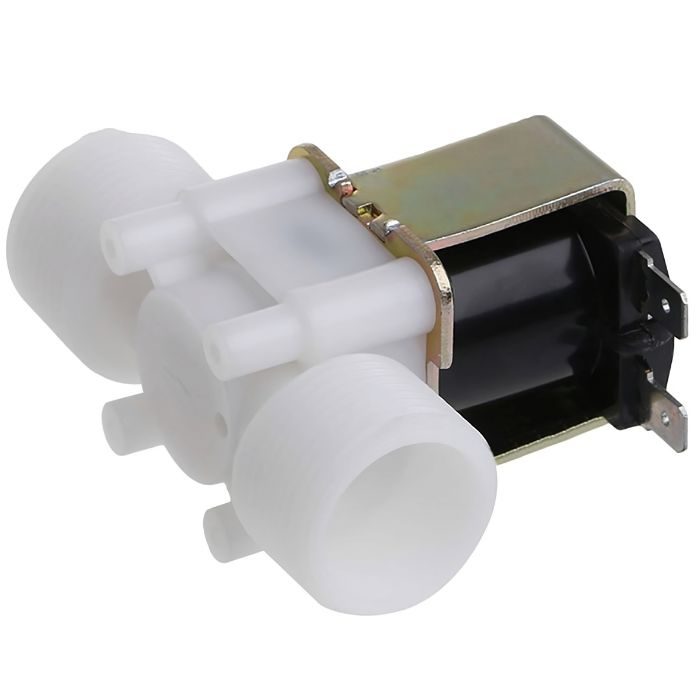

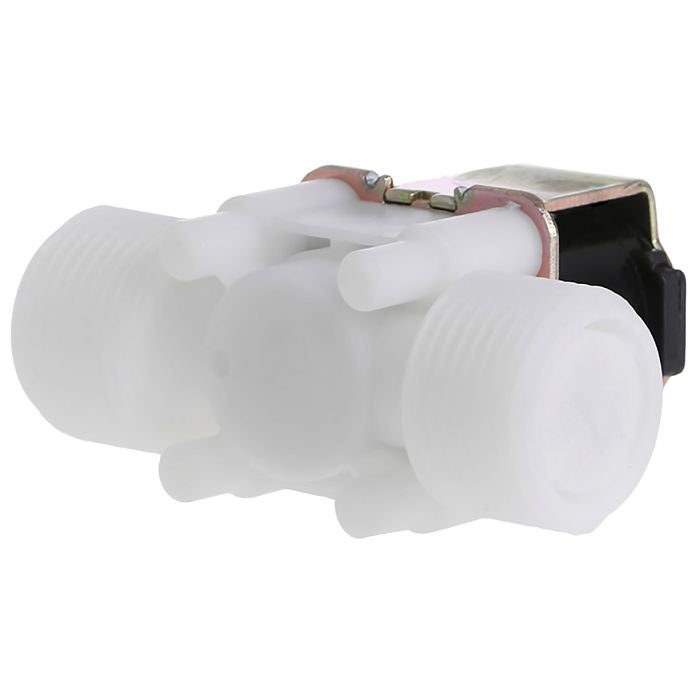

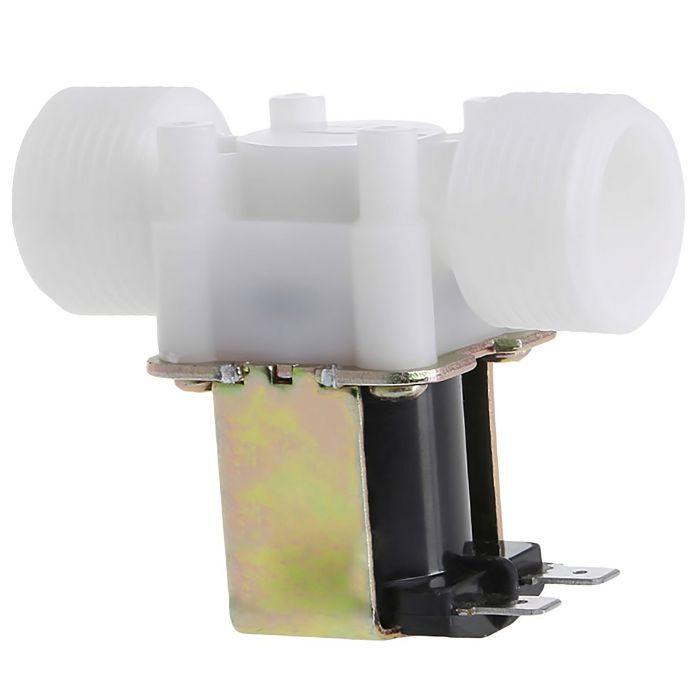

Solenoid valve switch 12V DC 1/2 inch (Normally Closed)

12V DC 1/2 inch Solenoid valve switch

12V DC 1/2 inch Solenoid Water Air Valve Switch (Normally Closed) –  controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid! This liquid valve would make a great addition to your robotic gardening project. There are two ½” (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens and water can push through.

The 12 volt solenoid valves works with the solenoid coil which operates electronically with DC 12 volt supply. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage is removed.

Note:  While Connecting the Valve in the Flow pipeline, you need to mind the Input and Output directions of the valve. It will work only if you connect it in the right direction. (Hint: Inside the value, at one side you will find the filter this is the input side of the value).

Features:

• Compact and convenient.
• Easily installed and serviced Precise and reliable.
• The installation direction can be arbitrary Angle
• Pressure-regulating valve (steady flow valve) function similar to the water flow switch Not only can it provide a steady flow, but it also prevents the dry burning.
• Suitable for fluids like water, oil, air

Applications:

• The 12V solenoid Valve can be used in Refrigeration systems to reverse the flow of refrigerants. This helps in cooling during summer and heating during winter.
• Irrigation systems use solenoid valves with automatic control.
• Dishwashers and washing machines use solenoid valves to control the flow of water.
• Air conditioning systems use solenoid valves to control air pressure.
• Solenoid valves are used in automatic locking systems for door locks.
• Medical and dental equipment use solenoid valves to control the flow, direction, and pressure of the fluid.
• Water tanks use solenoid valves to control the inflow or outflow of water, often in combination with a float switch.
• Car washes to control the water and soap flow.
• Industrial cleaning equipment.

Package Includes:

• 1 x Solenoid valve 12V

Specifications:
