Description

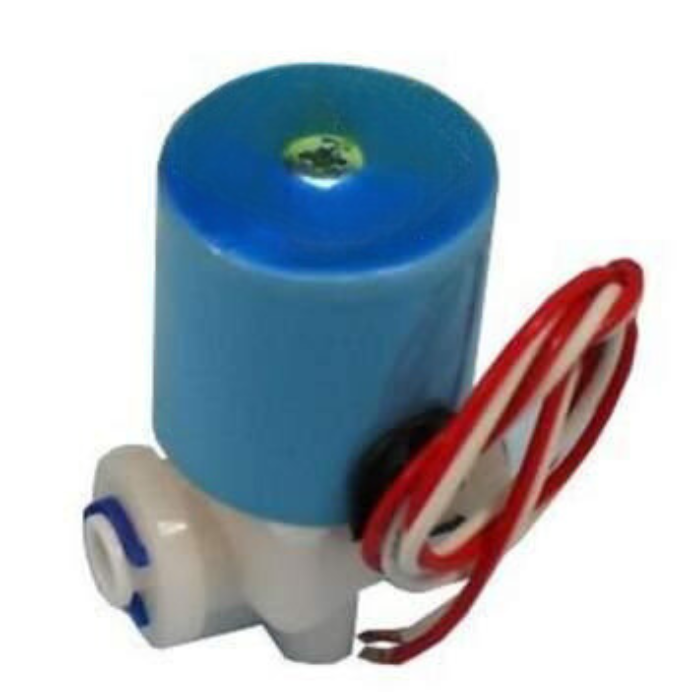

Solenoid Valve 12v 1/4 inch (Blue)
12V DC Solenoid Water Air Valve Switch (Normally Closed) – 1/4″ controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid. There are two ½” (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens and water can push through. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage is removed.
This is a 2 way Solenoid Valve sensor. So, it has has 2 connections, one of them is liquid inlet and other is outlet. It accepts DC voltage of 12V. When there is input voltage on the Solenoid Terminals, it operates, and opens up, allowing the liquid to flow from inlet to outlet.
The Solenoid has push fit connectors on each side. So, this connector will allow us to directly push the pipe or nozzle into the solenoid without worrying of leaking.
read more : Solenoid Valve - How They Work
Package Includes:
- 1 x Solenoid Valve 12v (Blue)
Solenoid Specifications:
| Working Pressure | 0-120PSI |
| Orifice | 2.5mm |
| Voltage | 12v DC |
| Dimensions | 5 x 5 x 5 cms |
| Weight | 25 grams |
