Description

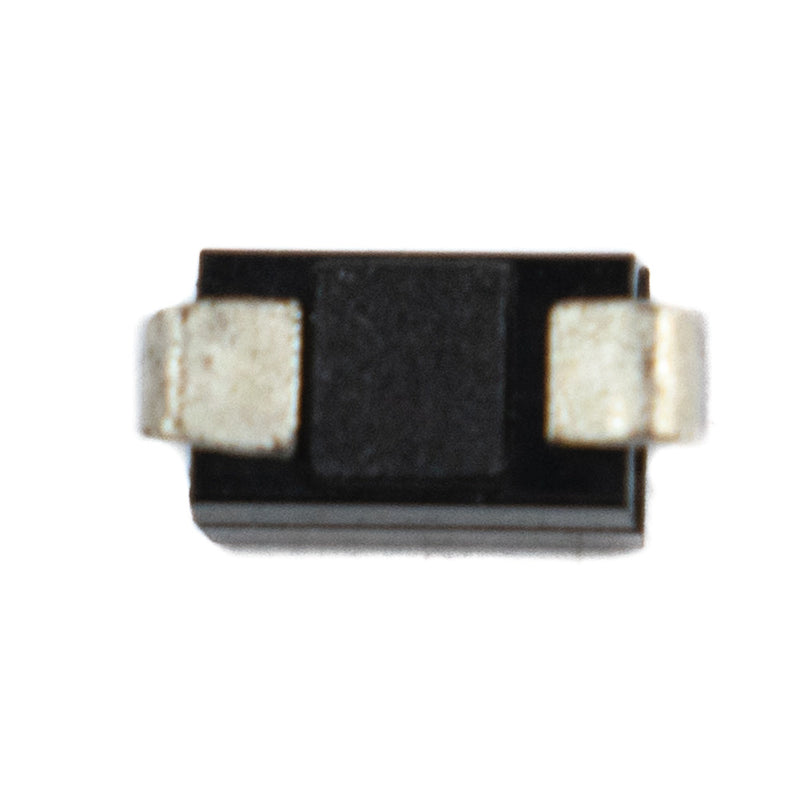

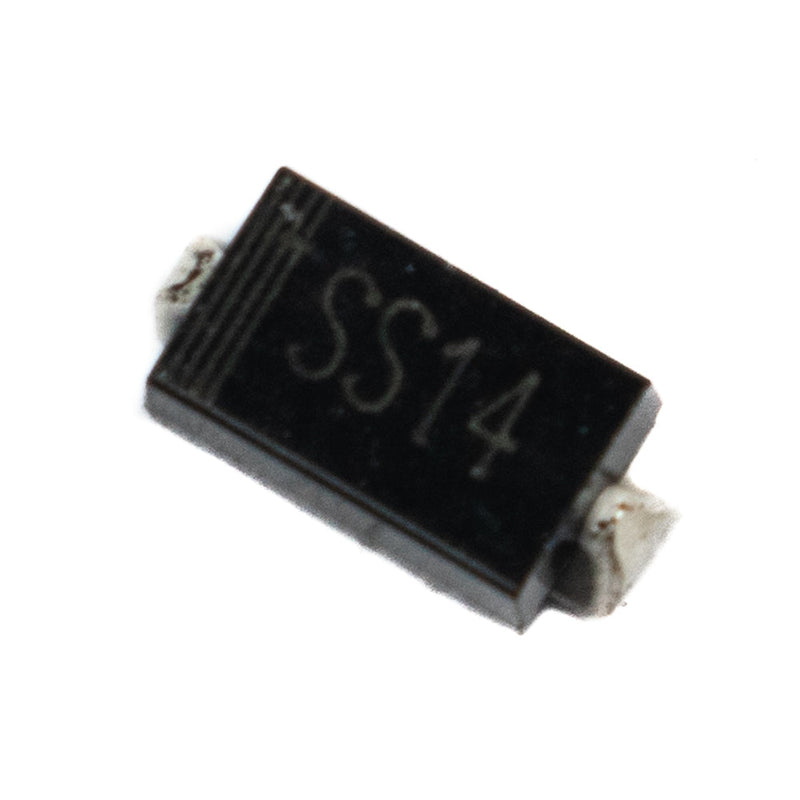

The SS14 Schottky diode in DO-214AC package is a surface-mount version of 1N5819. Its low-profile packaging makes it perfect for automated placement. SS14 has overvoltage protection, minimal power losses, and high efficiency. SS14 is also known for its low forward voltage drop and good surge capability. These are widely utilised in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
Specifications
| Model | SS14 |
| Max. Repetitive Peak Reverse Voltage | 40V |
| Max. RMS Voltage | 28V |
| Maximum Average Forward Rectified Current | 1A |
| Rate of Change of Voltage (dv/dt) | 10000V/µs |
| Operating Junction Temperature | -65°C to 150°C |
| Package | DO-214AC |
| Quantity | 2000 Pieces |
| Country of Origin | China |
