Description

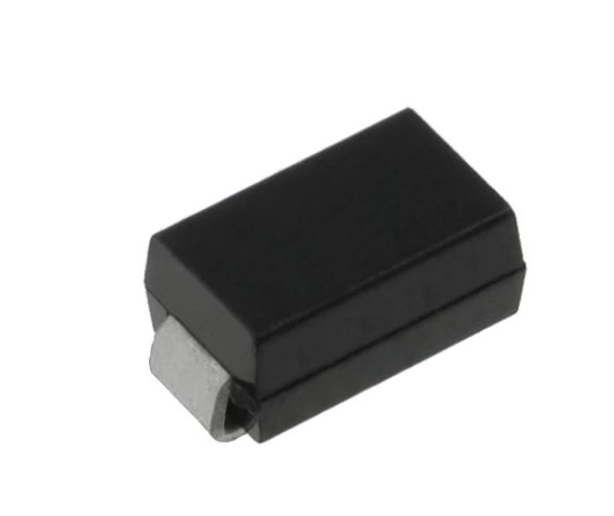

The SS210 100V 2A Schottky Barrier Rectifier Diode DO-214AC Package. It is a general-purpose Schottky rectifier with good efficiency and little power loss included in the SS210 The clip-bonded leg construction offers both a high thermal performance and low electrical resistance. These rectifiers provide for reverse polarity protection‚ secondary rectification‚ and freewheeling. The Little compact surface mountable bundle of janet leads. Rectangular package automated handling. High stability oxide passivated junction. Uses of SS210 include polarity protection‚ freewheeling‚ and low voltage‚ high frequency inverters.
Features:
- Metal silicon junction‚ majority carrier conduction
- Its used For surface mounted applications
- It has Low power loss
- Its efficiency is High
- High forward surge current capability
- Its used in Inverter‚ snubber circuit‚ Free wheeling‚ SMPS etc.
| Specifications | |
|---|---|
| No. of Pins | 2 |
| Part Number | SS210 |
| Forward Current | 2A |
| Forward Voltage | 0.85V |
| Mounting Style | SMD |
| Operating temperature | -55 to 125 |
| Current | 2A |
| Type | Schottky Rectifier Diode |
