Description

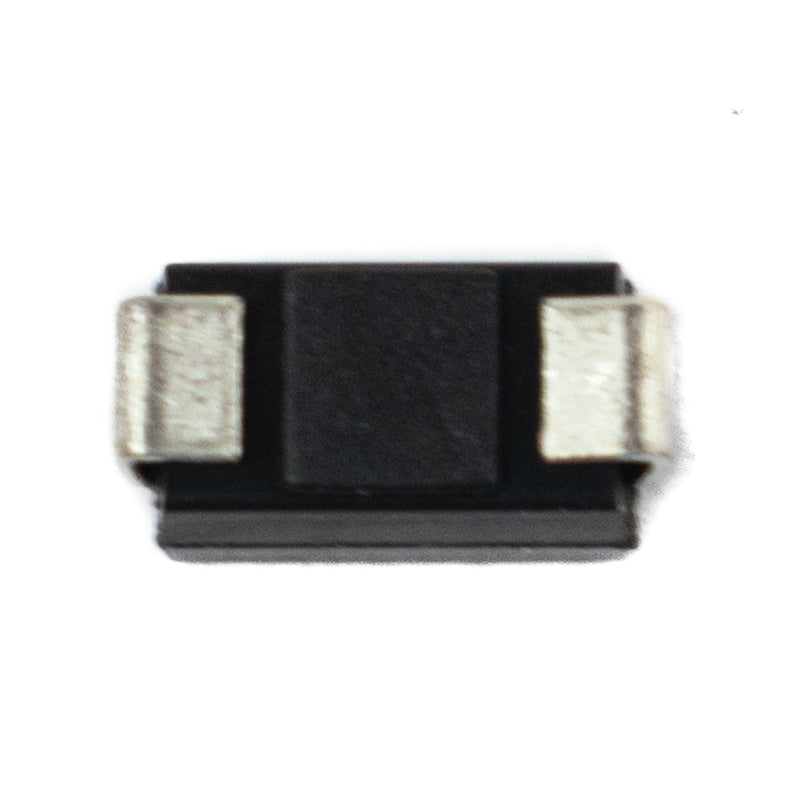

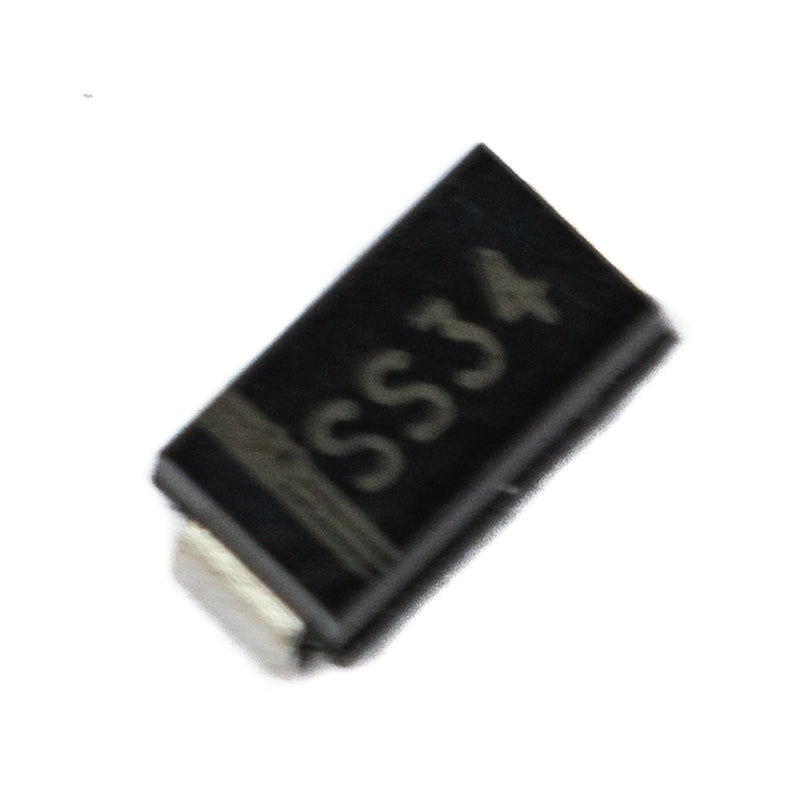

The SS34 Schottky diode in the DO-214AC package is a surface-mount version of 1N5822. Its low-profile packaging makes it perfect for automated placement. SS34 has overvoltage protection, minimal power losses, and high efficiency. SS34 is also known for its low forward voltage drop and good surge capability. These are widely utilised in low voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
Specifications
| Model | SS34 |
| Max. Repetitive Peak Reverse Voltage | 40V |
| Max. RMS Voltage | 28V |
| Maximum Average Forward Rectified Current | 3A |
| Rate of Change of Voltage (dv/dt) | 10000V/µs |
| Operating Junction Temperature | -55°C to 150°C |
| Package | DO-214AC |
| Quantity | 2000 |
| Country of Origin | China |
