Description

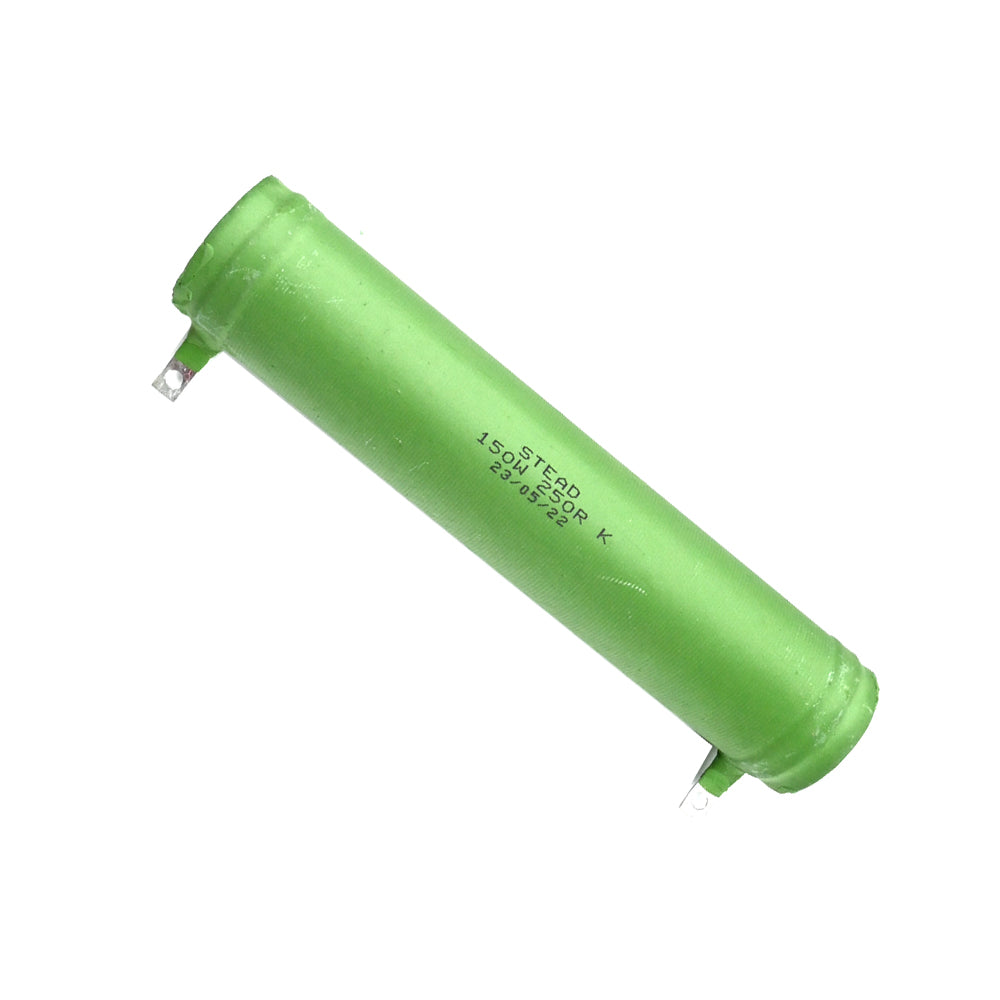

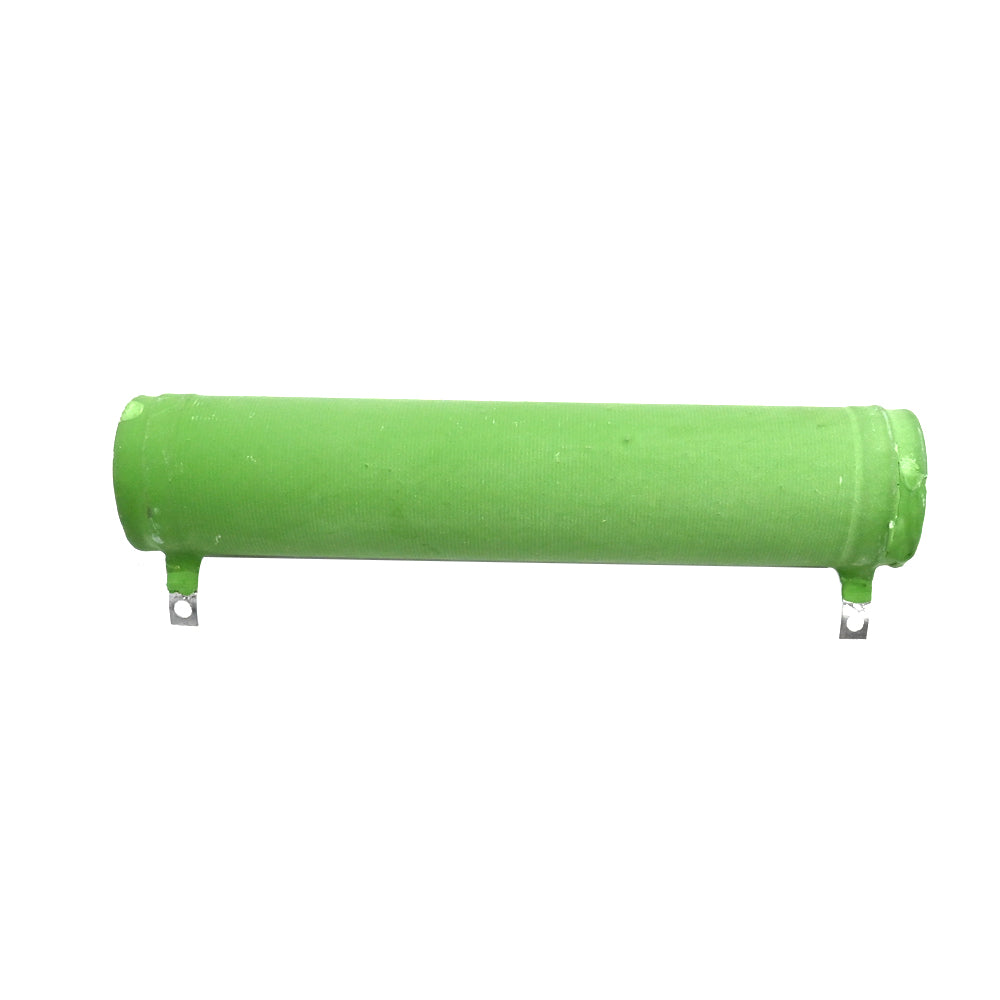

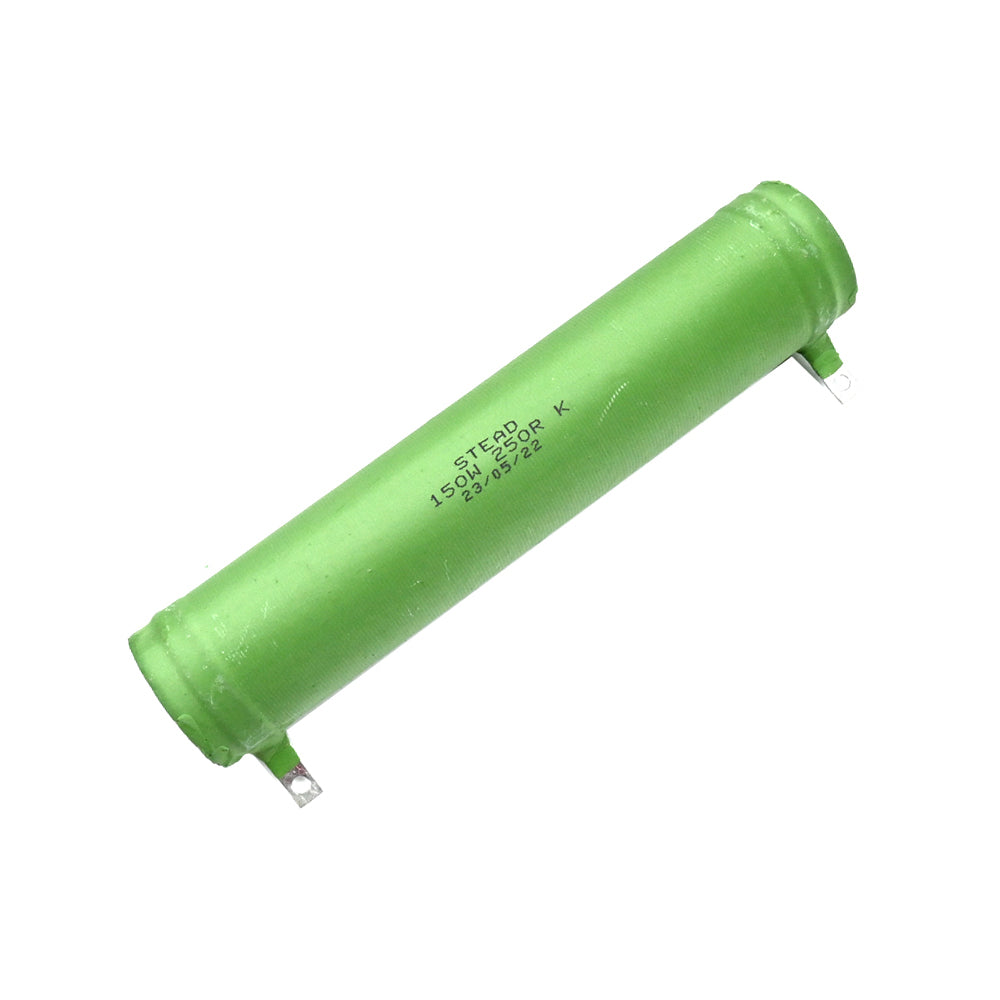

Its Stead 250 Ohm 150W Silicon Coated Fixed Wire Wound Resistor. It is a passive electrical device that controls the current flow. It is a hollow cylinder having two Clip connections at the sides of its terminal .The ceramic and the wire wound assembly over it are covered by silicone. This coating ensures that the rheostat is tolerant to temperature variations, moisture, and oil and is very well electrically insulated. The resistive element is an insulated metallic wire wound around a non-conductive substance core. The high-resistivity wire material typically comprises nickel-chromium (Nichrome), a copper-nickel-manganese alloy. Glass, plastic, and ceramic are typical core materials. Its value is 100 Ohm and its manufactured by Stead Electronics.
Applications:
- It's used in Circuit breaker fuses to make the fusible resistor
- Battery-testing equipment.
- X-ray equipment Flowmeters.
- Power supplies Medical Equipment.
- Transducers Instrumentation.
- Lighting controls.
- Telecommunications.
- Machine tools.
Specifications:
| Model | 150W 250R |
| Material Type | Silicone Coated |
| Type | Clip End |
| Tolerance | 10% |
| Power | 150W |
| Resistance | 250 Ohm |
| Dimensions | 171.2mmx7.9mmx47.1mm |
| No. of Clip | 2 |
| Country of Origin | China |
