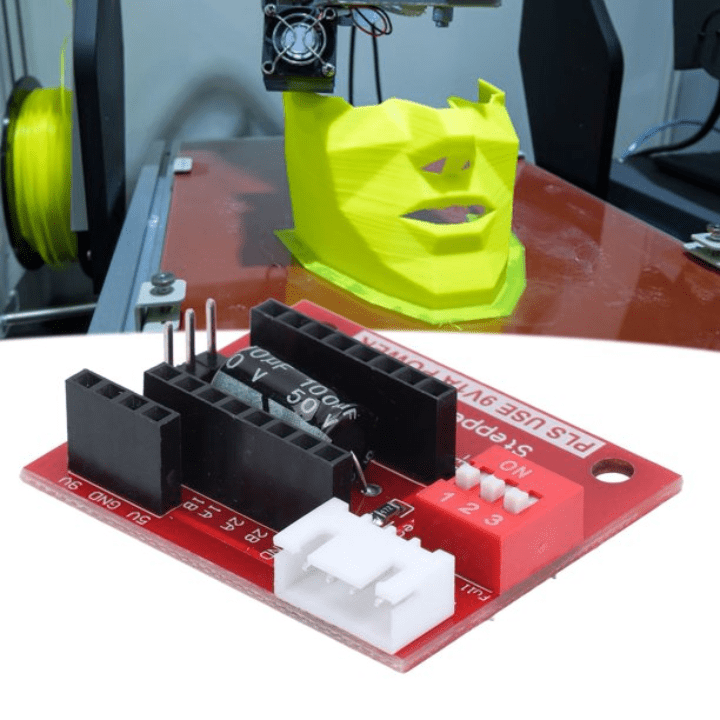

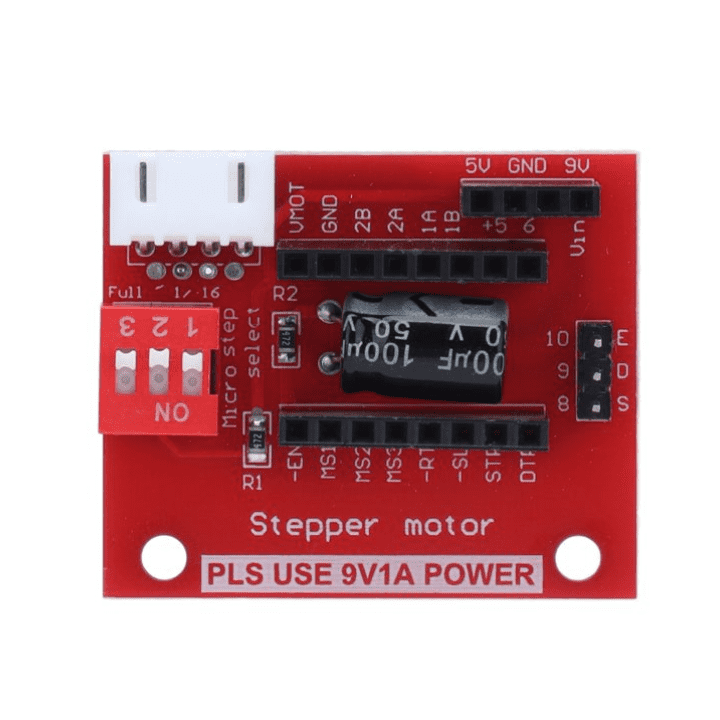

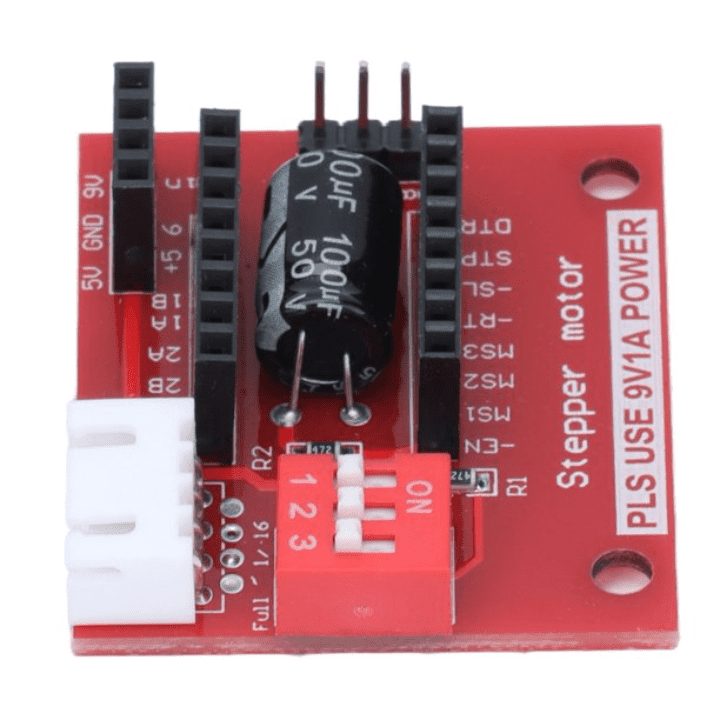

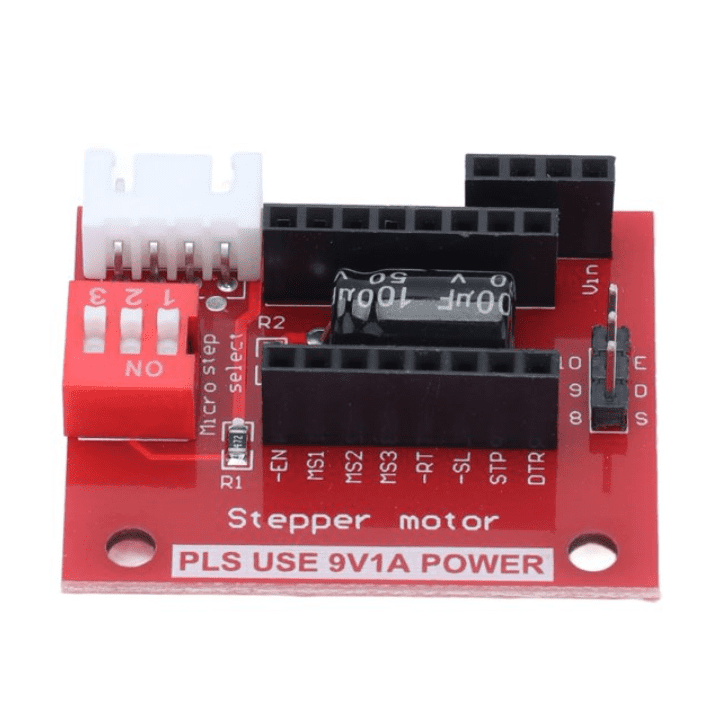

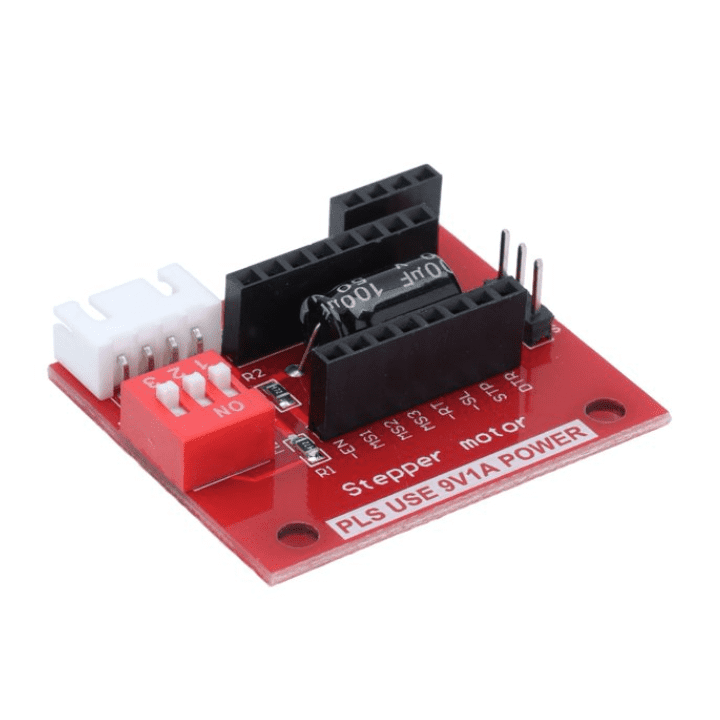

Stepper Motor Driver Expansion Board | A4988/8825 Driver Module for 3D Printer 42 CH Stepper Motor
This A4988 / DRV8825 Stepper Motor Driver Expansion Board for 3D Printer Parts is used to extend the A4988 or DRV8825 stepper motor driver module. You can use A4988 / DRV8825, take care of the direction when inserting, or it may burn down the driver. The jumper hits the position of ON DP to indicate 16 subdivisions (4988) or 32 subdivisions (8825).
Key features:
- All jumpers hit the ON position to indicate 16 subdivisions (4988) or 32 subdivisions (8825).
- Has a thermal extinguishing circuit
- Ground connection protection
- 3 keys for micro-stepping settings
- Short circuit protection
- Small in size, easy to install and use.
check out : A4988 Stepper Motor Driver Module with Heat Sink For 3D Printer (Red)
Note:
- Terminal power connector for easy connection of drive power.
- Suitable for 42 stepper motor drivers, 3D printers, and DIY.
- Highly integrated expansion board, small size, stable performance.
Package Includes:
- 1 x A4988/8825 Driver Module for 3D Printer 42 Stepper Motor
Specifications:
| Logic voltage | 5V |
| Input voltage | 12-30V |
| Ports | Digital |
| Interface | Direction, enable, speed |
| Applicable module | For A4988 / DRV8825 |
| Dimensions (mm) | 42 x 42 x 10 |
