Description

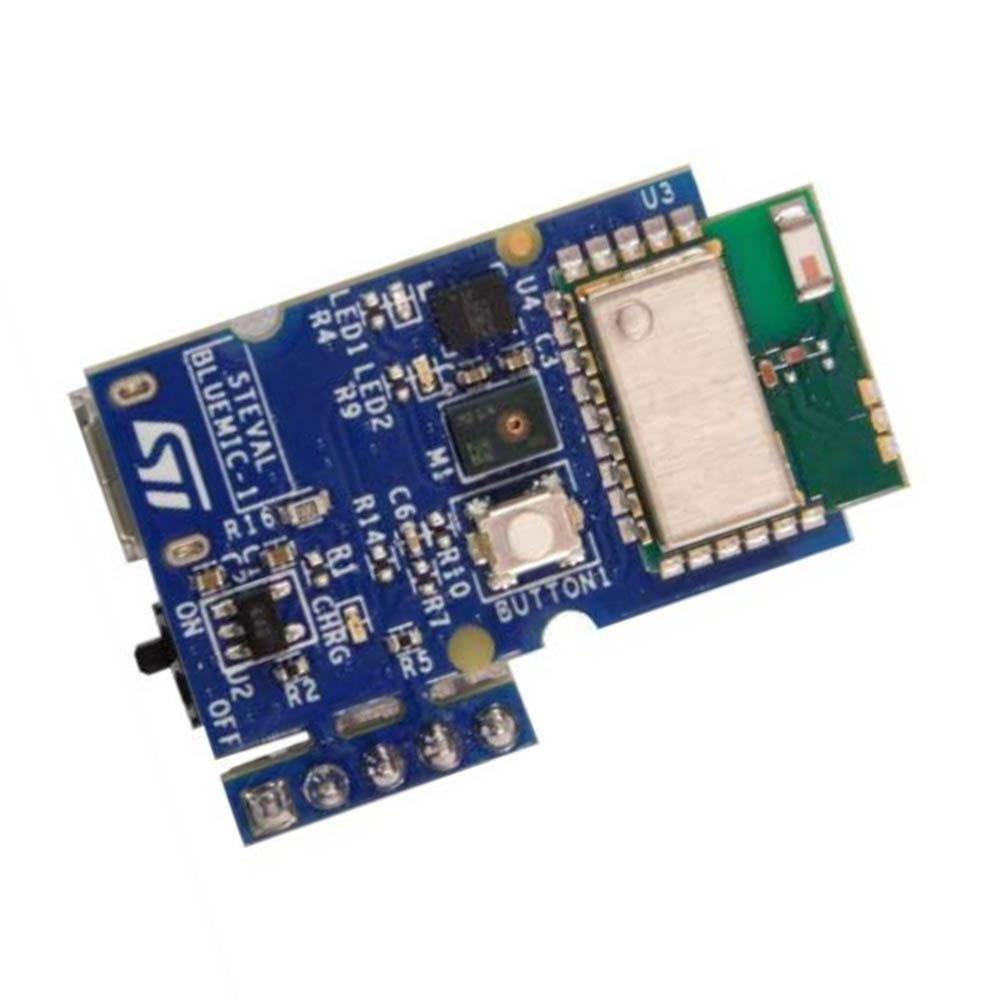

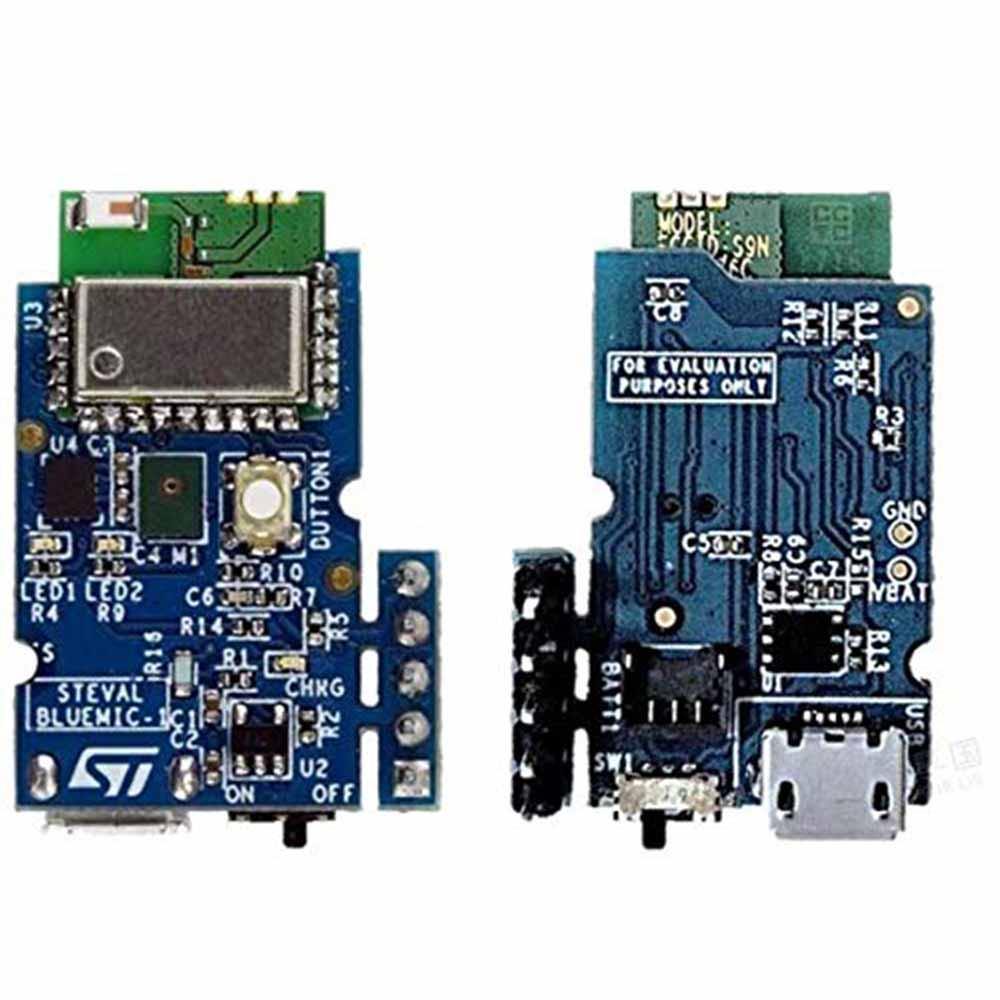

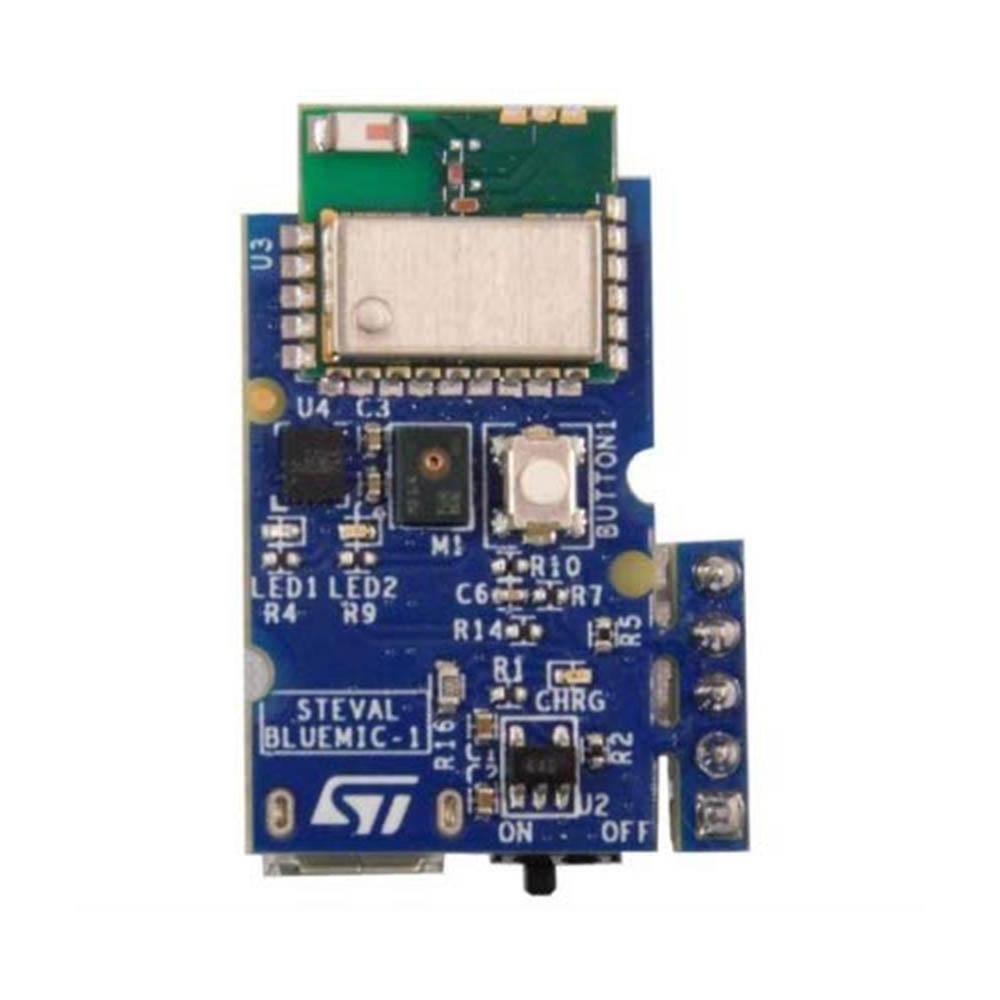

Steval Bluemic 1 Evaluation Board
The STEVAL-BLUEMIC-1 Evaluation Board incorporates an ultra-low power Bluetooth® SMART Application Processor that meets the requirements of BT specification v4.2. This board has a complete SW development kit, including the Bluetooth low energy stack, necessary drivers for audio and inertial data acquisition, and documentation. The STEVAL-BLUEMIC-1 is engineered for developing Bluetooth audio applications that demand high-quality sound. Its capabilities extend to low-power, highly-efficient voice control for remote controls and the Internet of Things (IoT) applications.
The STEVAL-BLUEMIC-1 Evaluation Board features an SPBTLE-1S Bluetooth® SMART Application Processor, a 32-bit ARM® Cortex®-M0 core with outstanding performance. This module includes GPIOs, SPI, I2C, USART, PCM, ADC, and timers. The board also comprises an STBC02 Li-Po battery charger, an SPV1050 ultra-low-power energy harvester, and an MP23AB01DH MEMS microphone. This evaluation board adheres to CE, FCC, IC, and ARIB certifications.
Features:
- Ultra-low power Bluetooth® SMART Application Processor compliant with BT specification v4.2
- Complete SW development kit that includes the Bluetooth low energy stack, all the necessary drivers for audio and inertial data acquisition, and documentation
- Designed to enable the development of Bluetooth audio applications where good quality sound is required and extends to low-power, highly-efficient voice control for remote controls, as well as the Internet of Things (IoT) application
- Comes with a SPBTLE-1S Bluetooth® SMART Application Processor, a high-performance 32-bit ARM® Cortex®-M0 core
- Offers a full set of peripherals, including GPIOs, SPI, I2C, USART, PCM, ADC, and timers
- Features an STBC02 Li-Po battery charger, a SPV1050 ultra-low-power energy harvester, and an MP23AB01DH MEMS microphone
- Compliant with CE, FCC, IC, and ARIB certifications
Applications:
- Bluetooth Low Energy application
- Headsets
- Remote controls
- Health and fitness monitoring devices
- Environmental sensors
Package Includes:
- 1 x STEVAL-BLUE MIC-1 evaluation board
Specifications:
| Evaluation Board Type | Steval BlueMic |
| Dimensions | 5 x 3 x 1cms |
| Weight | 15 grams |
