Description

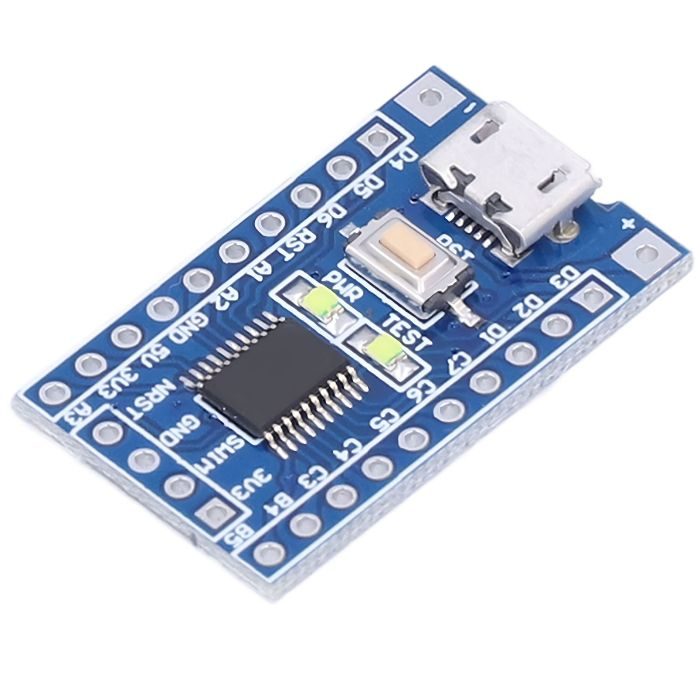

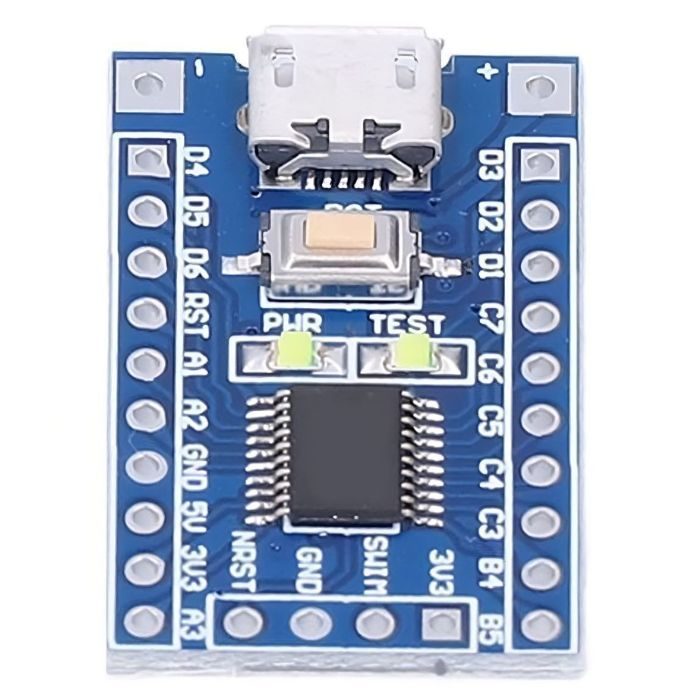

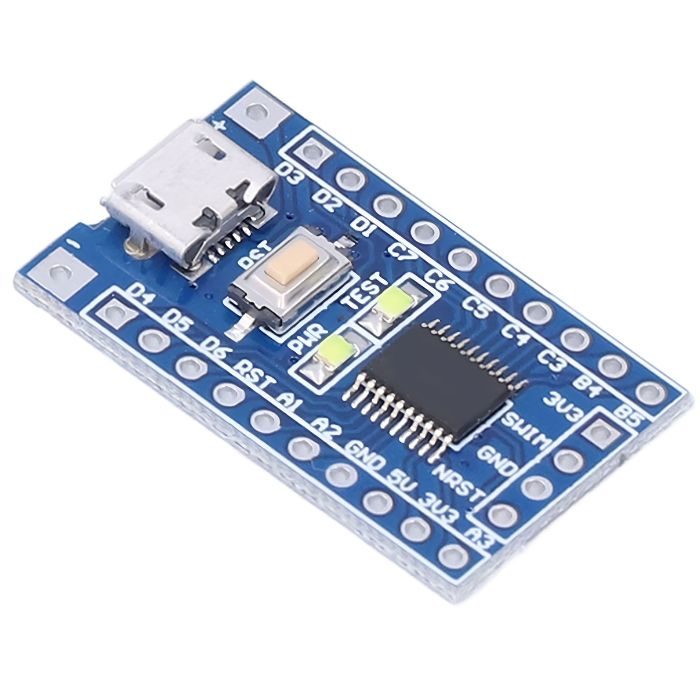

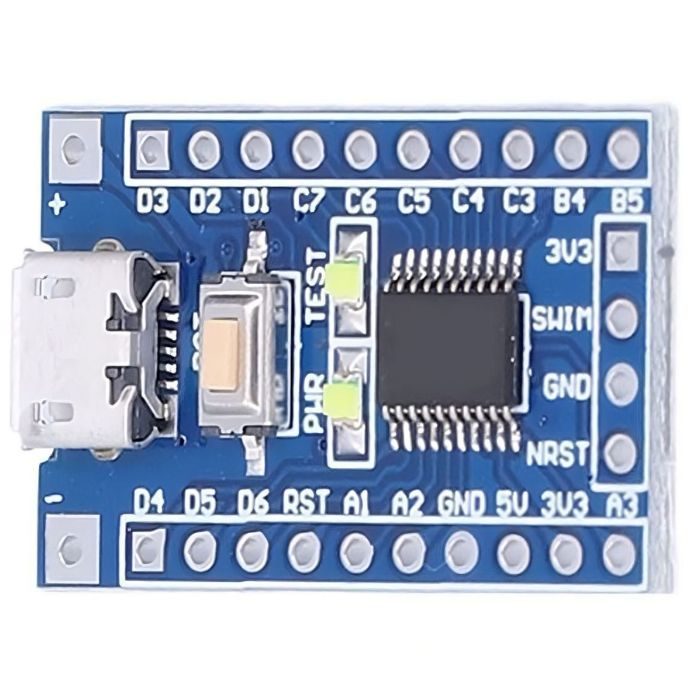

STM8S103F3P6 Development Board
The Core Board STM8S103F3P6 STM8 Development Board Minimum System Board has the advantage of using the Micro USB to connect to the power. The Micro USB line is compatible with Smartphone cables, so we can easily obtain data. We do not use the USB MINI cable to connect to power because it is out of style and difficult to obtain. This STM8S development board catches our eye because of its low price, human-like design, and complete information. You can use 2.54 pin on the board or power supply pad, and when using the power supply, the pad can output to the outside through pin 3.3V!
This development board is powered by a Micro USB cable and is compatible with smartphone lines; data lines are simple and easy to obtain; however, it is not USB MINI line-powered; the USB MINI line is difficult to obtain and has been gradually phased out. Other manufacturers' products are used in the MINI-USB port, which is inconvenient for customers.
Features:
- Chipboard STM32F103C8T6 On board,
- SWIM interface and reset button
- Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V-15V.
- Power light and the Demo indicator light
- Leads all the pins and has detailed label for the Pins.
- Support SWIM debug mode.
Package Includes:
- 1 x STM8S103F3P6 Development Board
Specifications
| IC Chip | STM32F103C8T6 |
| Reset Button | YES |
| USB Type | Micro USB |
| Length (mm) | 30 |
| Width (mm) | 20 |
| Height (mm) | 5 |
| Weight (gm) | 4 |
