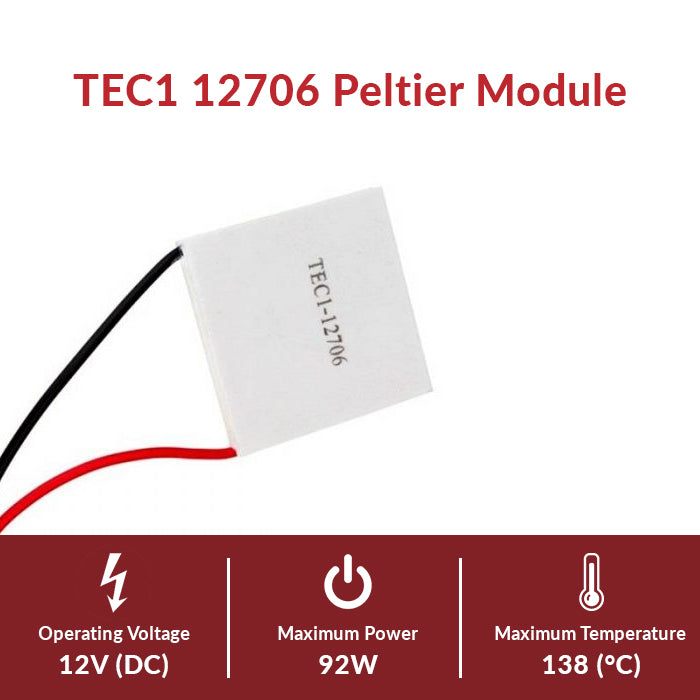

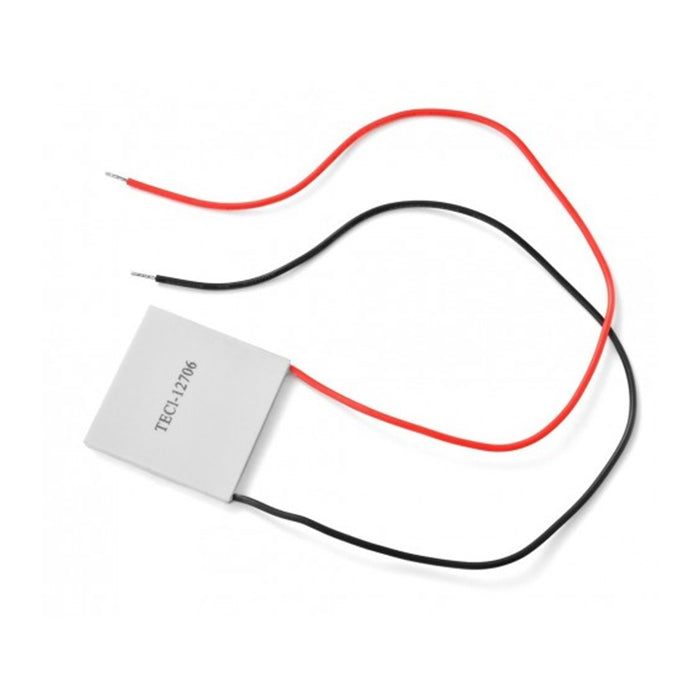

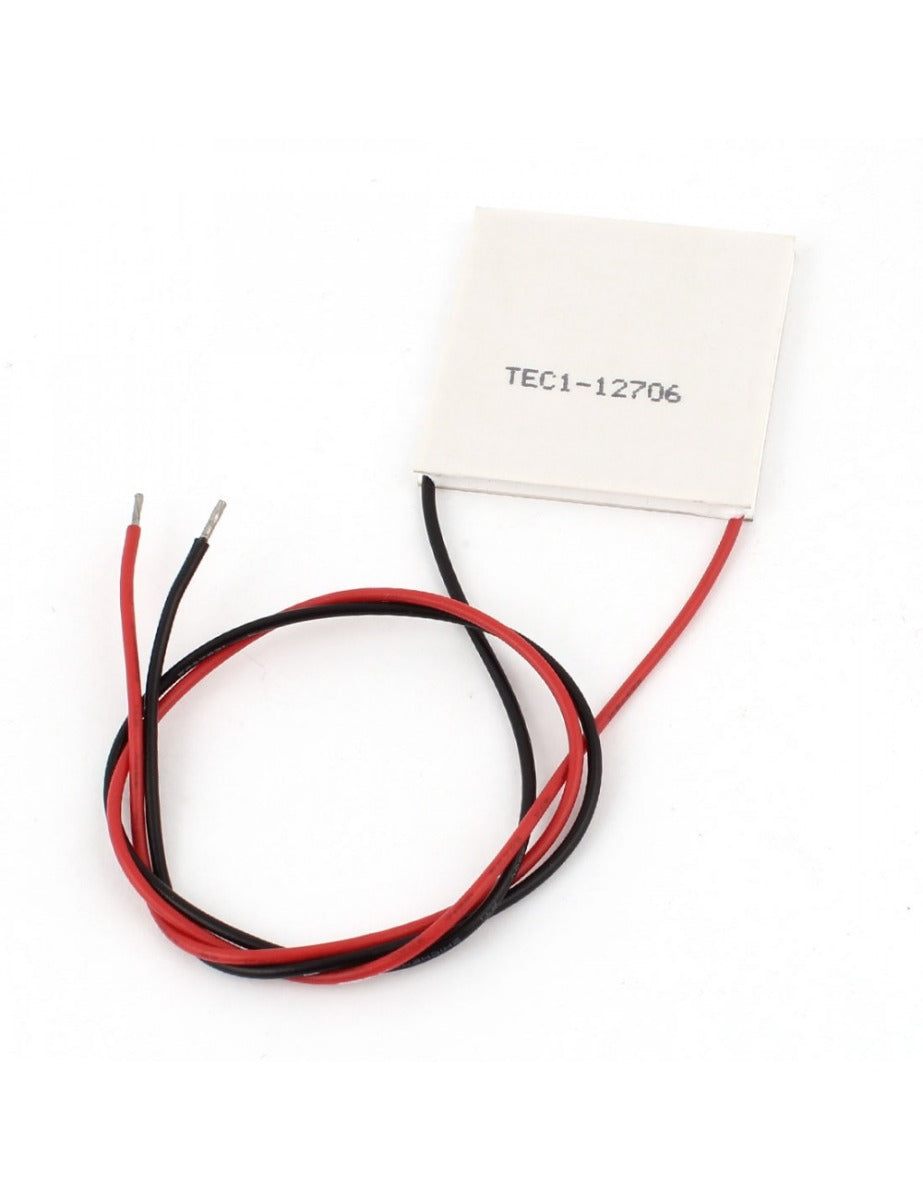

TEC1 12706 Peltier Module

The TEC1-12706 6A Thermoelectric Cooler Peltier Module is the simple application of the Peltier Thermoelectric Effect. The Peltier module features 127 semiconductor couples in the area of 40 x 40mm which very effectively cools and heats up to 90°C.

The thermoelectric cooler or TEC or Peltier module creates a temperature differential on each side. One side gets hot and the other side gets cool. They use to either warm something up or cool something down; above all, you can use either side. You can also take advantage of a temperature differential to generate electricity.

A thermoelectric cooler (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely useful in industrial areas, for example, computer CPUs, CCDs, portable refrigerators, medical instruments, and so on.

Tips:

  • Operating Temperature: 138 Degree C.
  • Do not exceed Imax or Vmax when operating a module.
  • Please carry out moisture protection options (sealing) in final application use.
  • Life expectancy: 200,000 hours.
  • Failure rate based on long-time testing: 0.2%.

Read our blog Peltier module working principle.

Applications:

  • Computer CPUs
  • CCDs
  • Portable refrigerators
  • Medical instruments

Also check DIY semiconductor cooling kit that includes a TEC1-12706 Thermoelectric Cooler Peltier Module.

Package Includes:

  • 1 x TEC1 12706 Peltier Module

Specifications:

Model TEC1-12706
Operating Voltage 12VDC
Maximum Operating Current 6.4A
Maximum Power  92W
Maximum Temperature 138 (°C)
Wire Length 200 mm
Dimensions  40 x 40 x 3.6mm
Weight  25 grams
