Description

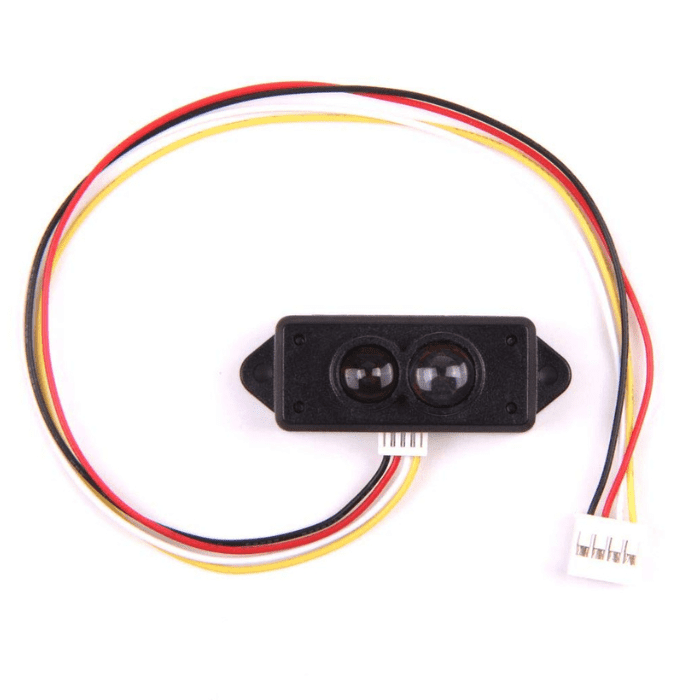

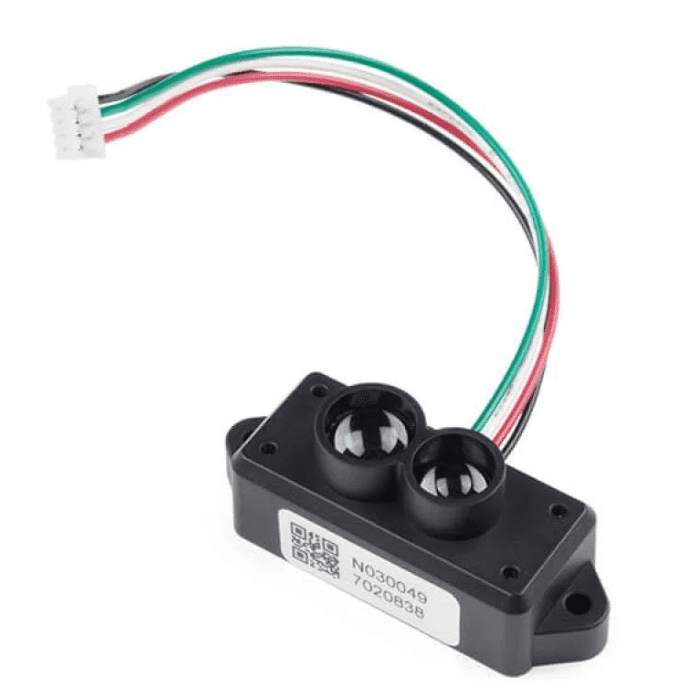

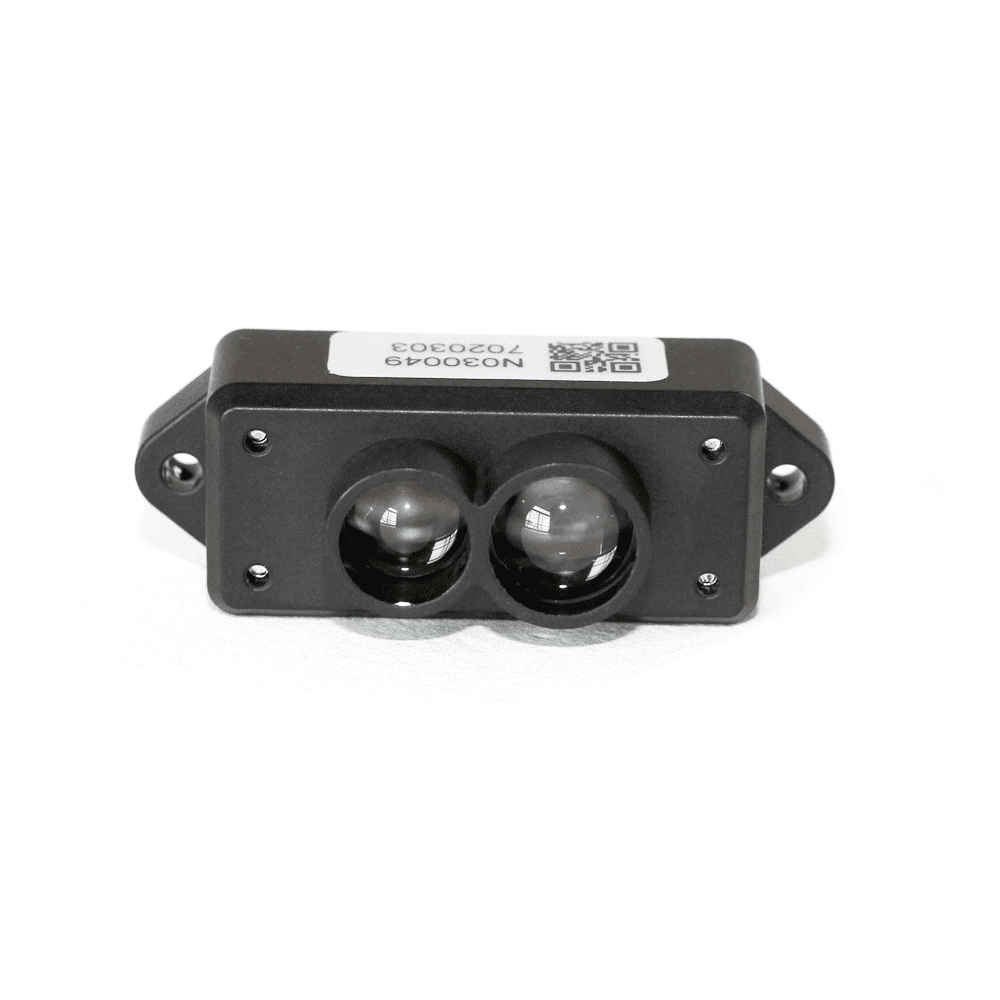

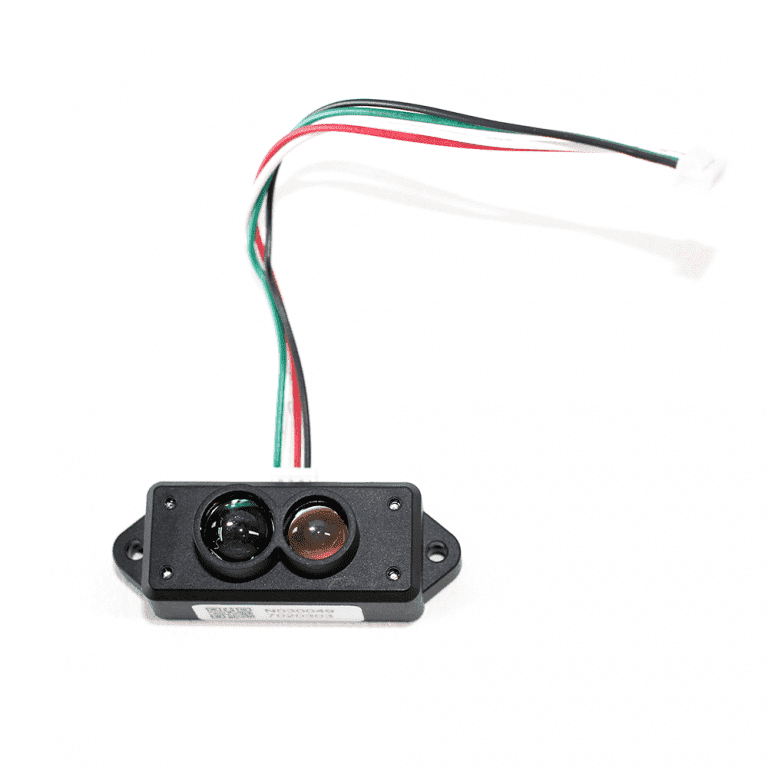

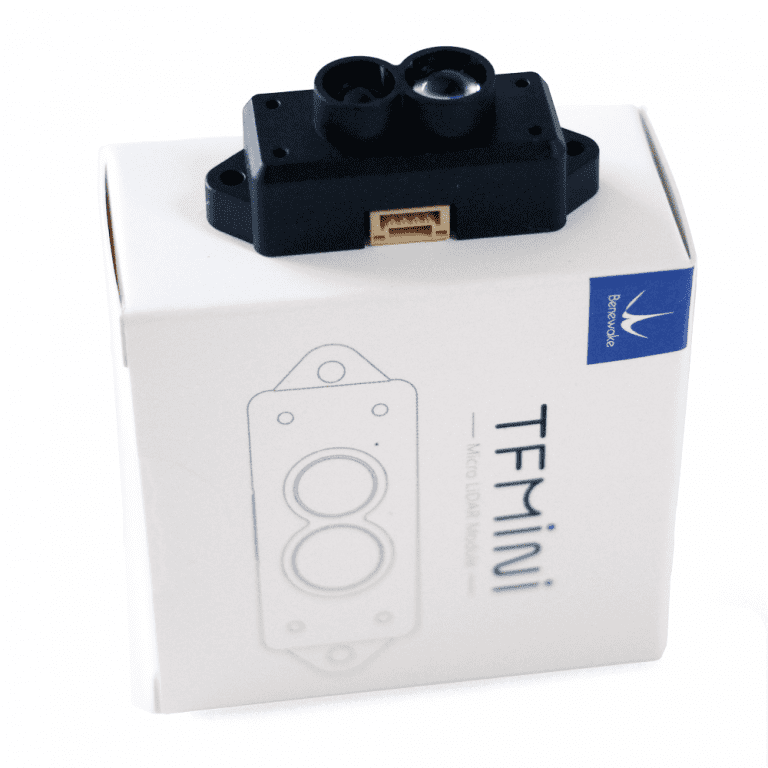

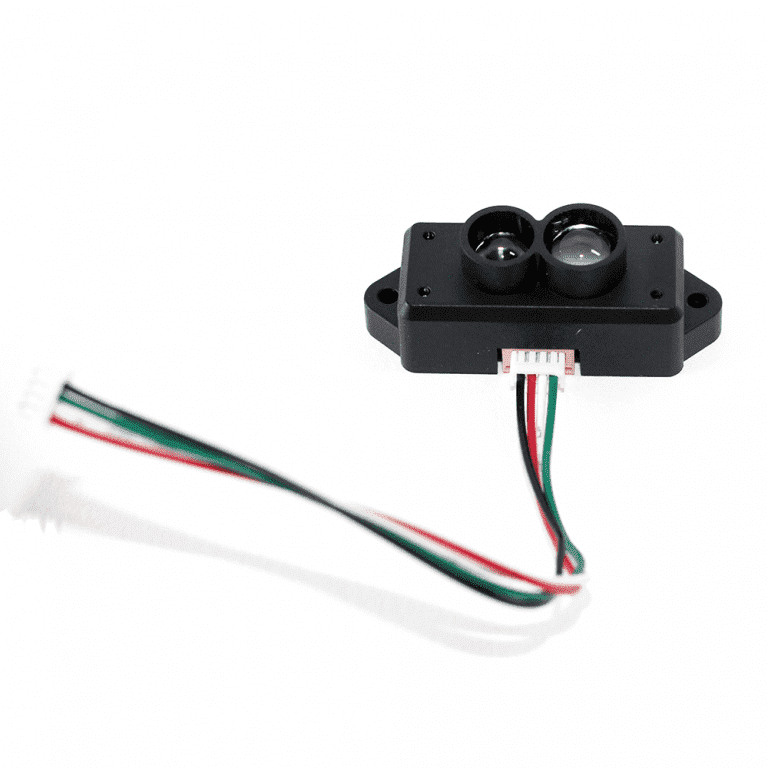

TFMiNi micro LiDAR Sensor Module
The TFMini micro LiDAR distance sensor module for drones UAV UAS robots (12m) Laser Range Finder sensor has its unique optical, structural, and electronic designs, the product possesses 3 major advantages, low cost, tiny volume and low power consumption. The sensor has built-in algorithm adapted to indoor and outdoor environments can guarantee an excellent ranging performance at a low cost and in a tiny volume, which highly expands the application fields and scenarios of LiDAR and lays a solid foundation for future “eyes” in the smart era.
Note: This product does not use laser light for ranging. Instead it contains an LED and optics. Many such systems are being marketed under the name "LiDAR," although it may be more appropriate to think of this device as a "Time-of-Flight Infrared Rangefinder". It differs significantly from traditional IR rangefinders in that it uses ToF to determine range and not triangulation

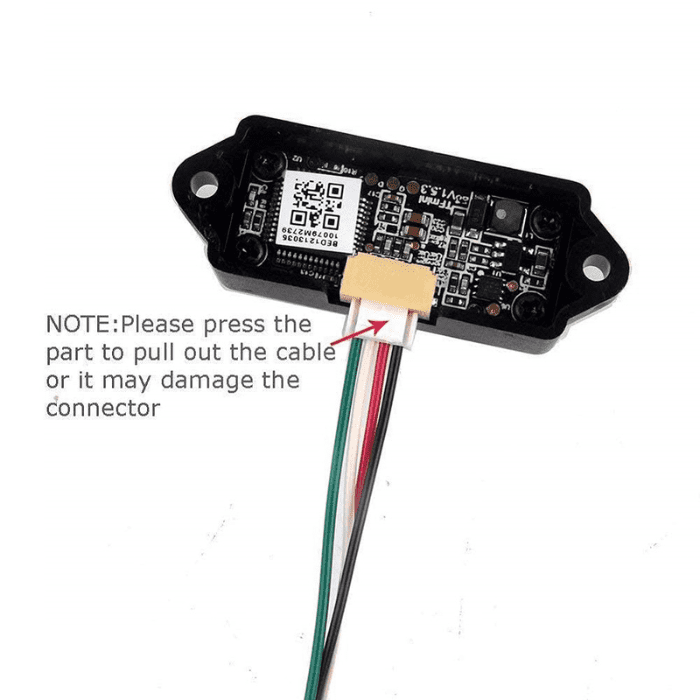

Connection:
Applications:
- Unidirectional ranging LiDAR. Obstacle avoidance. Assisted landing.
- Terrain following.
- Robots outdoor obstacle avoidance.
- Intelligent parking. Crane operations.
- Vehicle position sensing.
- Vehicle detection for barrier gate control.
Package Includes :
- 1 x TF Mini LiDAR Distance sensor.
- 1 x Extension cable.
Specifications
Operating Range | 0.3 - 12m |
Average Power Consumption | 0.12W |
Resolution | 1cm |
Operating Voltage | 4.5 - 6V DC |
Acceptance Angle | 2.3° |
Frequency Range | 100Hz |
Wavelength | 850nm |
Dimensions | 3 x 2 x 1cm |
Weight | 15gm |
