Description

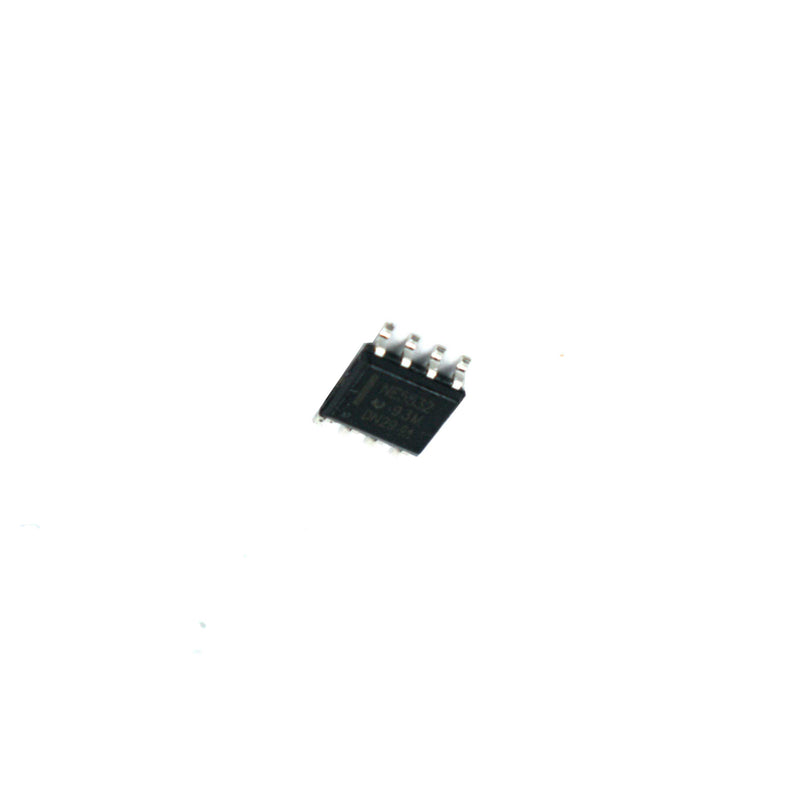

The STMicroelectronics NE5532 is a dual low-noise operational amplifier. The NE5532 device is a high-performance operational amplifier combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain, and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
Features:
- Equivalent Input Noise Voltage:
5 nV/√Hz Typ at 1 kHz - Unity-Gain Bandwidth: 10 MHz Typ
- Common-Mode Rejection Ratio: 100 dB Typ
- High DC Voltage Gain: 100 V/mV Typ
- Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω
- High Slew Rate: 9 V/μs Typ
Applications
- AV receiver
- Embedded PCs
- Multichannel Video Transcoders
Specification
| Model | NE5532 |
| Brand |
Texas Instrument |
| Mounting Type | SMD |
| No. of pins | 8 |
| Package | SO-8 |
| GBW (Typ) | 10Mhz |
| No. of Channel | 2 |
| Slew rate (Typ) | 9V/us |
| Operating temperature range | 0 to 70 degrees C |
| Country of Origin | China |
