Description

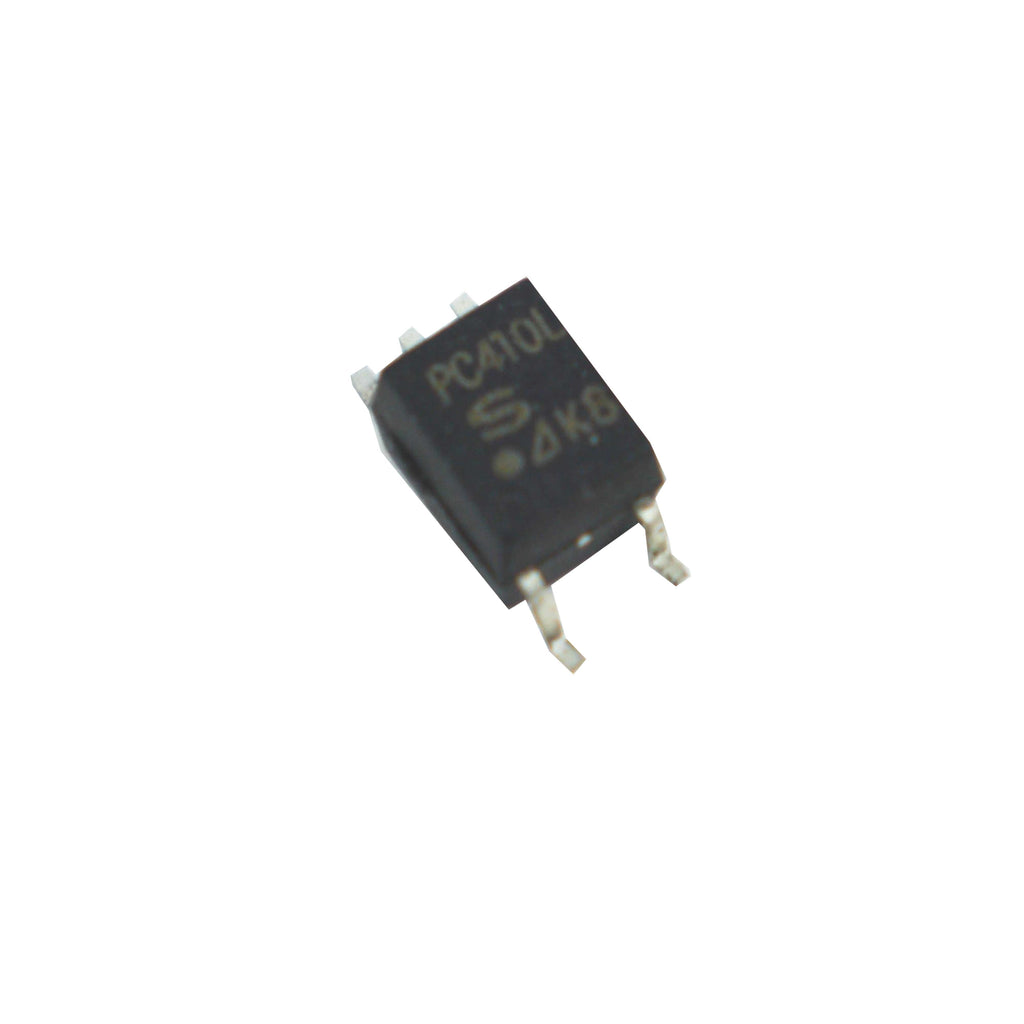

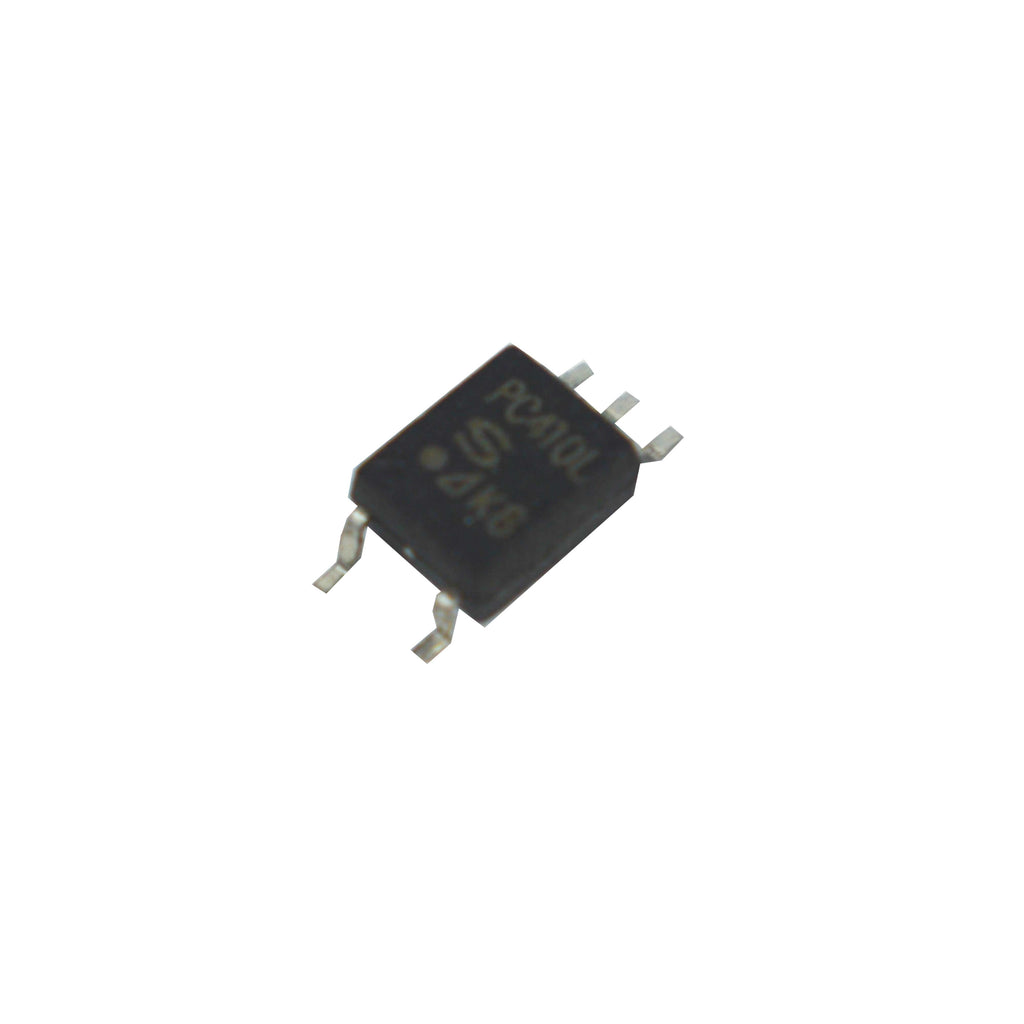

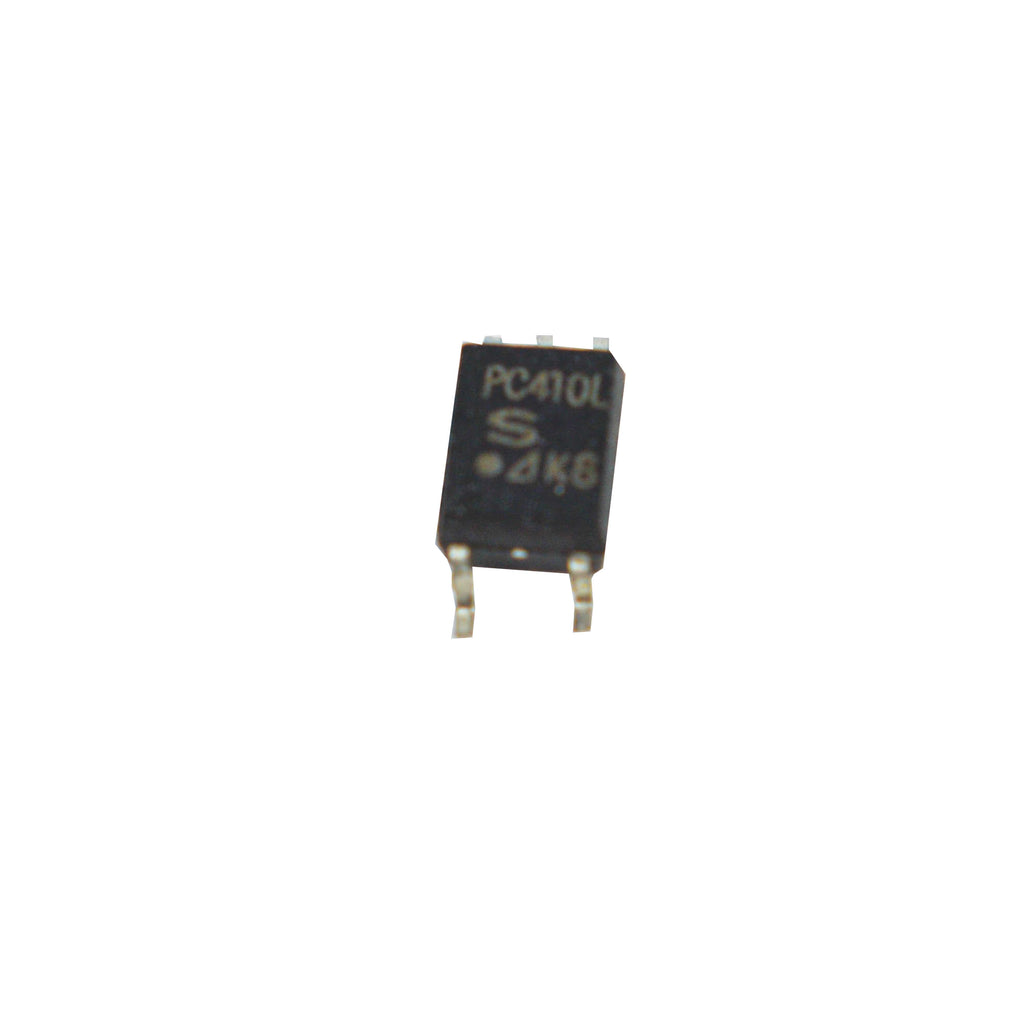

This is the PC410 Optocoupler manufactured by Toshiba. A photocoupler or optocoupler is an electronic component that is used to transmit analog or digital information (electrical signals) between two isolated, different circuits by using light while maintaining the electrical isolation of potentials up to 2500 times RMS Voltage. The 'OPIC' or Optical IC consists of a light detecting element (a phototransistor) and a signal processing circuit (an LED) integrated onto a single chip.
Features
- Compact, mini flat package, surface mount
- Ultra-high-speed response
- Isolation voltage between input and output
- Instantaneous common mode rejection voltage
Applications
- Used as a switching device
- Personal computers, office computers, and peripheral equipment
- Electronic musical instruments and audio equipment
For more information, refer to Datasheet
Specifications
| Model | PC410 |
| Brand | TOSHIBA/SHARP |
| Isolation Voltage | 2500 Vrms |
| Output Supply Voltage | 7V |
| Input Reverse Voltage | 5V |
| Input Forward Current | 20 mA |
| Input Power Dissipation | 40 mW |
| Output Collector Power Dissipation | 85 mW |
| Operating Temperature | 0°C - 70°C |
| Storage Temperature | -40°C - 125°C |
| Package | DIP |
| Country of Origin | China |
