Description

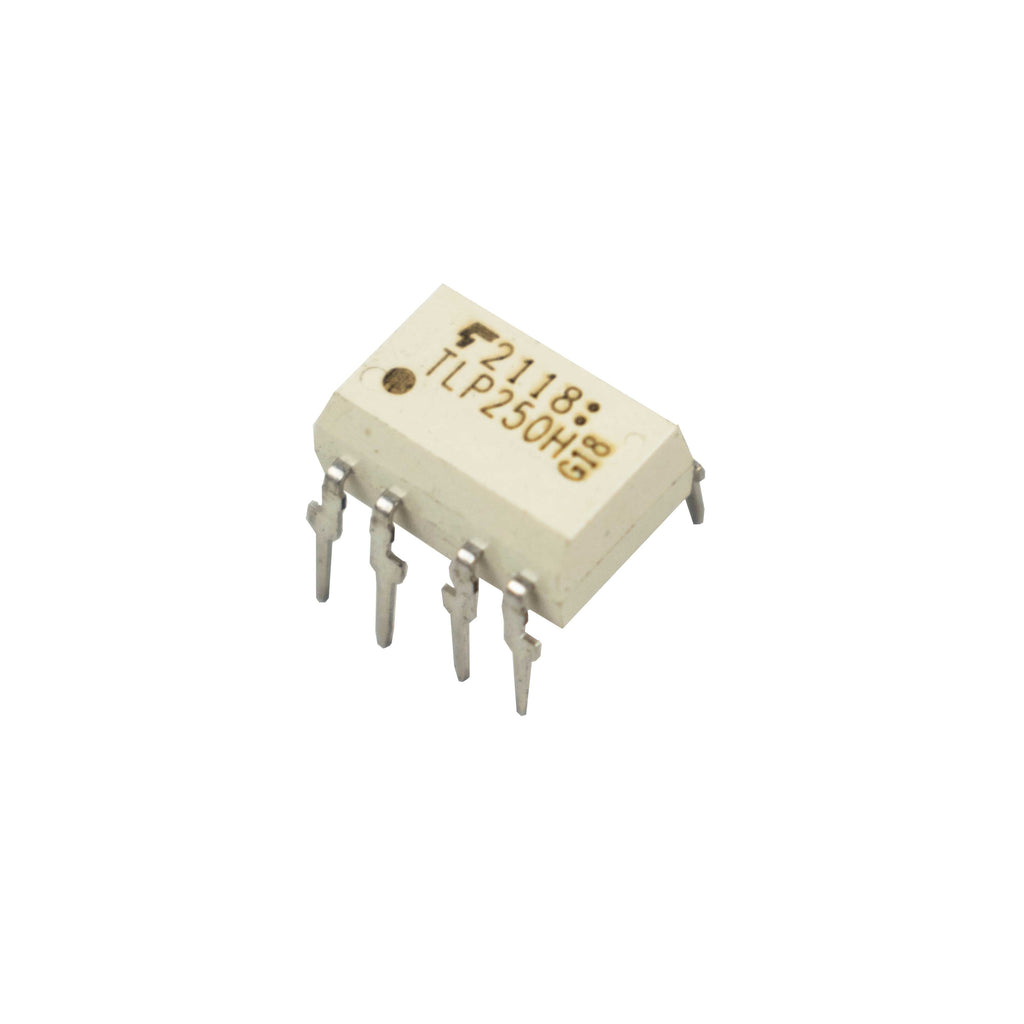

The TLP250H is a photocoupler in a DIP8 package that consists of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125 . The TLP250H has an internal Faraday shield that provides a guaranteed Common-mode transient immunity of ±40 kV/ µs. It has a totem-pole output that can both sink and source current. The TLP250H is ideal for IGBT and power MOSFET gate drive.
Features
- Buffer logic type (totem pole output)
- Output peak current: ±2.5 A (max)
- Operating temperature: -40°C to 125°C
- Supply current: 3 mA (max)
- Supply voltage: 10 to 30 V
- Threshold input current: 5 mA (max)
- Propagation delay time: 500 ns (max)
- Common-mode transient immunity: ±40 kV/µs (min)
- Isolation voltage: 3750 Vrms (min)
TLP250H IC Datasheet
Specifications
| Model | TLP250H |
| Brand | TOSHIBA |
| Package | DIP-8 |
| Forward Current | 20mA |
| Input Power Dissipation | 40mW |
| Output Power Dissipation | 260mW |
| Operating Temperature | -40°C to 125°C |
| Quantity | 100 |
| Country of Origin | China |
