Description

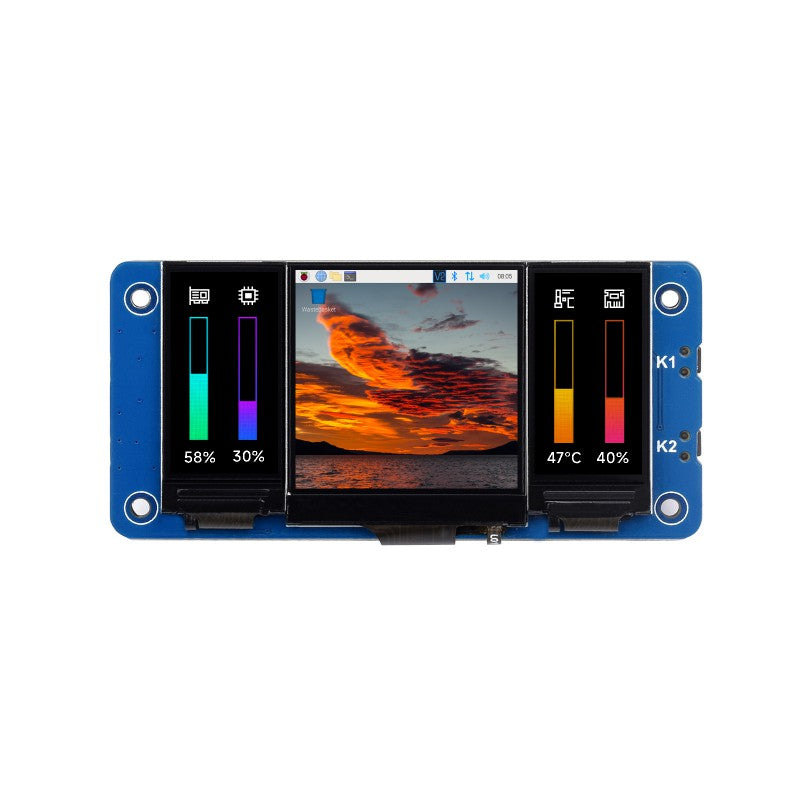

Dual 0.96inch LCD Secondary Screens
Using SPI Communication, Supports 65K Color Display, Can Be Used To Display Key
Information, Status Indicator Messages Or Small Graphics

Features

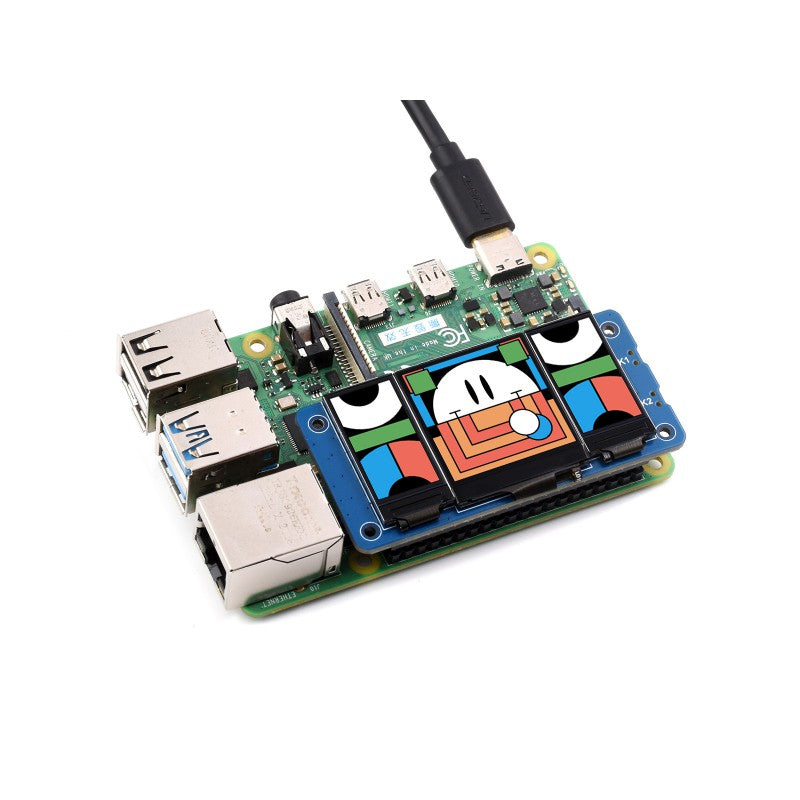

- Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards

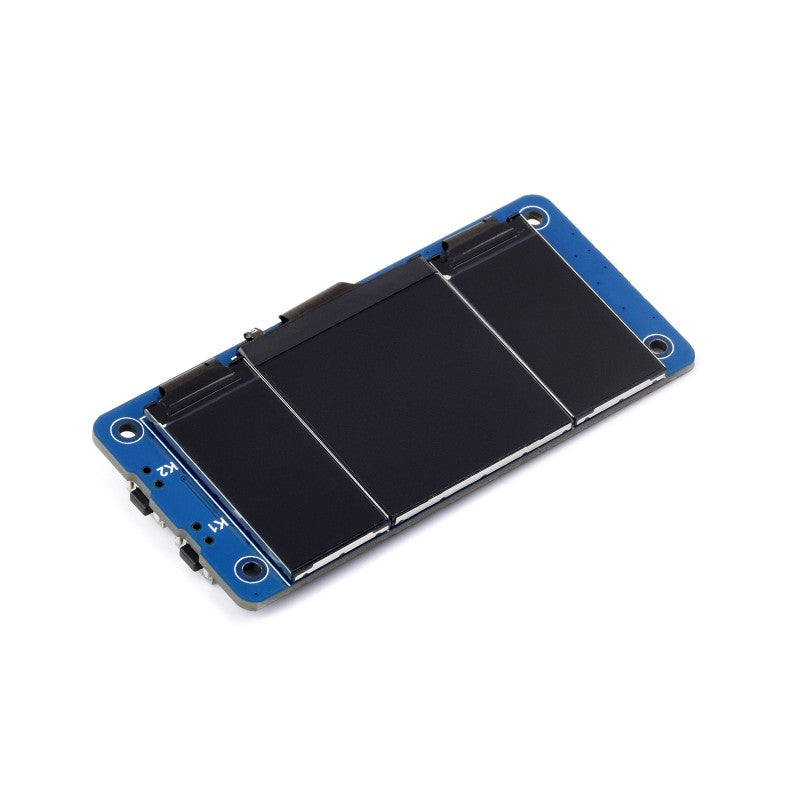

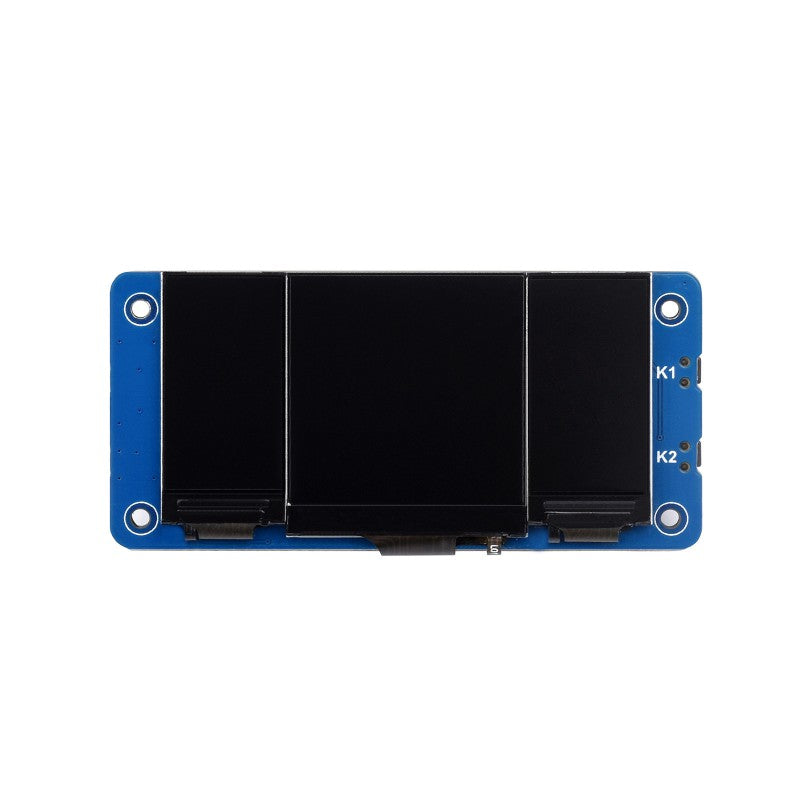

- 1.3inch IPS LCD Main Screen with built in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K color display, 240×240 resolution
- Dual 0.96inch LCD secondary screens with built in ST7735S driver chip, SPI interface communication, supports 65K color display, 160×80 resolution, can be used to display key informations, status indicator messages or small graphics
- Onboard 2x user-defined keys for extended applications
- Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)

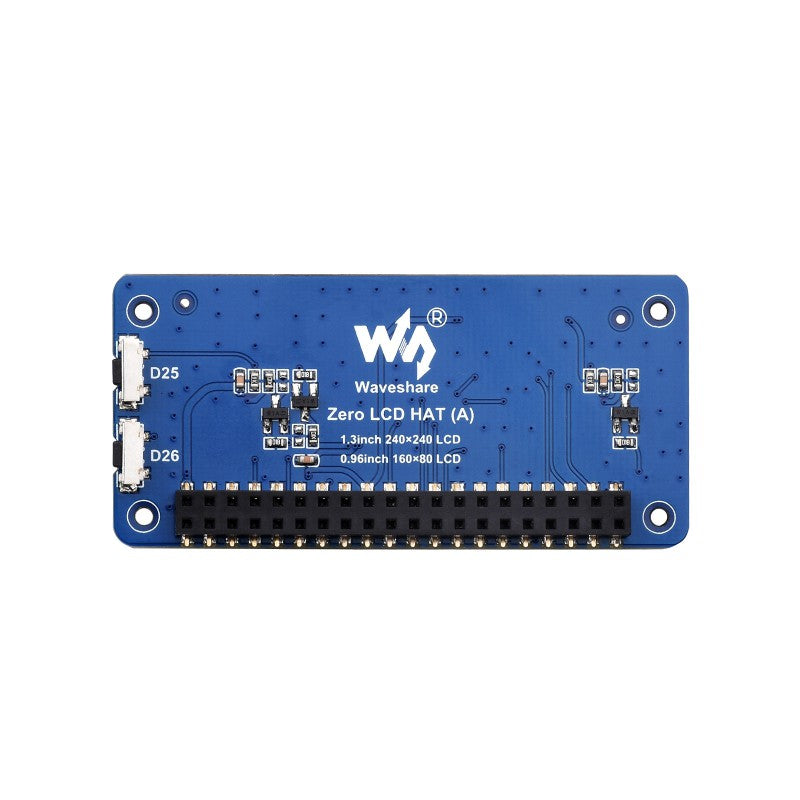

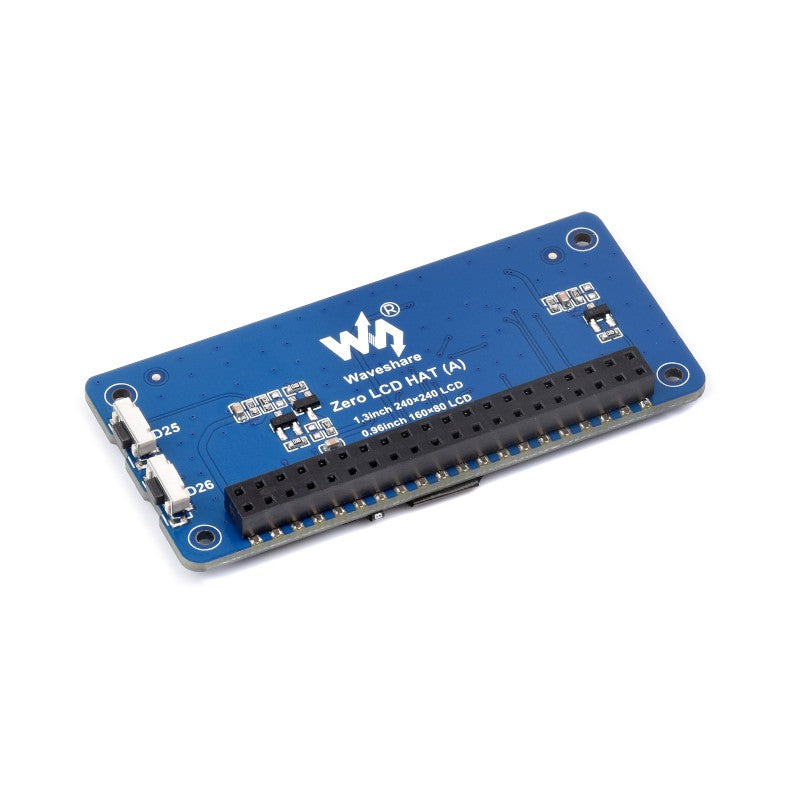

Onboard 2x User-Defined Keys
Supports Customizing The Key Function, Easy To Use

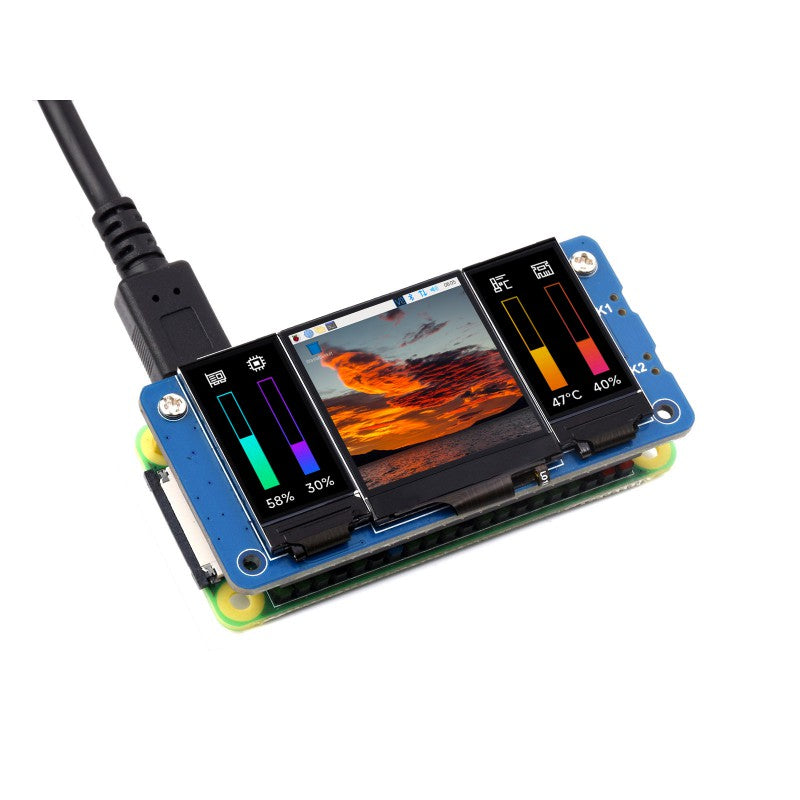

Application Scenarios

Pin Definition

Outline Dimensions

Resources & Services
Wiki: www.waveshare.com/wiki/OLED/Zero_LCD_HAT_(A)
Package Contains:
Weight: 0.017 kg
