Description

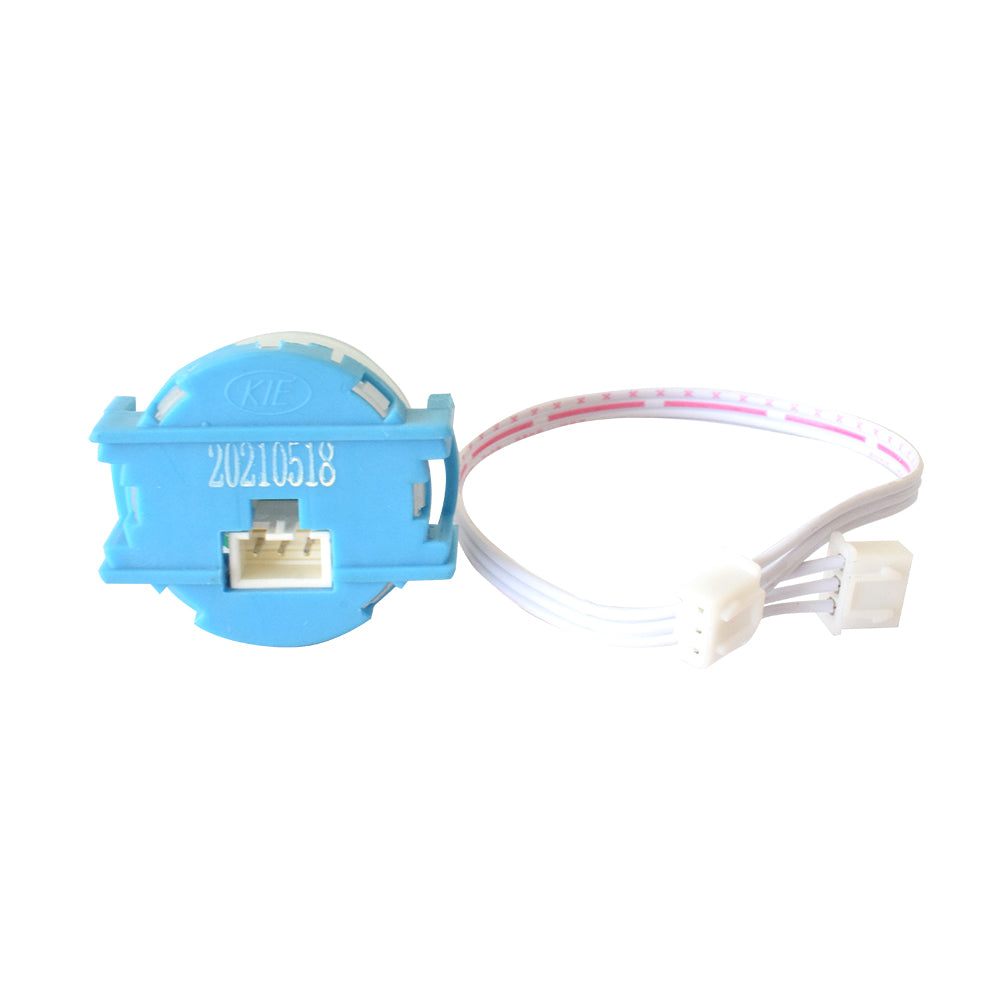

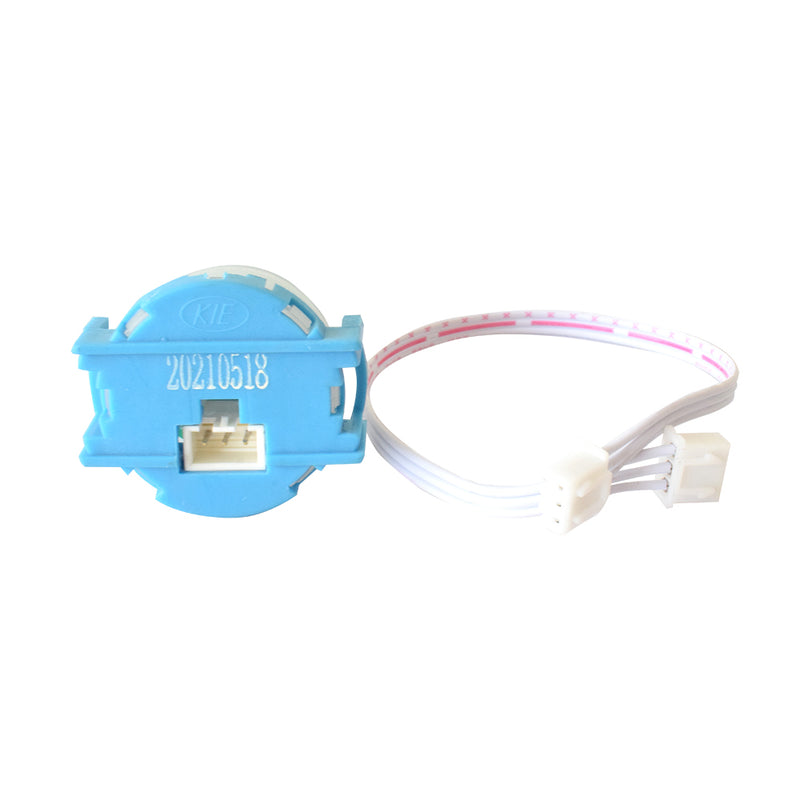

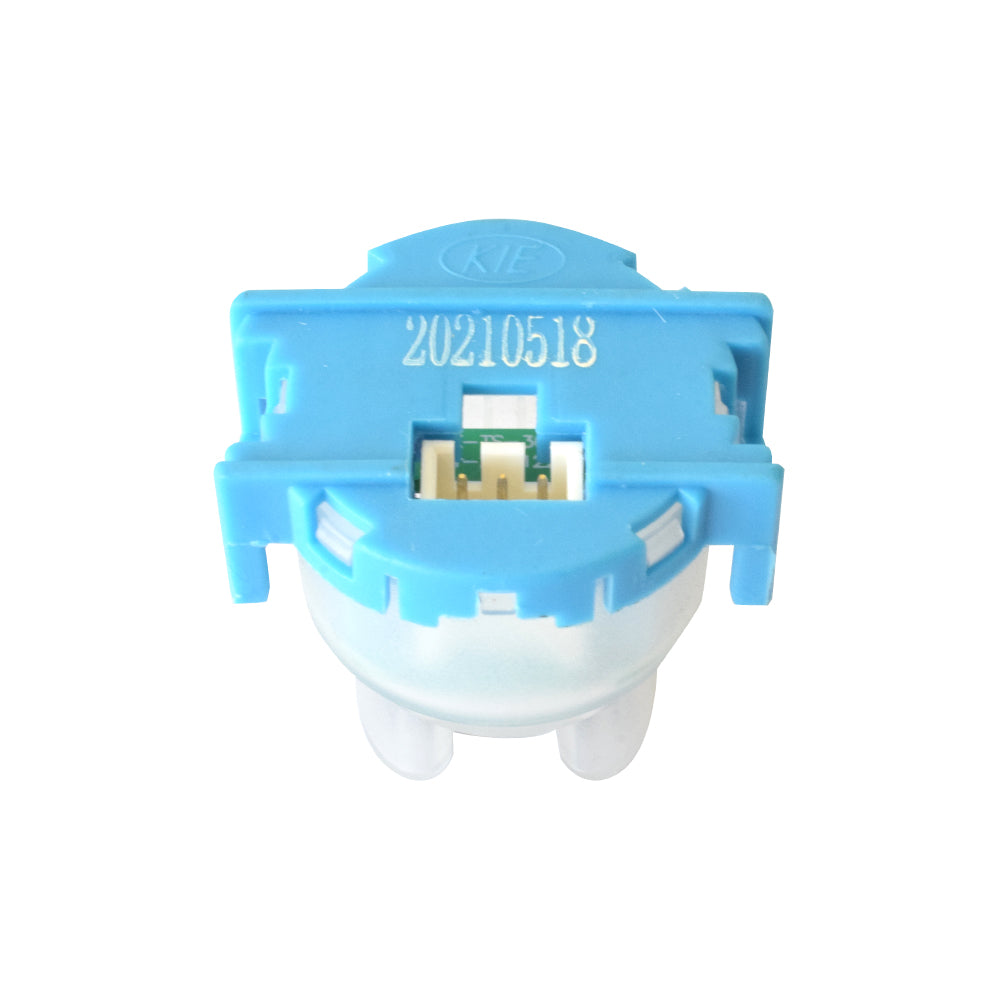

Its a turbidity sensor its used to sense the particles in water. Its used to measure and the detect of the liquid particles in water like Suspended particles, Dirt, Dust, Algae etc. Its works by the shining of the light when light falls on water and if there is any suspended particle in the water then the particle will absorb/Scattered more lights in compare to water molecules by this it calculate the turbidity of water. It has female to female Connector Wire By which we can connect it to the microcontroller Board. Its version is 2.0_1227K.
Features:
- Its colour is Sky-Blue and White
- Its operating Voltage is 3.3-5VDC
- Its measuring Range is 0-1000NTU
- AO: analog signal output, output voltage range 0~5V
- DO: digital signal output is less than the set value and outputs high level; greater than the set value and outputs low level
- GND: negative supply voltage
Specification
| Model | TS-300B |
| Length of The Wire | 20cm |
| Working Voltage | 5V |
| Working Current | 40mA |
| Response Time | 500mS |
| Insulation Resistance | 100MOhm |
| Operating temperature | -20℃~90℃ |
| Dimensions | 35mmx34mm |
| Colour | Sky-Blue and White |
| Country of Origin | China |
