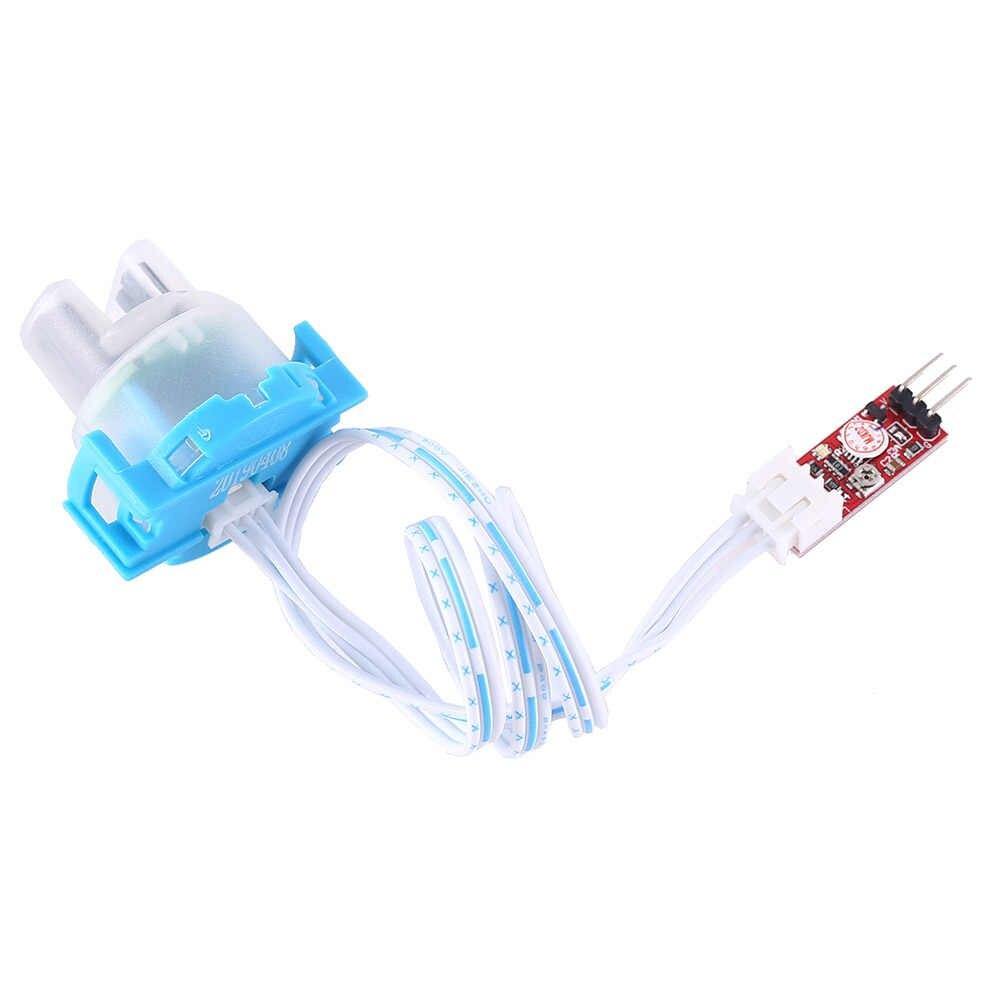

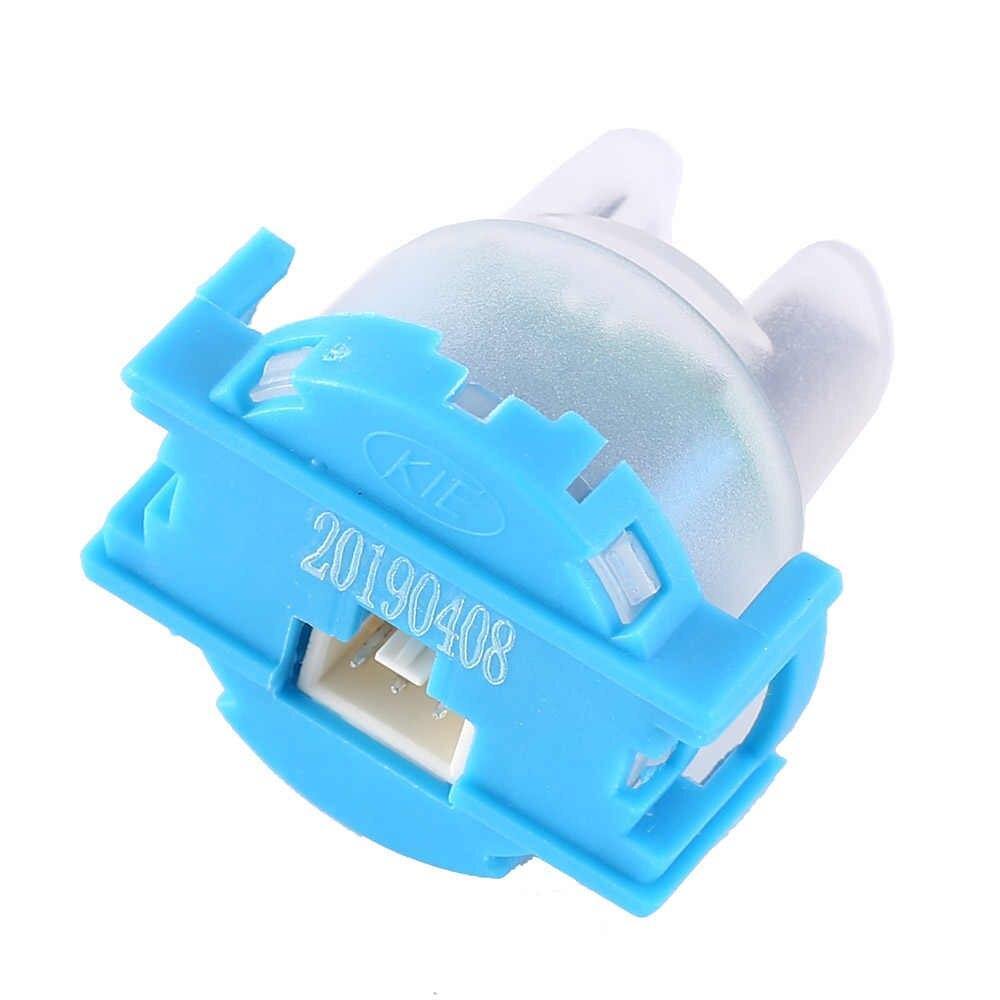

Turbidity Sensor With Module for Liquid Particle Detection

A turbidity liquid particle detection sensor is a device that is used to measure the turbidity, or cloudiness, of a liquid. Turbidity is often used as an indication of the presence of suspended particles in the liquid, such as dirt, algae, or bacteria.

The sensor works by shining a light through the liquid and measuring the amount of light that is scattered or absorbed by the particle detection.

Turbidity is the measurement of particulate matter in water. It requires the analog port of the MCU to read the analog value for calculation. It needs turbidity calibration liquid to calibrate. It is not the multimeter that directly measures the voltage.

The output voltage of each module is different. The module should be protected from light and light. The temperature and voltage will make the output voltage of the module different.

These decisions are made on the basis of a comparison between clean water measurements (taken at the beginning of the wash cycle) and the wash water turbidity measurement taken at the end of each wash cycle.

By measuring the turbidity of the wash water, the dishwasher can conserve energy on lightly soiled loads by only washing as long as necessary. This will result in energy savings for the consumer.

Parameters of the Turbidity Particle Sensor:

  • Voltage: 3.3-5V (with anti-reverse circuit)

  • Output: default analog (can set high and low output)

  • Measuring range: 0-1000 NTU

Key Features:

  • Turbidity can be measured in the range of 0 to 1000 Nephelometric Turbidity Units (NTU).
  • Operates at 3.3-5V and has built-in anti-reverse circuitry for safety.
  • The operating temperature range is from -20°C to 80°C.
  • Uses light scattering or absorption to estimate the presence of suspended particles in liquids.
  • Used in various applications such as water quality monitoring, environmental monitoring, and industrial processes.

Turbidity Liquid Particle Detection Sensor Pin Diagram:

Turbidity Liquid Particle Detection Sensor Pin Diagram:

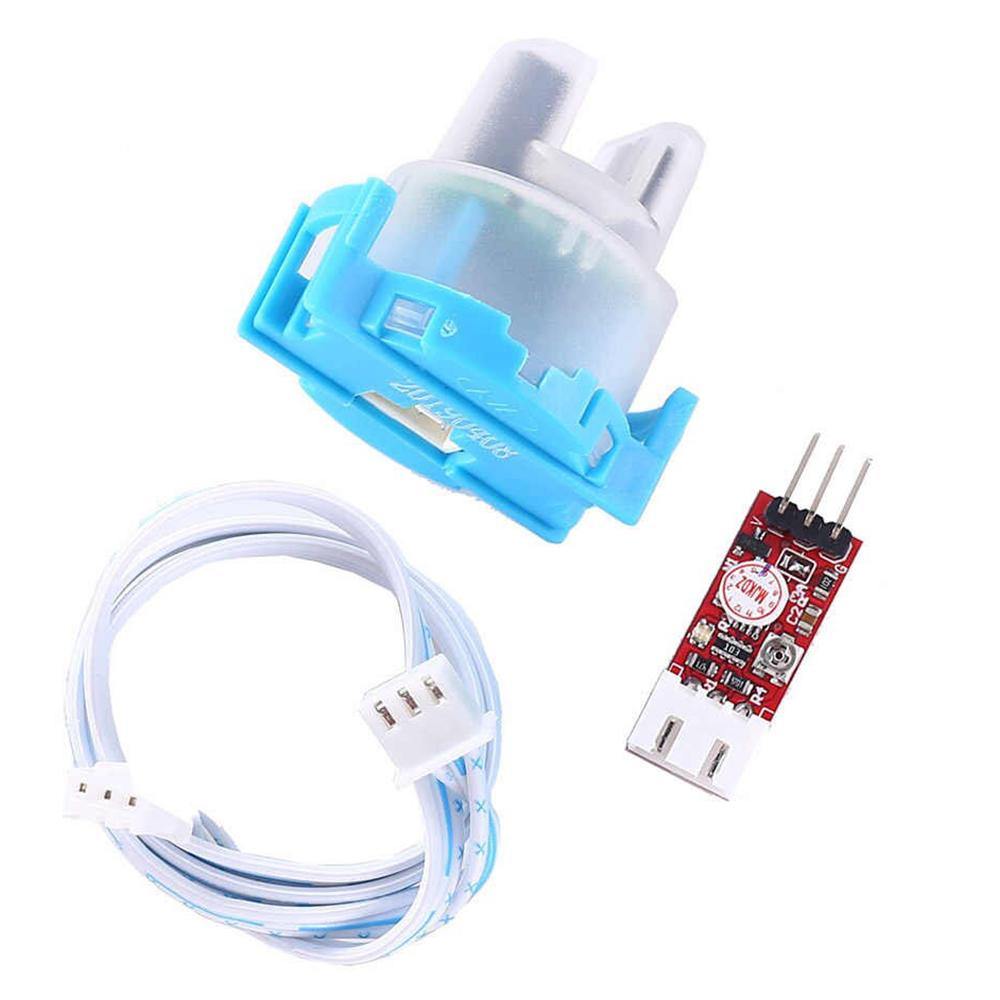

Package Includes:

  • 1 x Turbidity Sensor With Module

Specifications:

Type Logic ICs
Operating Temperature -20~80 celsius
Supply Voltage  3.3-5V
Dimensions  5 x 5 x 5cms
Weight 35 grams
