Description

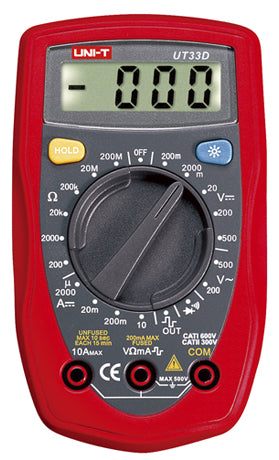

UNI-T UT33D Multimeter
While there are many other items of test equipment that are available, the multimeter is able to provide excellent readings of the basic measurements of amps, volts and ohms.Features:
- Measurement Functions: AC/DC voltage, DC current, resistance, diode, and continuity testing.
- Non-Contact Voltage Detection (NCV): Allows for safe detection of live wires without direct contact.
- Display: Clear LCD display for easy reading.
- Design: Compact and lightweight, making it portable and easy to handle.
- Safety: Designed to work safely in CAT II 600V environments.
- Durability: Can withstand a 2-meter drop.
- Additional Features: Loud buzzer for continuity testing and a protective cover with a test lead hanging groove.
Applications:
- Electronics: Ideal for testing and troubleshooting electronic circuits, components, and devices.
- Automotive: Useful for diagnosing electrical issues in vehicles, measuring battery voltage, and testing sensors.
- Home Maintenance: Handy for homeowners and DIY enthusiasts working on electrical projects around the home.
- Educational: Great for teaching students about electrical measurements and circuit analysis.
- Industrial: Suitable for maintenance and troubleshooting in industrial environments.
- HVAC: Useful for heating, ventilation, and air conditioning technicians to measure electrical parameters.
Package Includes:
- 1 x UNI-T UT33D Multimeter
SPECIFICATIONS
| Basic Functions | Range | Best Accuracy | |||
|---|---|---|---|---|---|
| AC Voltage | 200V/500V | (1.2%+10) | |||
| DC Current | 2000mA/20mA/200mA/10A | (1%+2) | |||
| Resistance | 200W/2000W/20kW/200kW/20MW/200MW | (0.8%+2) | |||
| DC Voltage | 200mV/2000mV/20V/200V/500V | (0.5%+2) | |||
| Max. Display | 1999 | ||||
|
Input Impedance for DC Voltage Measurement |
Around 10MW | ||||
GENERAL CHARACTERISTICS
| Power | 9V Battery (6F22) |
| LCD Size | 48 x 16mm |
| Product Colour | Red and Grey |
| Product Net Weight | 156g |
| Product Size | 130 x 73.5 x 35mm |
| Standard Accessories | Test Lead, Battery, English Manual, Holster |
| Standard Individual Packing | Gift Box |
| Standard Quantity Per Carton | 60pcs |
| Standard Carton Measurement | 490 x 356 x 315mm (Around 0.055 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 18kg |
