Description

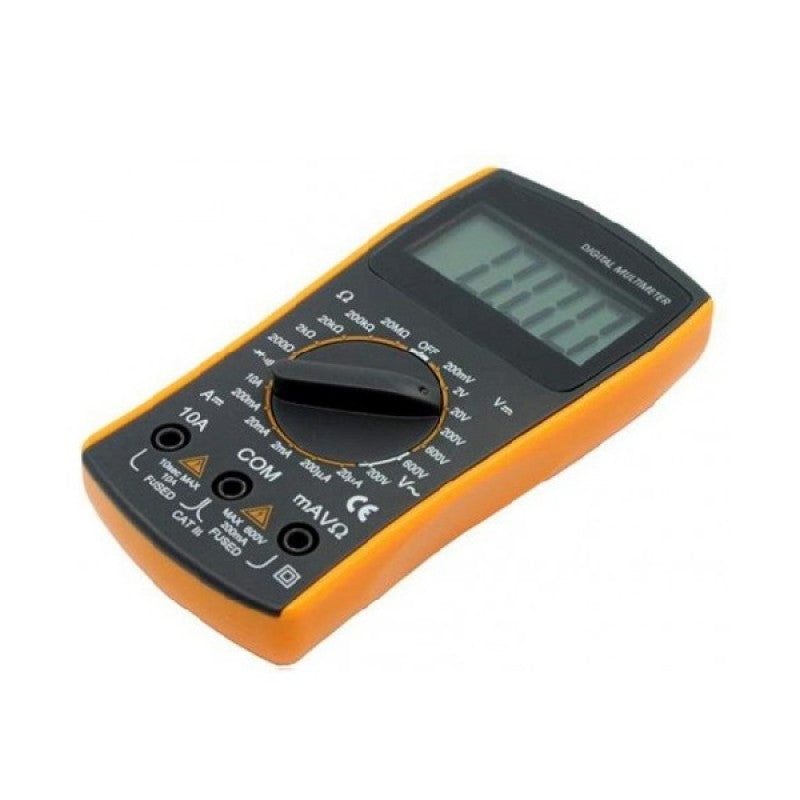

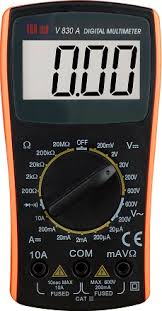

VAR Tech - V830A Multimeter
A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance. Analogue multimeters use a microammeter with a moving pointer to display readings.

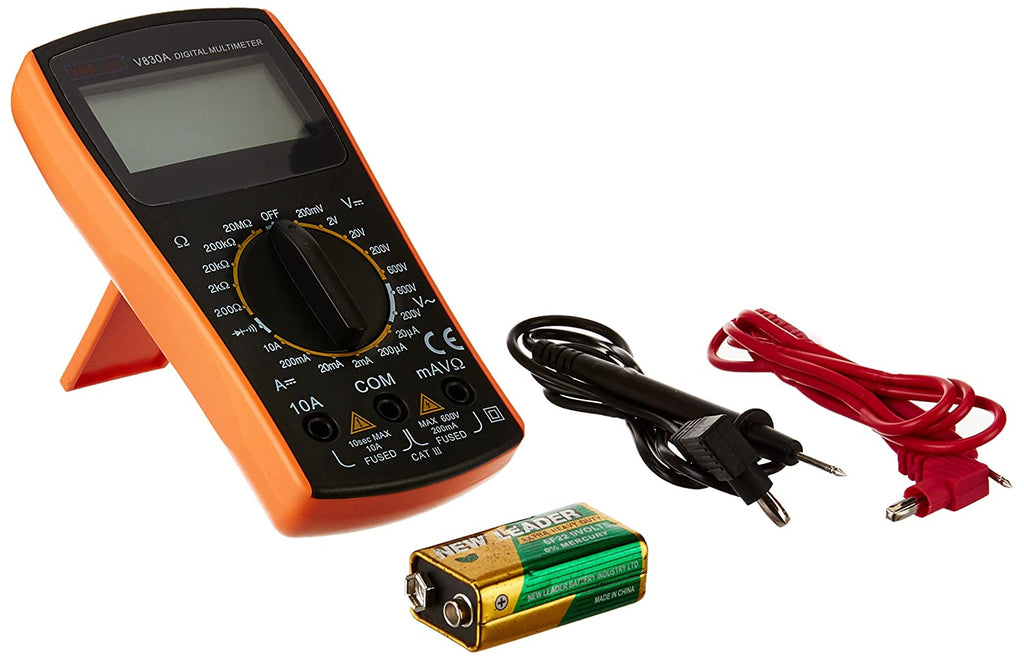

Package Includes:
- 1 x VAR Tech - V830A Multimeter
|
S P E C I F I C A T I O N S |
||
|
DC Voltage |
Range |
200 mV, 2 V, 20 V, 200 V, 600 V |
|
Basic Accuracy |
± (0.5 % reading + 4 digits) |
|
|
Input impedance |
1 M Ω |
|
|
AC Voltage
|
Range |
200 V, 600 V |
|
Basic Accuracy |
± (1.2 % rdg + 10 digits) |
|
|
Freq. Response |
40 ~ 200 Hz |
|
|
DC Current |
Range |
20 µA, 200 µA, 2 mA, 20 mA, 200 mA, 10 A |
|
Basic Accuracy |
± (1.5 % rdg + 3 digits) |
|
|
Resistance |
Range |
200 Ω, 2 K Ω, 20 K Ω, 200 K Ω, 20 M Ω |
|
Basic Accuracy |
± (0.8% rdg + 5 digits) |
|
|
Diode Test |
Available |
|
|
Continuity Beeper |
Available |
|
|
Power Source |
9 V (6F22) |
|
|
Accessories Supplied |
Test Leads, User Manual & Battery (Installed / Kept Aside). Holster Optional. |
|
|
Dimension & Weight |
145 x 85 x 30 mm & Approx. 170 gms. (Including Battery) |
|
