Description

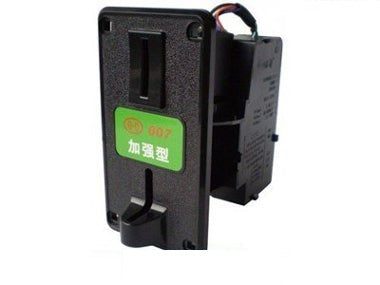

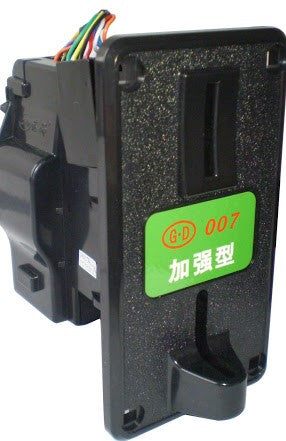

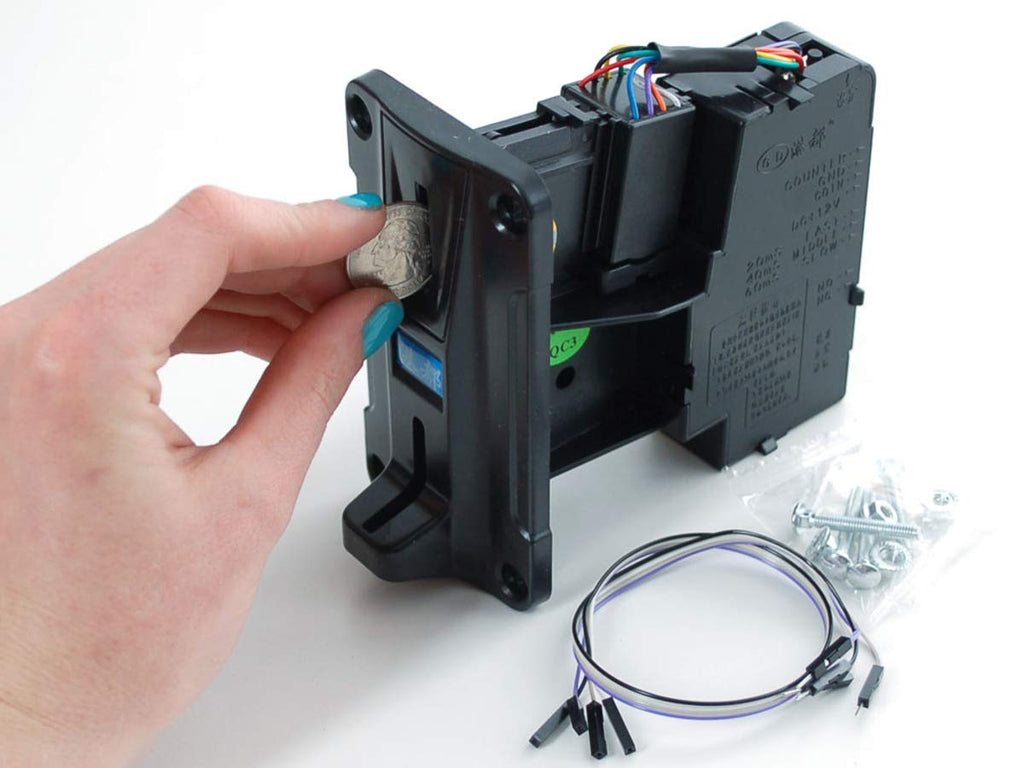

GD-007 Single Coin Acceptor

Coin acceptor modules accept currency coins which can be suitable for various vending machines. Coin acceptor modules are available in multiple categories including single coin acceptors, comparable type coin acceptors, multi-coin coin acceptors, etc. The Single coin acceptor is specially designed to accept only a specific coin. A comparable type of coin acceptor is used to accept the coins that are similar to the coins put aside the coin acceptor. Multi-coin coin acceptors can accept different coins with one machine, and output different signals to the microcontroller.

The coin-accepting sensor device has an inbuilt microcontroller that takes data from the sensor inside the device and collects different coins. Using this data, the microcontroller knows whether this coin needs to be accepted or returned. The device is easily programmed using a push button located on the top. The coin acceptor device gives us an impulse signal on the output pin for every inserted coin and by counting impulses we know how many coins have been inserted. It also has three switches which we use in order to select the type of signal we want to get on the output. The first switch has three positions to select the impulse length. The second switch is used to set the signal to be +5 V(NC) or 0 V(NO). Using the 3rd switch, the precision of the device can be chosen.

Applications:

  • Vending Machine

Also check BV30 Compact Bill Acceptor offered by Robocraze. It is designed for handling low-value transactions efficiently and securely. The bill acceptor has a compact design, making it suitable for use in vending machines, parking systems, and arcade games. It features enhanced sensing and security for accurate bill validation. The attractive bezel illumination comes in RGB options, providing an eye-catching display.

Package Includes:

  • 1 x GD-007 Single Coin Acceptor

Specifications:

Supply Voltage  DC+12V discrepancy 20%
Temperature -10Celsius degree ~ +60Celsius degree
Coin thickness 1.2 - 3mm
