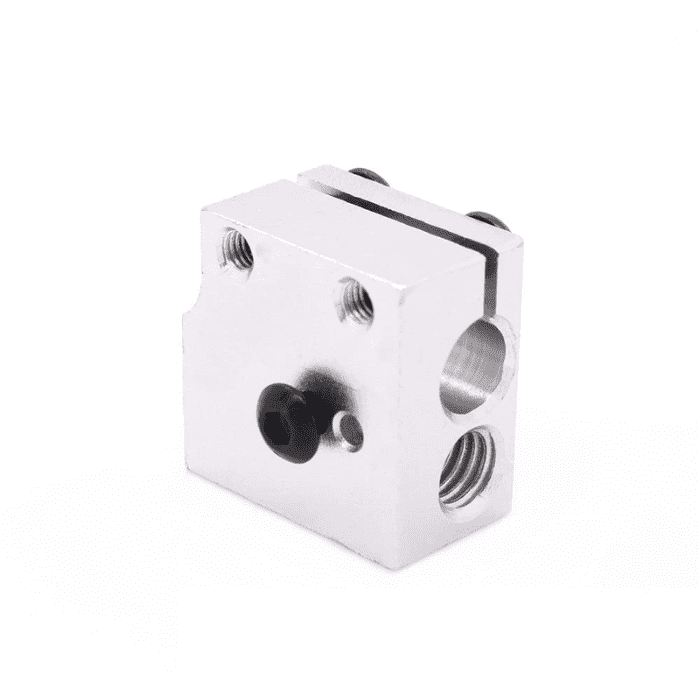

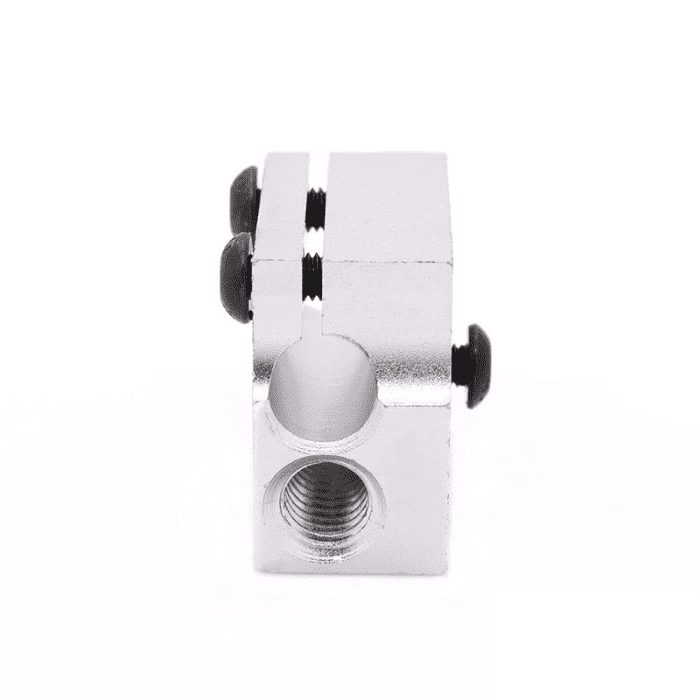

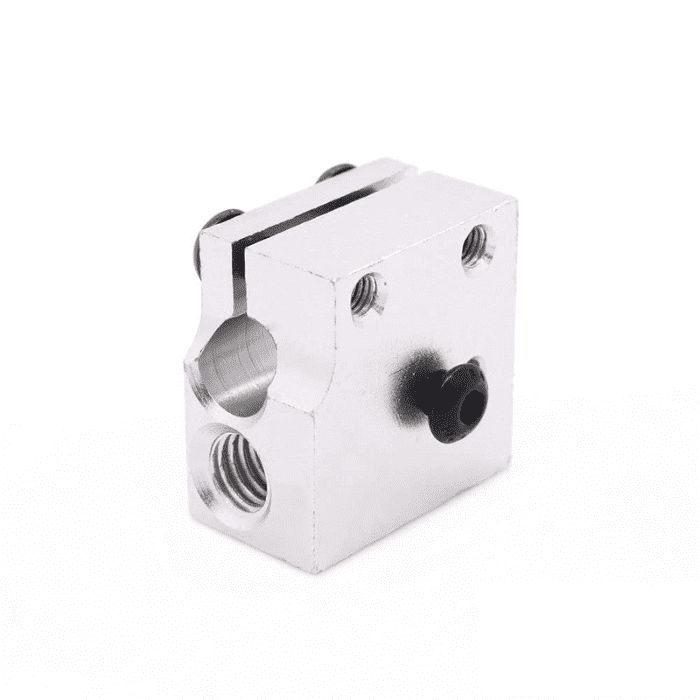

Volcano hot end Heater Block/Heating Block for 3D Printer
This is the specialised heater block for Volcano upgrade pack. Compatible with all Volcano Nozzles and all HotEnds except Cyclops. This block uses the same clamped thermistor mounting configuration as the E3D-v6 Heater Block for maximum ease of use and security. The block also has a heater cartridge clamping system for maximum heat transfer, this time using two screws for clamping instead of the one in E3D-v6. This block absolutely cannot be used with a non Volcano nozzle, plastic will go everywhere, please don't try.
Volcano uses the same thermistor, Heater Cartridge, fixings methods and procedures as E3D-v6 hotends . As such assembly of Volcano is essentially identical to that of the standard E3D-v6 block, the only notable difference is that there are two heater clamping screws, and the heater wires should exit through the top of the block.
Package Includes:
- 1 x Volcano hot end Heater Block/Heating Block for 3D Printer

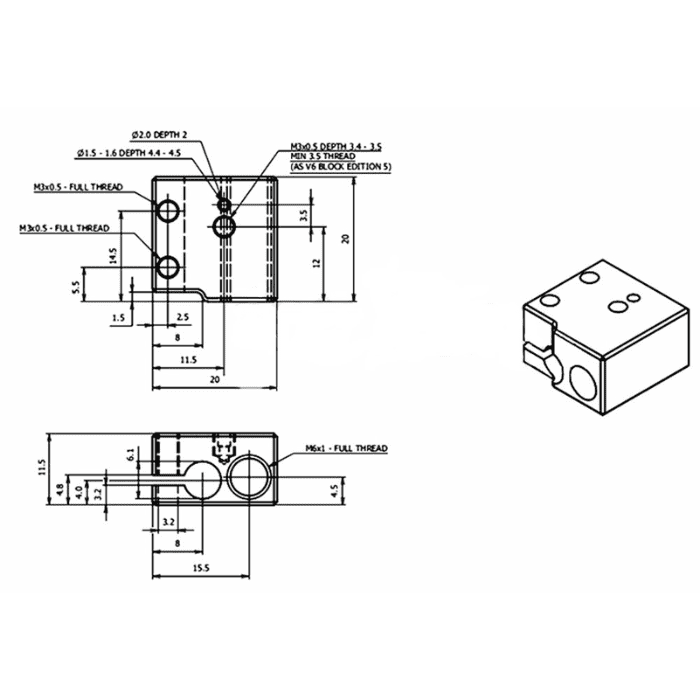

Specifications:
| Material | Aluminum Alloy |
| Threaded Tube Hole | M6 |
| Heater Mounting Hole (mm) | 6 |

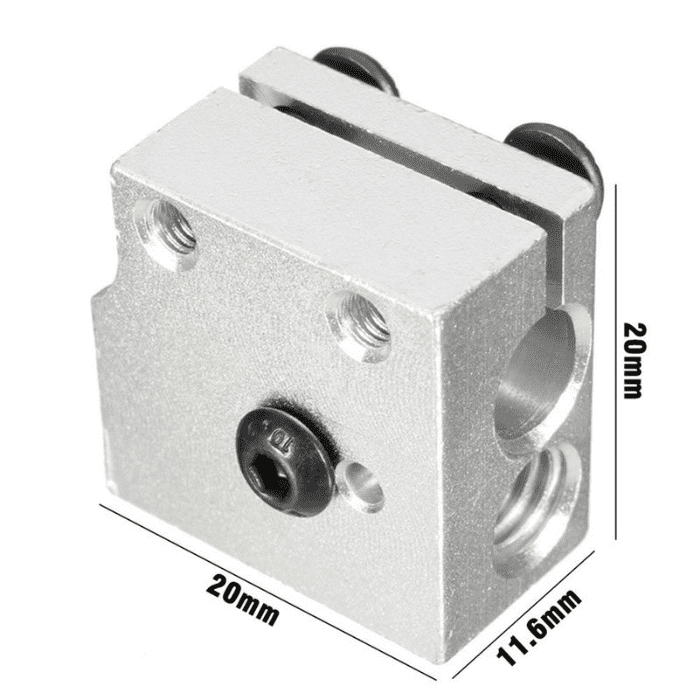

| Dimensions | 20mm x 20mm x 11.6mm |
