Description

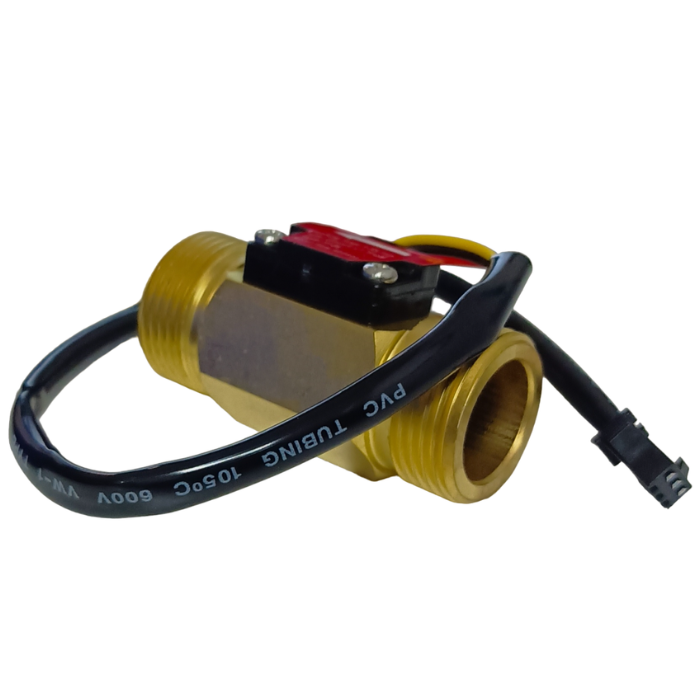

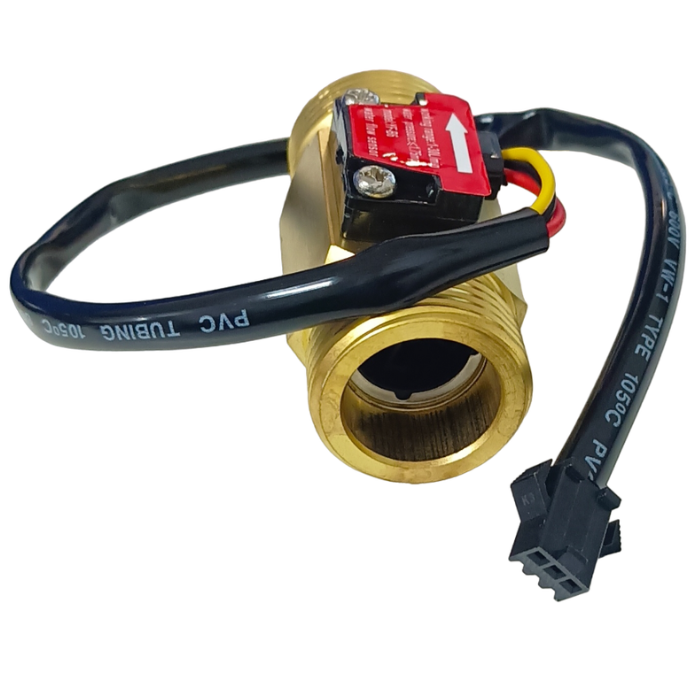

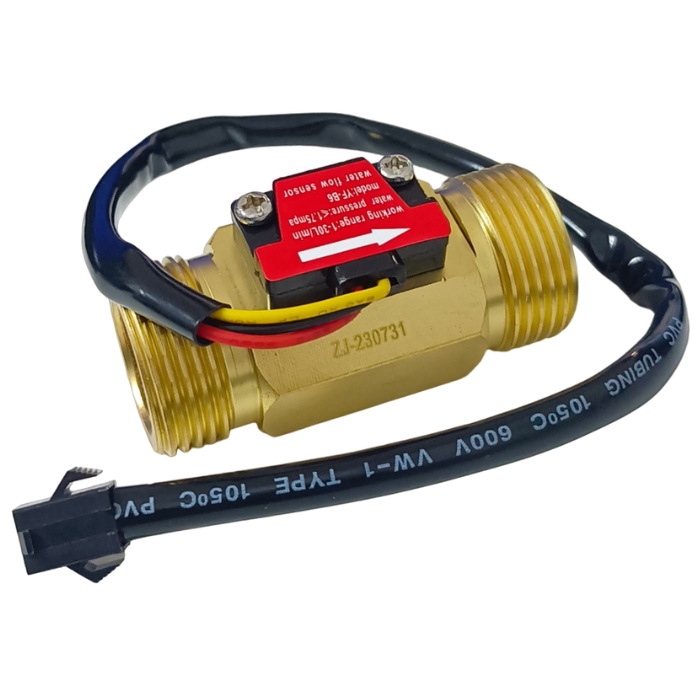

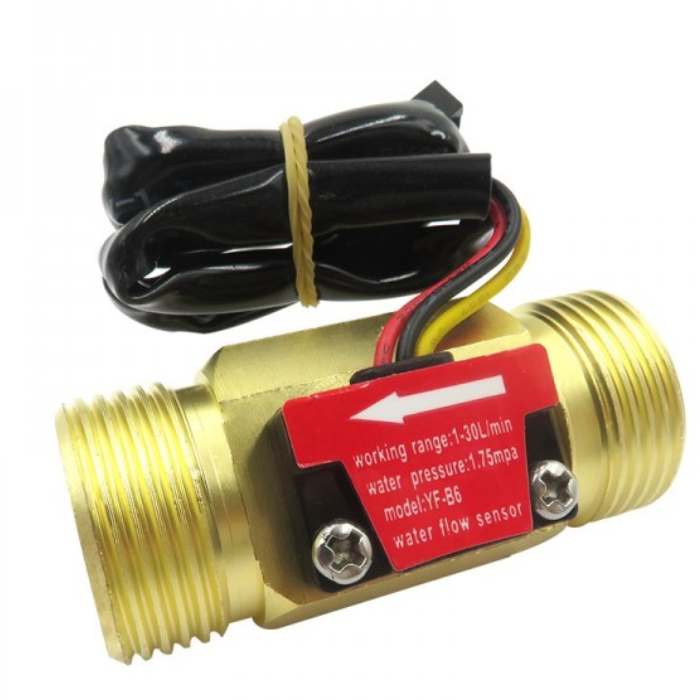

Water Flow Sensor - YF-B6 Flowmeter G3/4 1-30L/min 5-15V Brass
Water Flow Sensor (Sea) YF-B6 is the perfect solution for industrial monitoring and water management systems. It is made with brass and plastic materials, measuring 60X OD26mm and featuring a G3/4 thread connection.
The sensor includes a Hall effect sensor and digital output, ensuring accurate monitoring of flow rates. Its durable design makes it suitable for a wide range of conditions, perfect for industrial and commercial applications.
Water Flow Sensor (Sea) YF-B6 is easy to install and maintain with its compact design. Perfect for engineers, technicians, and hobbyists. Water Flow Sensor (Sea) YF-B6 ensures the highest quality and durability.
wire connection :
- Terminal 1 ( Red) : Vdd ” + ”
- Terminal 2 (Black) Vout ” – ”
- Terminal 3 ( Yellow ) Gnd : output
- (13) Connector : Housing SM2.54-3P
Package Includes:
- 1 x Water Flow Sensor - YF-B6 Flowmeter G3/4 1-30L/min 5-15V Brass
Specifications:
| Material | Brass Plastic Flow Sensor |
| Sensor | Hall effect sensor, Digital Output |

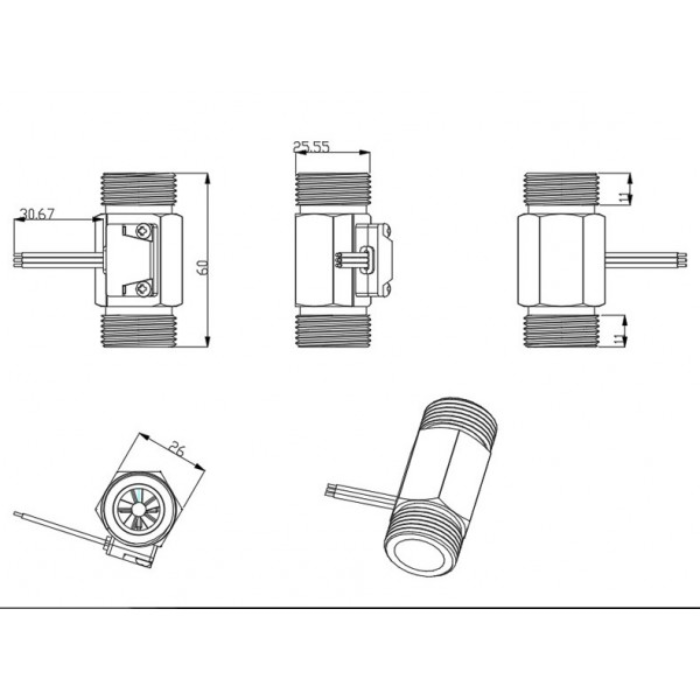

| Size | 60X OD26mm |
| Thread Connection | G3/4 |
| Mounting Position | Horizontal & Vertical |
| Color | Brass golden |
| Flow Rate | 1~30 L/min |
| Flow Pulse | F= 6.6 *Q ± 5%, Q=L/min |
| Working Voltage | DC4.5V ~ 24V |
| Working Current | 15mA |
| Suffering Pressure | Max 1.5Mpa |
| Working Temperature | -40 °C ~+80 °C |
| Min Insulation Resistance | 100M Ohm |
