Description

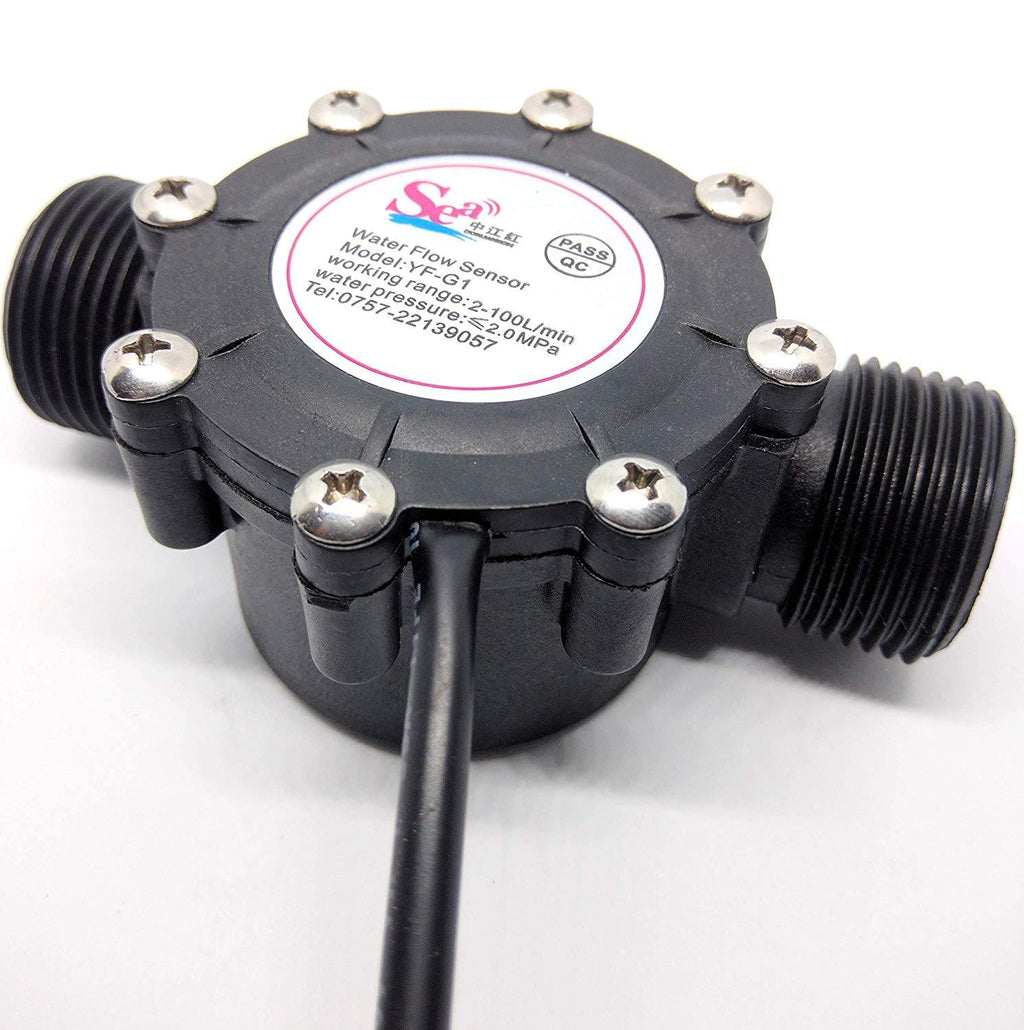

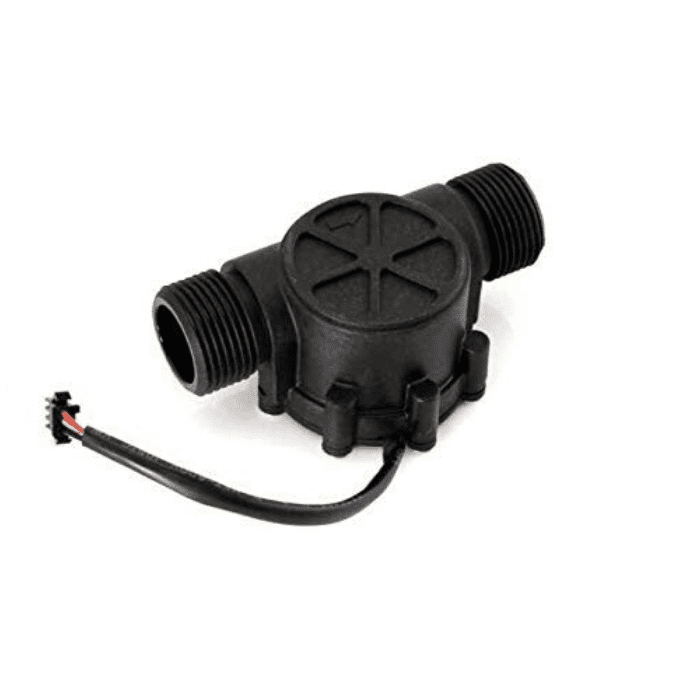

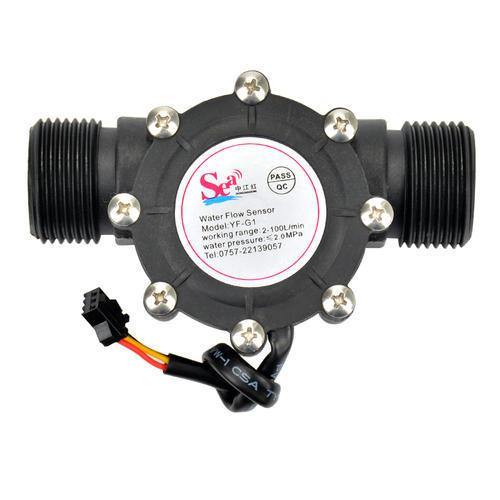

1 Inch Water Flow Sensor YF-G1 DN25
The YF-G1 water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device.
The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly, and a Hall sensor. It is installed on the water inlet end of the water heater to detect the water flow rate. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The device judges the size of the water flow and regulates it.
Precautions for Use:
- Severe impact and chemical erosion are strictly prohibited.
- Throwing or collision is strictly prohibited.
- The temperature of the medium should not exceed 120 degrees
- If the water quality is too bad, please add a filter at the water inlet.
- Do not use beyond the flow range
Applications:
- Water heaters
- Water vending machine
- Flow measurement device
- Automatic water dispenser
- Agriculture
- Food processing
- Coffee/Tea makers
- Water Management
read our blog explaining the rain sensor working principle, which provides information about raindrop sensors and their working principle.
Package Includes:
- 1 x Water Flow Sensor YF G1
Specifications:
| Sensor Type | Water Flow Sensor |
| Model | YF G1 Water Flow Sensor |
| Water pressure resistance | = >2MPa |
| Operating Temperature | -20~85C |
| Insulation resistance | >100MΩ |

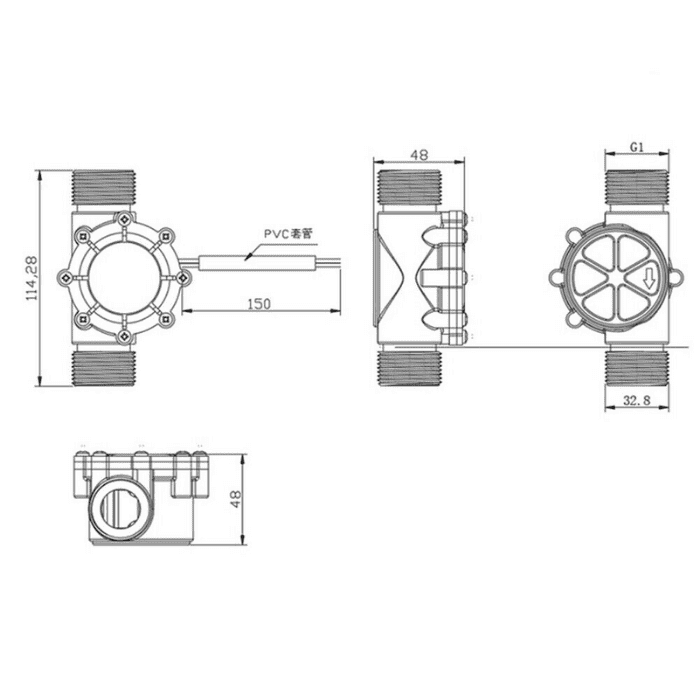

| Dimensions | 5 x 5 x 5 cms |
| Weight | 50 grams |
